CARE AND MAINTENANCE INSTRUCTIONS
In order to maximize life span, and minimize down time, all MATRIX equipment requires regular cleaning, and
maintenance items performed on a scheduled basis. This document contains detailed instructions on how to perform
these items, the frequency which they should be done, and a check list to sign off each time service is completed for a
specific machine. For more detailed instructions, service manuals are available for most models on our website at
www.matrixfitness.com. Some basic tools and supplies will be necessary to perform these tasks which include (but
may not be limited to):
Metric Allen wrenches
#2 Phillips head screwdriver
Adjustable wrench
Torque wrench (capability to read foot lbs, and inch lbs)
Lint free cleaning cloths
Teflon based spray lubricant (Super Lube Multi-Purpose recommended)
Mild, water soluble, detergent – such as "Simple Green", or other Matrix approved product
Teflon based synthetic grease lubricant such as "Super Lube", or other Matrix approved product
Vacuum cleaner w/extendable hose and crevasse tool attachment
This booklet is divided into two categories – Cardio items, and Strength items. Each category is then further divided
into a listing of individual machines that fall within their respective category. Please find the worksheets for any
machines you may have in your facility, and keep them up to date as the required service/maintenance items are
performed. It is critical that you also log the accumulated (total) amount of miles or running hours on the equipment
each time service or maintenance is performed.
You may periodically receive addendums to this document, as the Matrix Technical Support Team identifies items
that require specific attention.
A blue light on the console will turn on every 5000 miles to remind the owner that maintenance is needed. To
reset this light, press INCLINE DOWN and SPEED DOWN for 3 seconds on 2005 or older units. Press
INCLINE DOWN and SPEED UP for 3 seconds on 2006 or newer units.
STRONG. SMART. BEAUTIFUL.
CARDIO MACHINERY

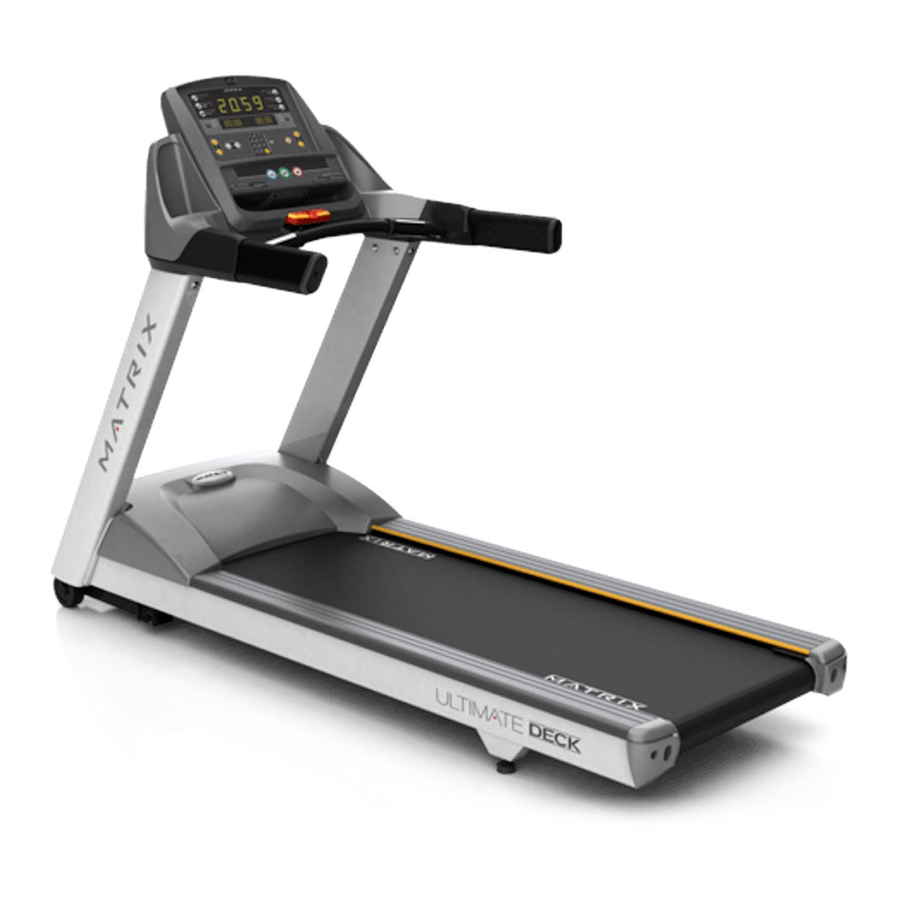

TREADMILLS
T3x, T3x-06, & T3xi-06 Maintenance Light
1
Advertisement
Related Manuals for Matrix T1x
Summary of Contents for Matrix T1x
- Page 1 STRONG. SMART. BEAUTIFUL. CARE AND MAINTENANCE INSTRUCTIONS In order to maximize life span, and minimize down time, all MATRIX equipment requires regular cleaning, and maintenance items performed on a scheduled basis. This document contains detailed instructions on how to perform these items, the frequency which they should be done, and a check list to sign off each time service is completed for a specific machine.
- Page 2 TREADMILLS - Continued Treadmill Daily Maintenance Items 1) Clean the entire machine using water and mild detergent such as “Simple Green”, or other Matrix approved solution (cleaning agents should be alcohol and ammonia free), including: console, handlebar/grip area, and running belt.
- Page 3 Lubricate the incline motor Acme screw (Matrix recommends using Superlube brand grease with PTFE {Teflon} additive). Also lubricate the pins at the junction of the elevation motor and incline rack (Figure 8B).
- Page 4 10,000 miles for T1x and T3x treadmills and 20,000 miles for T5x and T7x treadmills. 5) T1x, T1xe, T3x, T3x-06, & T3xi-06 UNITS ONLY – Clean the commutator on the drive motor. To do so: a. Remove the front motor cover.
- Page 5 STEPPERS Stepper Daily Maintenance 1) Clean the entire machine using water and mild detergent such as “Simple Green”, or other Matrix approved solutions (cleaning agents should be alcohol and ammonia free). 2) Vacuum the floor beneath the unit to prevent dust or dirt building up which can affect the performance.
- Page 6 5) Remove the plastic covers (Figure 15), and lubricate the ball joint (Figure 16) where the Link Arm and Vertical Handlebar join together. A grease gun, with a needle fitting adapter is required for this (Matrix recommends using Superlube brand grease with PTFE {Teflon} additive).
- Page 7 Exercise Bikes Daily Maintenance 1) Clean the entire machine including the foot pedals using water and mild detergent such as “Simple Green”, or other Matrix approved solutions (cleaning agents should be alcohol and ammonia free). Exercise Bikes Monthly Maintenance 1) Vacuum the floor beneath the unit to prevent dust or dirt building up which can affect the performance.
- Page 8 STRENGTH EQUIPMENT Strength Daily Maintenance 1) Clean the entire machine using water and mild detergent such as “Simple Green”, or other Matrix approved solutions (cleaning agents should be alcohol and ammonia free). For weight stack shields use glass cleaner such as “Windex”.
- Page 9 STRONG. SMART. BEAUTIFUL PREVENTATIVE MAINTENANCE CHECKLIST Facility: Make: Model: Location: Technician: Date: Inspect power cords Check resistance system Clean/lube guide rods Check E-stop cord/button Lubricate pivot points Inspect belt/cable assy. Vacuum/clean under cover Check connecting joints Check locking pins Check motor drive belt Remove covers, check belts Check pulleys Check running belt...
- Page 10 STRONG. SMART. BEAUTIFUL PREVENTATIVE MAINTENANCE CHECKLIST Facility: Make: Model: Date: Location: Technician: Inspect power cords Check resistance system Clean/lube guide rods Check E-stop cord/button Lubricate pivot points Inspect belt/cable assy. Vacuum/clean under cover Check connecting joints Check locking pins Check motor drive belt Remove covers, check belts Check pulleys Check running belt...
