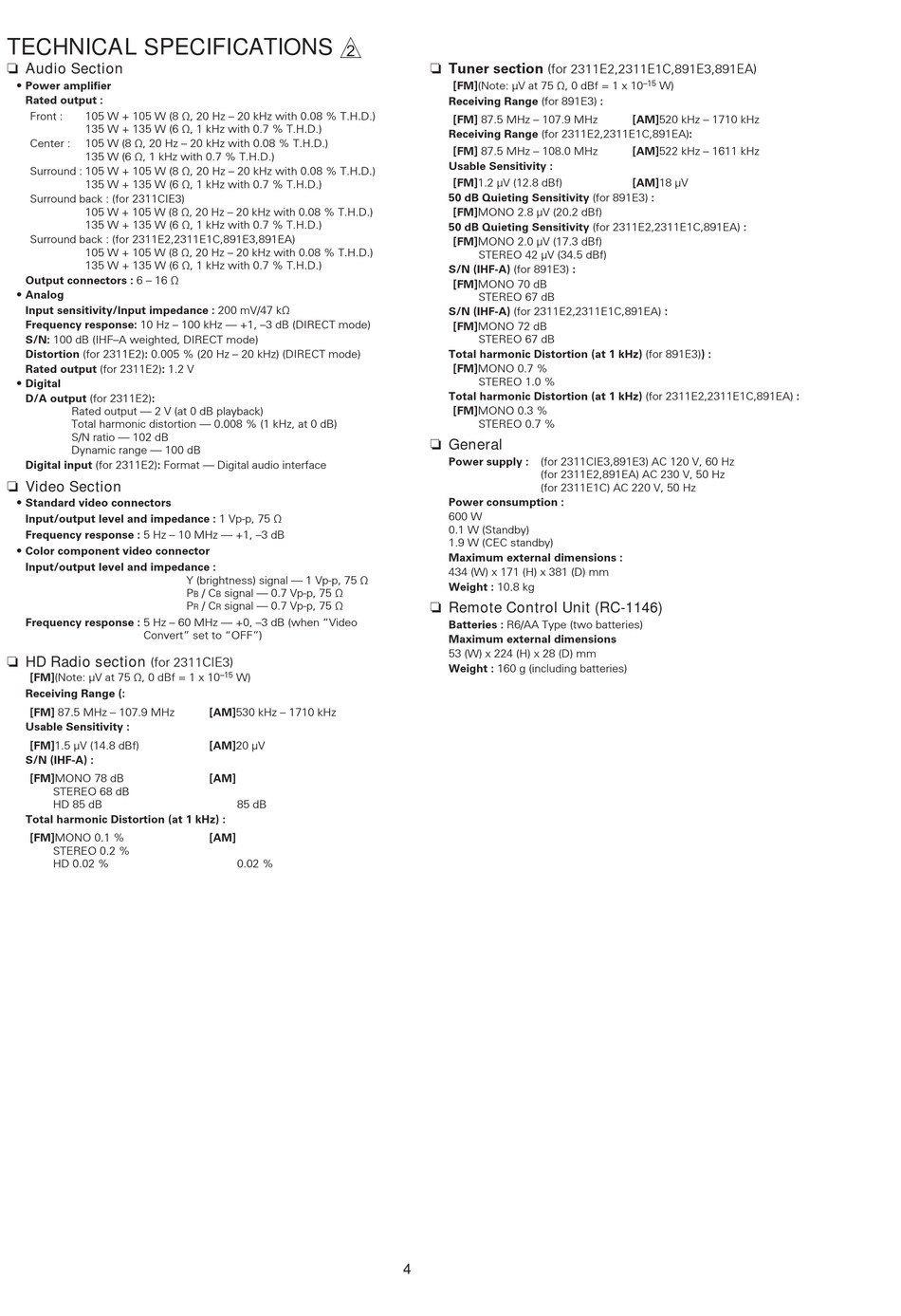

TECHNICAL SPECIFICATIONS s
n Audio Section
• Power amplifier
Rated output :
Front : 105 W + 105 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
135 W + 135 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Center : 105 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
135 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Surround : 105 W + 105 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
135 W + 135 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Surround back : (for 2311CIE3)
105 W + 105 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
135 W + 135 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Surround back : (for 2311E2,2311E1C,891E3,891EA)
105 W + 105 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
135 W + 135 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Output connectors : 6 – 16 Ω
• Analog
Input sensitivity/Input impedance : 200 mV/47 kΩ
Frequency response: 10 Hz – 100 kHz — +1, –3 dB (DIRECT mode)
S/N: 100 dB (IHF–A weighted, DIRECT mode)
Distortion (for 2311E2): 0.005 % (20 Hz – 20 kHz) (DIRECT mode)
Rated output (for 2311E2): 1.2 V
• Digital
D/A output (for 2311E2):
Rated output — 2 V (at 0 dB playback)
Total harmonic distortion — 0.008 % (1 kHz, at 0 dB)
S/N ratio — 102 dB
Dynamic range — 100 dB
Digital input (for 2311E2): Format — Digital audio interface
n Video Section
• Standard video connectors
Input/output level and impedance : 1 Vp-p, 75 Ω
Frequency response : 5 Hz – 10 MHz — +1, –3 dB
• Color component video connector
Input/output level and impedance :
Frequency response : 5 Hz – 60 MHz — +0, –3 dB (when "Video
Convert" set to "OFF")
n HD Radio section
(for 2311CIE3)
[FM](Note: μV at 75 Ω, 0 dBf = 1 x 10
Receiving Range (:
[FM] 87.5 MHz – 107.9 MHz
Usable Sensitivity :
[FM]1.5 μV (14.8 dBf)
S/N (IHF-A) :
[FM]MONO 78 dB
STEREO 68 dB
HD 85 dB
Total harmonic Distortion (at 1 kHz) :
[FM]MONO 0.1 %
STEREO 0.2 %
HD 0.02 %
Y (brightness) signal — 1 Vp-p, 75 Ω
P / C signal — 0.7 Vp-p, 75 Ω
B B
P / C signal — 0.7 Vp-p, 75 Ω
R R
–15 W)
[AM]530 kHz – 1710 kHz
[AM]20 μV
[AM]
85 dB
[AM]
0.02 %
n Tuner section
(for 2311E2,2311E1C,891E3,891EA)
[FM](Note: μV at 75 Ω, 0 dBf = 1 x 10
Receiving Range (for 891E3) :
[FM] 87.5 MHz – 107.9 MHz
Receiving Range (for 2311E2,2311E1C,891EA):
[FM] 87.5 MHz – 108.0 MHz
Usable Sensitivity :
[FM]1.2 μV (12.8 dBf)
50 dB Quieting Sensitivity (for 891E3) :
[FM]MONO 2.8 μV (20.2 dBf)
50 dB Quieting Sensitivity (for 2311E2,2311E1C,891EA) :
[FM]MONO 2.0 μV (17.3 dBf)
STEREO 42 μV (34.5 dBf)
S/N (IHF-A) (for 891E3) :
[FM]MONO 70 dB
STEREO 67 dB
S/N (IHF-A) (for 2311E2,2311E1C,891EA) :
[FM]MONO 72 dB
STEREO 67 dB
Total harmonic Distortion (at 1 kHz) (for 891E3)) :
[FM]MONO 0.7 %
STEREO 1.0 %
Total harmonic Distortion (at 1 kHz) (for 2311E2,2311E1C,891EA) :
[FM]MONO 0.3 %
STEREO 0.7 %
n General
Power supply : (for 2311CIE3,891E3) AC 120 V, 60 Hz
(for 2311E2,891EA) AC 230 V, 50 Hz
(for 2311E1C) AC 220 V, 50 Hz
Power consumption :
600 W
0.1 W (Standby)
1.9 W (CEC standby)
Maximum external dimensions :
434 (W) x 171 (H) x 381 (D) mm
Weight : 10.8 kg
n Remote Control Unit (RC-1146)
Batteries : R6/AA Type (two batteries)
Maximum external dimensions
53 (W) x 224 (H) x 28 (D) mm
Weight : 160 g (including batteries)
