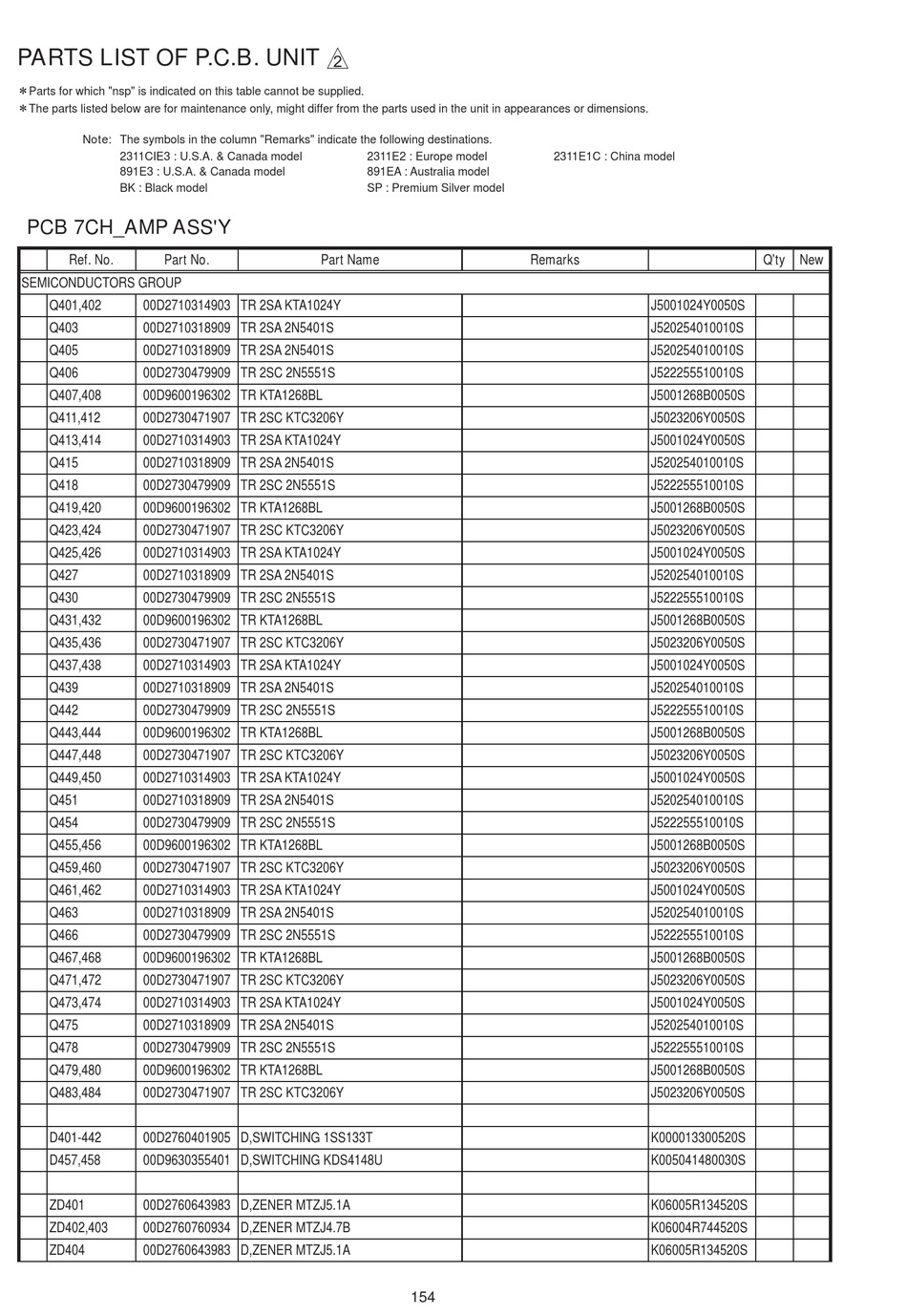

PARTS LIST OF P.C.B. UNIT s
zParts for which "nsp" is indicated on this table cannot be supplied.
zThe parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
Note: The symbols in the column "Remarks" indicate the following destinations.
2311CIE3 : U.S.A. & Canada model
891E3 : U.S.A. & Canada model
BK : Black model

PCB 7CH_AMP ASS'Y

Ref. No. Part No.
SEMICONDUCTORS GROUP
Q401,402 00D2710314903 TR 2SA KTA1024Y
Q403 00D2710318909 TR 2SA 2N5401S
Q405 00D2710318909 TR 2SA 2N5401S
Q406 00D2730479909 TR 2SC 2N5551S
Q407,408 00D9600196302 TR KTA1268BL
Q411,412 00D2730471907 TR 2SC KTC3206Y
Q413,414 00D2710314903 TR 2SA KTA1024Y
Q415 00D2710318909 TR 2SA 2N5401S
Q418 00D2730479909 TR 2SC 2N5551S
Q419,420 00D9600196302 TR KTA1268BL
Q423,424 00D2730471907 TR 2SC KTC3206Y
Q425,426 00D2710314903 TR 2SA KTA1024Y
Q427 00D2710318909 TR 2SA 2N5401S
Q430 00D2730479909 TR 2SC 2N5551S
Q431,432 00D9600196302 TR KTA1268BL
Q435,436 00D2730471907 TR 2SC KTC3206Y
Q437,438 00D2710314903 TR 2SA KTA1024Y
Q439 00D2710318909 TR 2SA 2N5401S
Q442 00D2730479909 TR 2SC 2N5551S
Q443,444 00D9600196302 TR KTA1268BL
Q447,448 00D2730471907 TR 2SC KTC3206Y
Q449,450 00D2710314903 TR 2SA KTA1024Y
Q451 00D2710318909 TR 2SA 2N5401S
Q454 00D2730479909 TR 2SC 2N5551S
Q455,456 00D9600196302 TR KTA1268BL
Q459,460 00D2730471907 TR 2SC KTC3206Y
Q461,462 00D2710314903 TR 2SA KTA1024Y
Q463 00D2710318909 TR 2SA 2N5401S
Q466 00D2730479909 TR 2SC 2N5551S
Q467,468 00D9600196302 TR KTA1268BL
Q471,472 00D2730471907 TR 2SC KTC3206Y
Q473,474 00D2710314903 TR 2SA KTA1024Y
Q475 00D2710318909 TR 2SA 2N5401S
Q478 00D2730479909 TR 2SC 2N5551S
Q479,480 00D9600196302 TR KTA1268BL
Q483,484 00D2730471907 TR 2SC KTC3206Y
D401-442 00D2760401905 D,SWITCHING 1SS133T
D457,458 00D9630355401 D,SWITCHING KDS4148U
ZD401 00D2760643983 D,ZENER MTZJ5.1A
ZD402,403 00D2760760934 D,ZENER MTZJ4.7B
ZD404 00D2760643983 D,ZENER MTZJ5.1A
2311E2 : Europe model
891EA : Australia model
SP : Premium Silver model
Part Name
154
2311E1C : China model
Remarks
J5001024Y0050S
J520254010010S
J520254010010S
J522255510010S
J5001268B0050S
J5023206Y0050S
J5001024Y0050S
J520254010010S
J522255510010S
J5001268B0050S
J5023206Y0050S
J5001024Y0050S
J520254010010S
J522255510010S
J5001268B0050S
J5023206Y0050S
J5001024Y0050S
J520254010010S
J522255510010S
J5001268B0050S
J5023206Y0050S
J5001024Y0050S
J520254010010S
J522255510010S
J5001268B0050S
J5023206Y0050S
J5001024Y0050S
J520254010010S
J522255510010S
J5001268B0050S
J5023206Y0050S
J5001024Y0050S
J520254010010S
J522255510010S
J5001268B0050S
J5023206Y0050S
K000013300520S
K005041480030S
K06005R134520S
K06004R744520S
K06005R134520S
Q'ty New
