1. FRONT PANEL ASSY
Proceeding :
CABINET TOP
FRONT PANEL ASSY
→

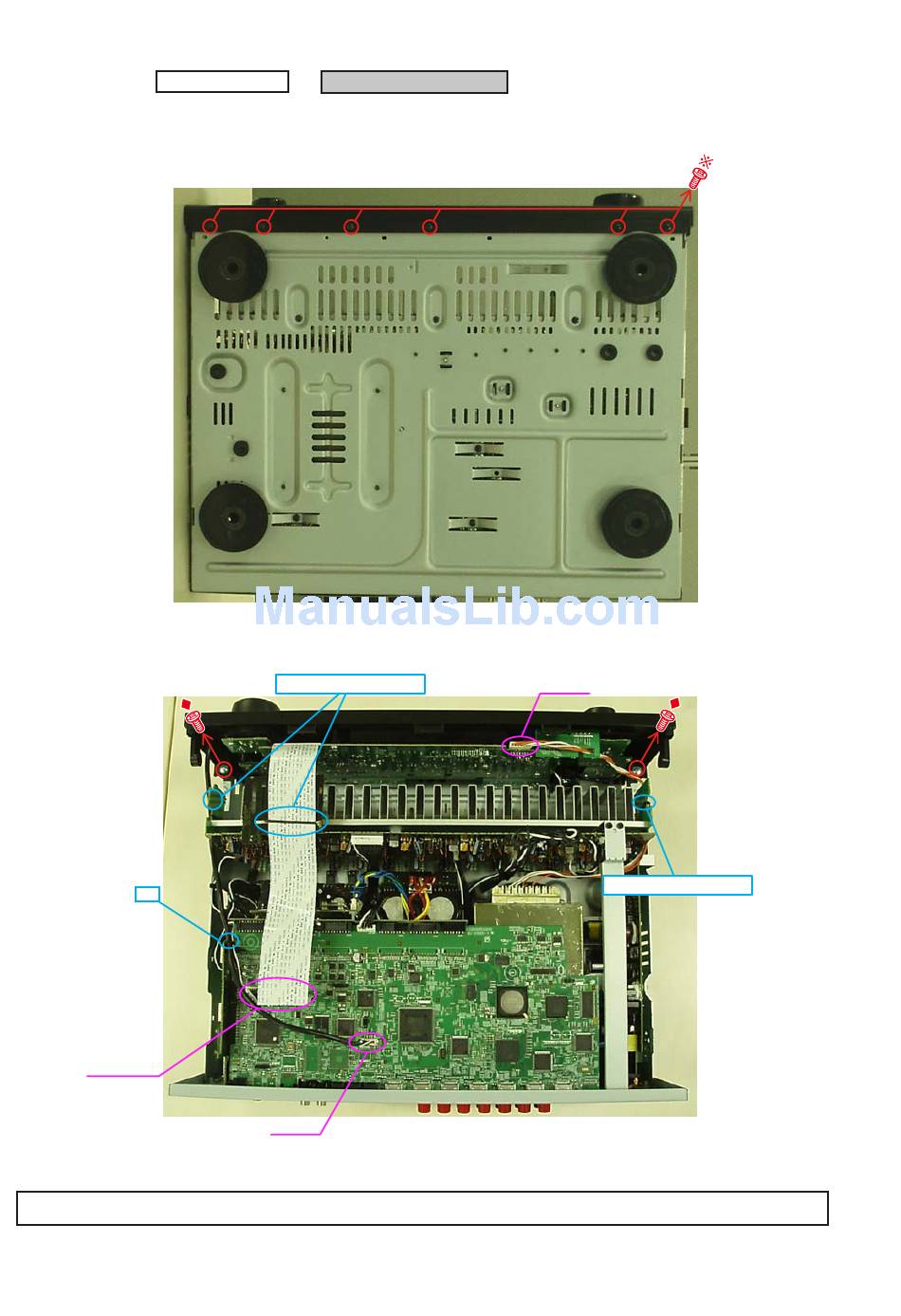

(1) Remove the screws.
View from bottom
(2) Cut the wire clamp band, then disconnect the connector wires and FFC cable. Remove the screws.
STYLE PIN : Loose
CP100
STYLE PIN : Loose
cut
FFC cable
N4401
Please refer to "EXPLODED VIEW" for the disassembly method of each PCB included in FRONT PANEL ASSY.
