JIG FOR SERVICING

When you repair the printing board, you can use the following JIG (Extension cable kit).
Please order to DENON Official Service. Distributor in your region if necessary.
Note: When the connection which is wrong in the JIG (EXTENSION UNIT KIT) is done it becomes cause of damage.
8U-110084S : EXTENSION UNIT KIT

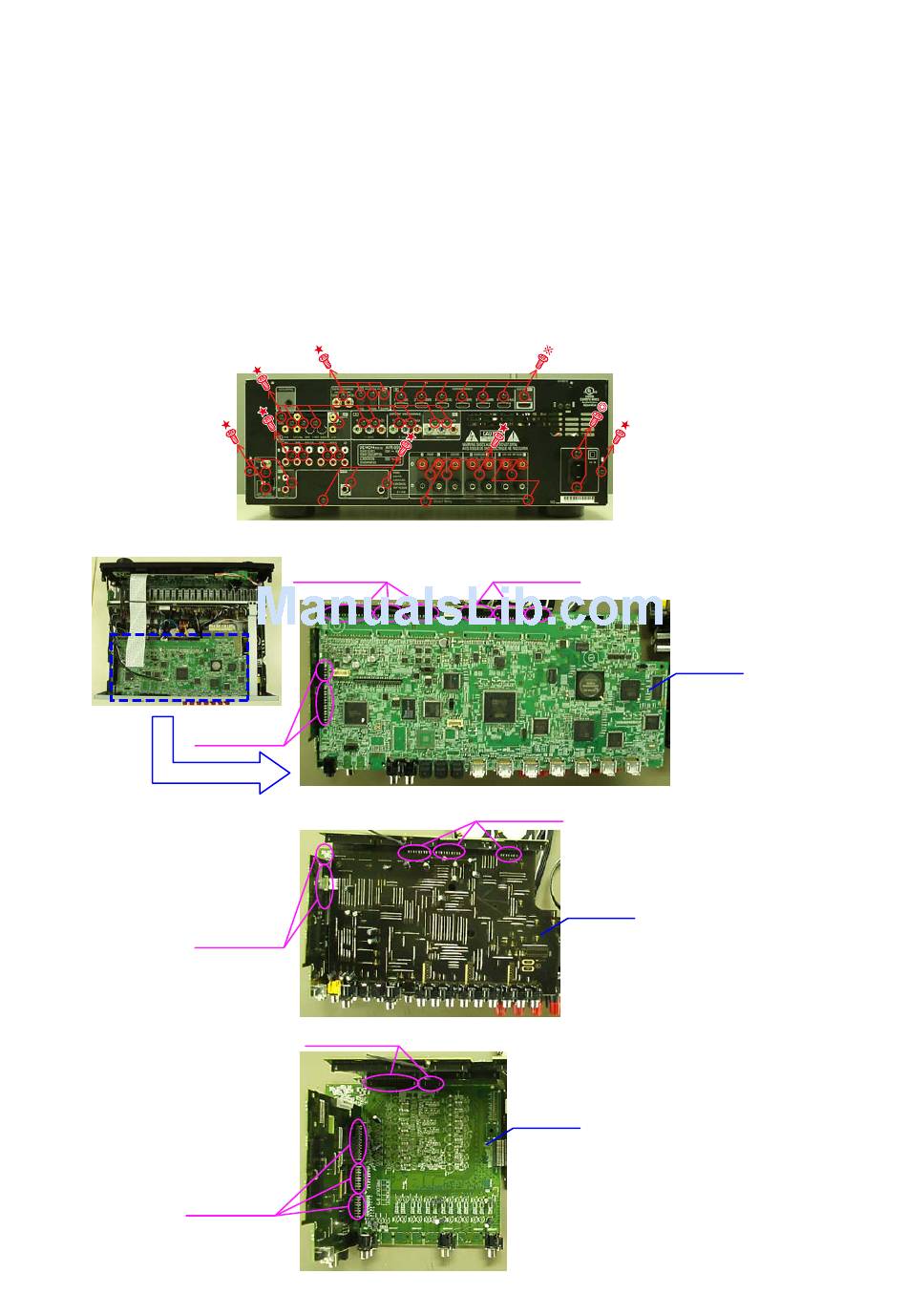

• Connection of PCB HDMI JIG

-Preparation-
8U-110084S : EXTENSION UNIT KIT
Insulation sheet (Do not supply it)
Ground lead (Do not supply it)
-Procedures-
(1) Remove the screws.
(2) Disconnect the connector board.
Board to board
: 1 Set s
: 3 sheet
: 3 pcs
Board to board
Board to board
Board to board
Board to board
Board to board
Board to board
PCB VIDEO
PCB INPUT
20
PCB HDMI
