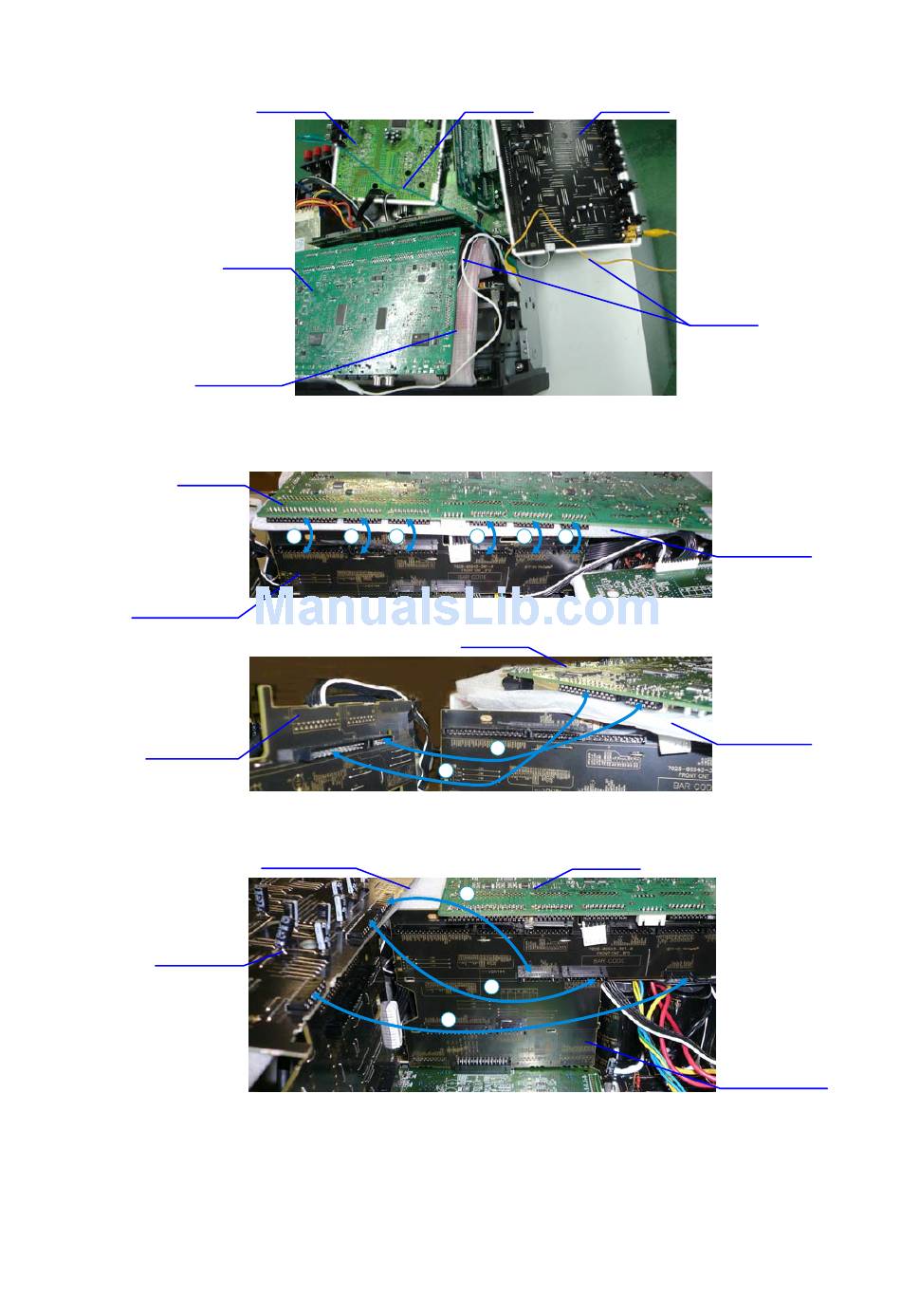

(3) PCB HDMI is detached from the chassis, and it puts it into the state turned inside out.
Please pave an insulation sheet that is larger than PCB HDMI under PCB.
b Connect the ground point of PCB to the chassis with a ground lead or the like.
PCB HDMI
Insulation sheet
(4) Connect the four extension jig cables.
PCB HDMI
PCB FRONT CNT
PCB SIDE CNT
PCB VIDEO
PCB INPUT
8
7
6
Insulation sheet
Ground lead
PCB VIDEO
4
3
5
PCB HDMI
1
2
PCB HDMI
9
10
11
21
Ground lead
Insulation sheet
Insulation sheet
PCB FRONT CNT
