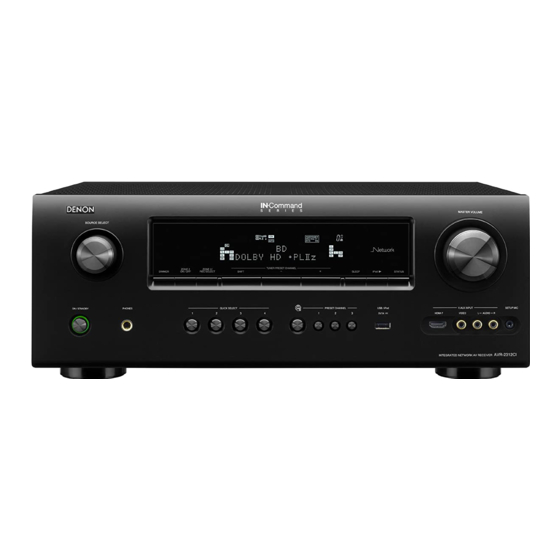

Denon AVR-2312CI Protocol Manual
  1. Manuals
  2. Brands
  3. Denon Manuals
  4. Receiver
  5. AVR-2312CI
  6. Protocol manual

Denon AVR-2312CI Protocol Manual

Avr control protocol
Hide thumbs Also See for AVR-2312CI:

Advertisement

Quick Links

Download this manual
DENON AVR control protocol
Application model :  AVR-2312CI/AVR-2312
Application terminal: RS-232C

Connector specification
  Ⅰ. RS-232C
Connector type: DB-9pin female type, slave straight connection (DCE type)
( 1pin : GND , 2pin : TxD , 3pin : RxD , 5pin : Common(GND) , 4,6,7,8,9pin : NC )
Communication format:
Synchronous system
Communication system
Communication speed
Character length
Parity control
Start bit
Stop bit
Communication procedure
Communication data length

Date
Version
7.5.0
15.Apr.'11
Ethernet
: Tone step synchronization
: A half duplex
: 9600bps
: 8 bits
: None
: 1 bit
: 1 bit
: Non procedural
: 135 bytes (maximum)
Contents
Original
Page
- 1 -
Ver.7.5.0
