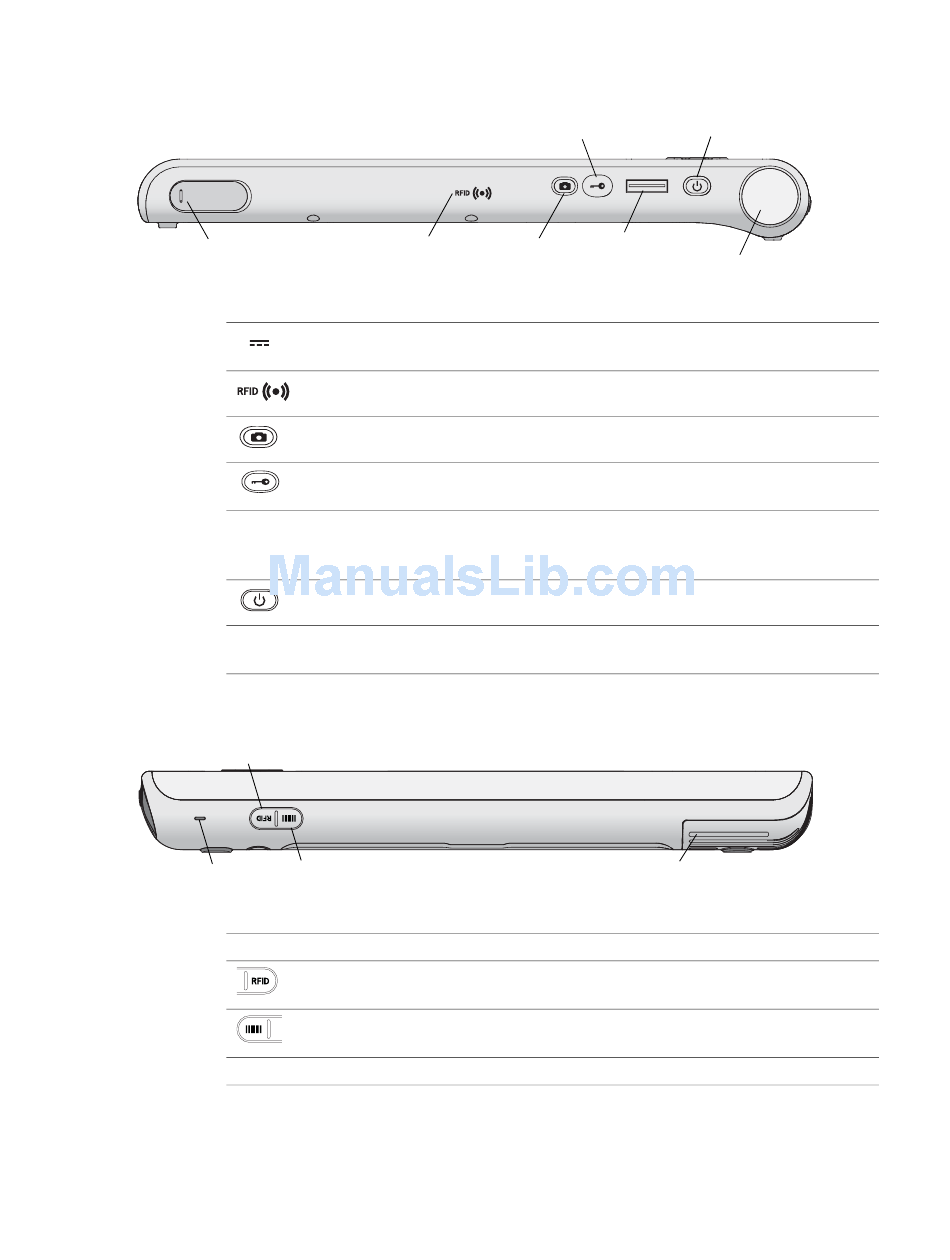

Right side

Power adapter
port and cover
Power adapter port
and cover
RFID antenna area
Camera button
Windows Security
button
Fingerprint reader
Power button
Bar code scanner
lens

Top side

RFID button
Bar code
RFID status
light scanner button
RFID status light
RFID scanner
button
Bar code scanner
button
Fan cover
Chapter 1 Getting Started
Windows Security
button
RFID antenna Camera
area button
Connect the power adapter (page 19).
Scan area for reading RFID tags (page 16).
Use to trigger the built-in camera (page 14).
Use to log on to or lock the system. Equivalent to
Ctrl+Alt+Del on a keyboard (page 13).
Scan your fingerprints for added security. You can also
use the fingerprint reader as a navigation device
(page 13).
Turns the system on and off.
Reads codes from bar code labels (page 15).
Shows the status of the RFID scanner.
Use to trigger the RFID scanner (page 16).
Use to trigger the bar code reader (page 15).
Protects the fan assembly.
Power
button
Fingerprint
reader
Bar code scanner
Fan cover
lens
