Intelix DIGI-HDUSB Installation Manual page 2

1. Status LEDs
• Power: Solid green when power is applied.
• Link: Solid green when link is present between extenders.
• USB: Solid green when connected to host PC; flashes green when in a
suspended state.
• Video: Solid green when HDCP content is being transmitted; flashing
green when non-HDCP content is being transmitted.
2. 5V DC Power Input
3. USB Type B Port to PC
4. Link Port to Extender
5. HDMI in from source
6. Config for firmware update. A separate document will provide usage
instructions once a new firmware update is available.
1. Status LEDs
• Power: Solid green when power is applied.
• Link: Solid green when link is present between extenders.
• USB: Solid green when connection is established between local extender
and host PC; flashes green when in a suspended state.
• Video: Solid green when HDCP content is being transmitted; flashing
green when non-HDCP content is being transmitted.
2. Link Port to Extender
3. HDMI out to remote monitor
4. (3) USB Type A Port to USB device(s)
5. 5V DC Power Input
6. Config for firmware update. A separate document will provide usage
instructions once a new firmware update is available.

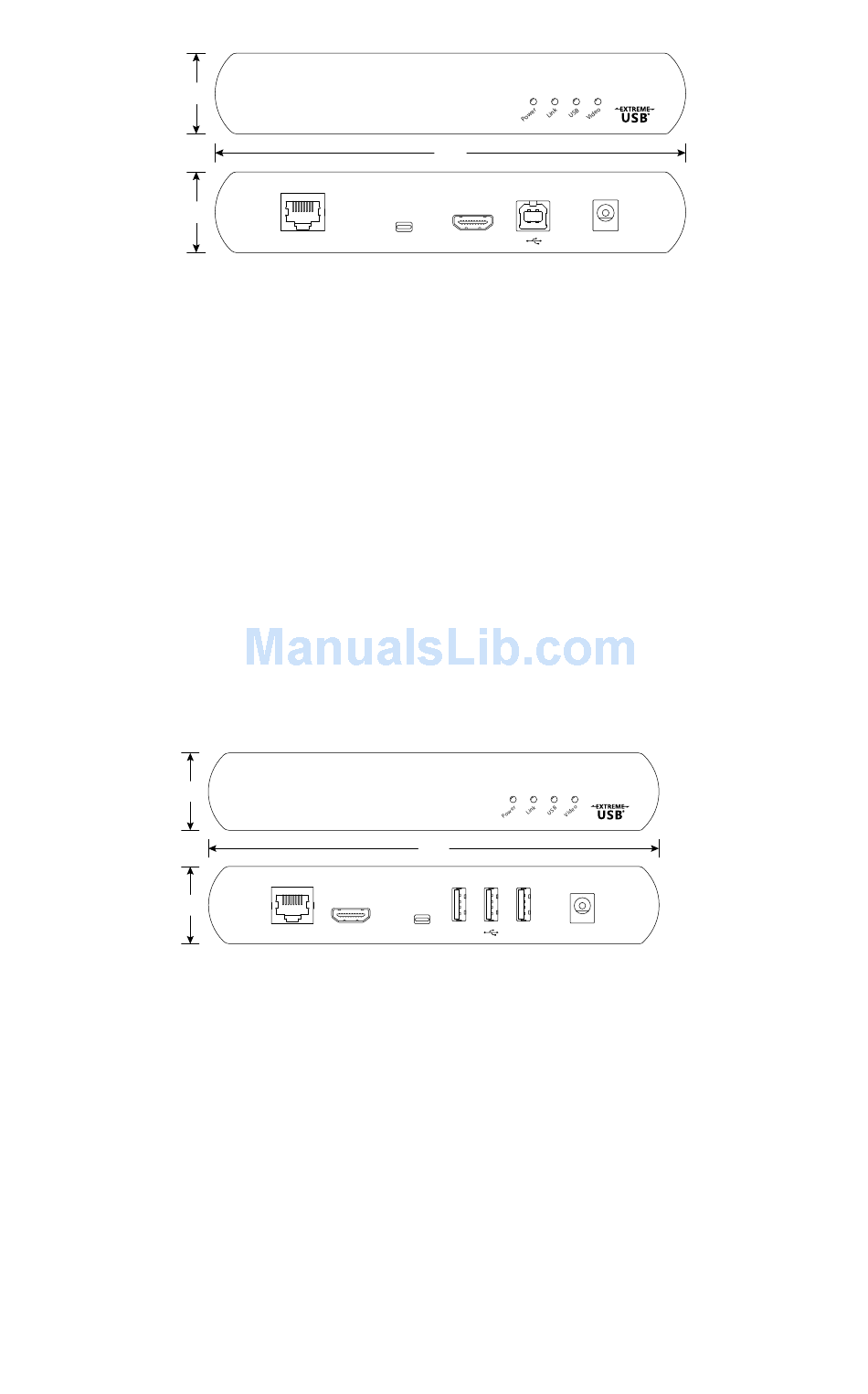

Host Side Connections
30 mm
(1.18 in)
30 mm
(1.18 in)
Link
Client Side Connections
30 mm
(1.18 in)
30 mm
(1.18 in)
Link HDMI Out
100 mm
(3.94 in)
HDMI In
Config
100 mm
(3.94 in)
Config
5V DC
5V DC
