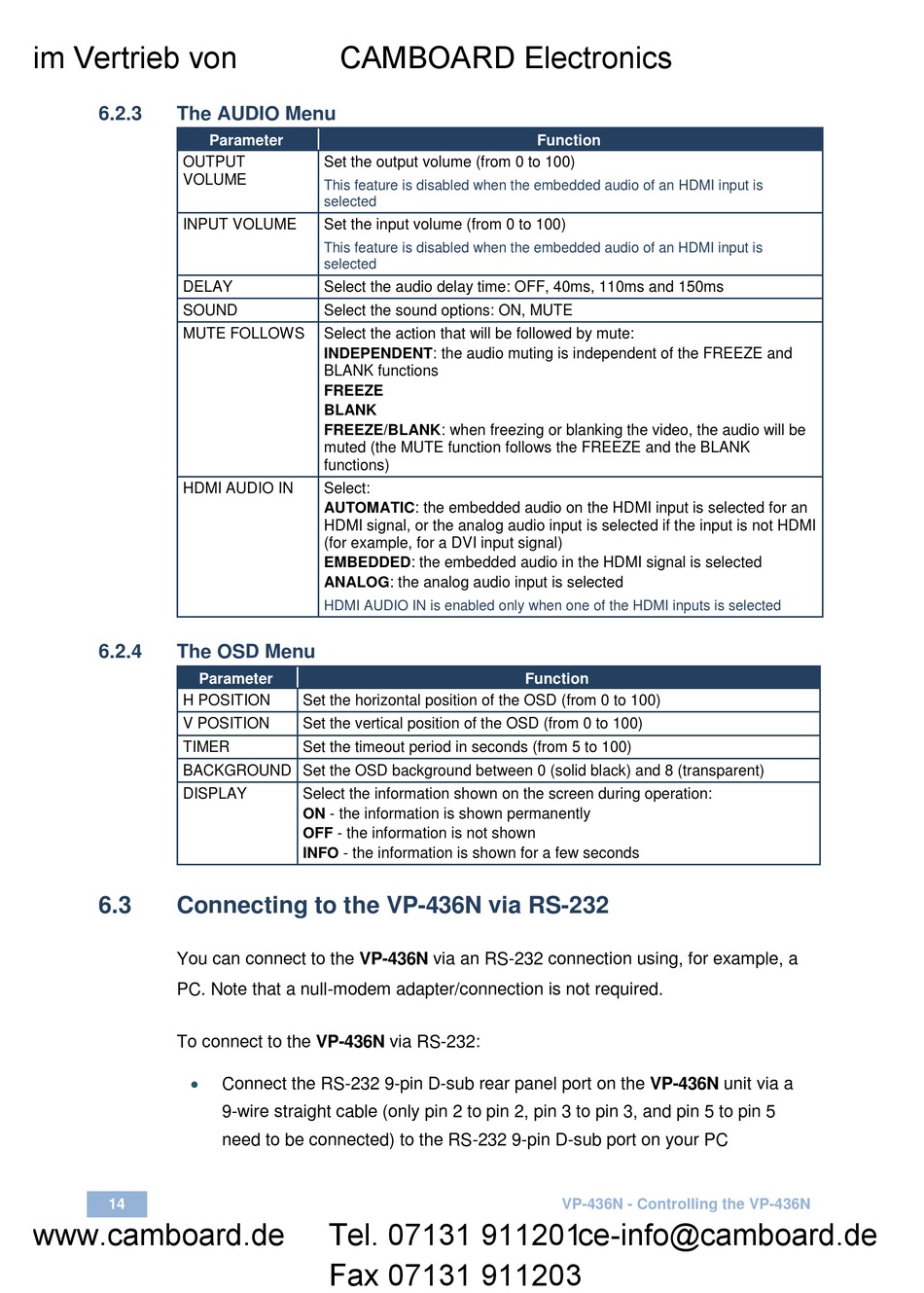

6.2.3 The AUDIO Menu
OUTPUT
VOLUME
INPUT VOLUME
DELAY
SOUND
MUTE FOLLOWS
HDMI AUDIO IN
6.2.4 The OSD Menu
Parameter
H POSITION
V POSITION
TIMER
BACKGROUND Set the OSD background between 0 (solid black) and 8 (transparent)
DISPLAY
6.3

Connecting to the VP-436N via RS-232

You can connect to the VP-436N via an RS-232 connection using, for example, a
PC. Note that a null-modem adapter/connection is not required.
To connect to the VP-436N via RS-232:

14
www.camboard.de
CAMBOARD Electronics
Parameter
Set the output volume (from 0 to 100)
This feature is disabled when the embedded audio of an HDMI input is
selected
Set the input volume (from 0 to 100)
This feature is disabled when the embedded audio of an HDMI input is
selected
Select the audio delay time: OFF, 40ms, 110ms and 150ms
Select the sound options: ON, MUTE
Select the action that will be followed by mute:
INDEPENDENT: the audio muting is independent of the FREEZE and
BLANK functions
FREEZE
BLANK
FREEZE/BLANK: when freezing or blanking the video, the audio will be
muted (the MUTE function follows the FREEZE and the BLANK
functions)
Select:
AUTOMATIC: the embedded audio on the HDMI input is selected for an
HDMI signal, or the analog audio input is selected if the input is not HDMI
(for example, for a DVI input signal)
EMBEDDED: the embedded audio in the HDMI signal is selected
ANALOG: the analog audio input is selected
HDMI AUDIO IN is enabled only when one of the HDMI inputs is selected
Set the horizontal position of the OSD (from 0 to 100)
Set the vertical position of the OSD (from 0 to 100)
Set the timeout period in seconds (from 5 to 100)
Select the information shown on the screen during operation:
ON - the information is shown permanently
OFF - the information is not shown
INFO - the information is shown for a few seconds
Connect the RS-232 9-pin D-sub rear panel port on the VP-436N unit via a
9-wire straight cable (only pin 2 to pin 2, pin 3 to pin 3, and pin 5 to pin 5
need to be connected) to the RS-232 9-pin D-sub port on your PC
Tel. 07131 911201
Fax 07131 911203
Function
Function
VP-436N - Controlling the VP-436N
