TECHNICAL SPECIFICATION
Voltage : 230Vac, 50/60Hz
Fuse : 2A Slow blow
Laser Class : 3B
Red Laser: 100mW 638nm
Green Power : 50mW 532nm
IMPORTANT NOTE: This product conformed to Laser & LED Safety standard
BSEN60825-1 2007 incorporating corrigendum 2008
DISPOSAL:
Please disposal of the unserviceable device according to the current statutory requirement
Errors and omissions excepted.
Copyright© 2012. AVSL Group Ltd.
Blue : 300mW 455nm
DMX Channels : 20
Dimensions : 220 x 176 x 99mm
Power Consumption : 45W
Weight : 1.6kg

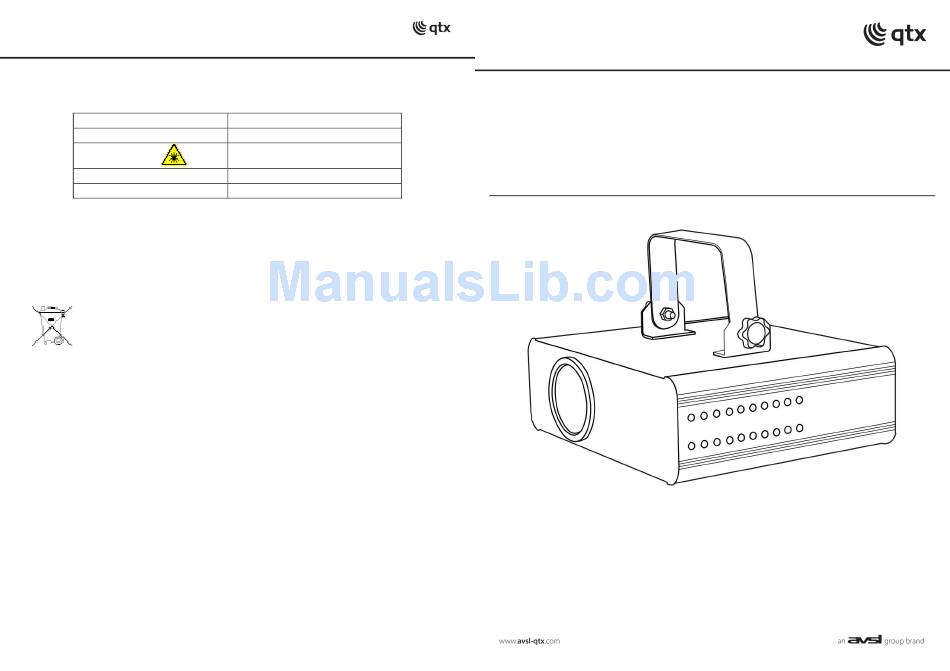

152.762UK User Manual
IMPORTANT SAFETY NOTICE
Please Read this manual before operating
VERSION 1.0
3D OBJECTS
RGB LASER
Order ref: 152.762UK
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3D OBJECTS 152.762UK and is the answer not in the manual?

Questions and answers

Related Manuals for Qtx 3D OBJECTS 152.762UK

Summary of Contents for Qtx 3D OBJECTS 152.762UK

  • Page 1 TECHNICAL SPECIFICATION 3D OBJECTS Voltage : 230Vac, 50/60Hz Blue : 300mW 455nm RGB LASER Fuse : 2A Slow blow DMX Channels : 20 Order ref: 152.762UK Dimensions : 220 x 176 x 99mm Laser Class : 3B User Manual Red Laser: 100mW 638nm Power Consumption : 45W Green Power : 50mW 532nm Weight : 1.6kg...
  • Page 2 INTRODUCTION: Cont: 3D OBJECTS RGB LASER No rotation (14) Y axis rotation 001-219 Y axis rotational position manual adjust Thank you for purchasing this 3D Objects laser. 220-255 Y axis auto rotation A laser unlike any other featuring innovative projection technology. This laser creates unique (15) Adjust speed When channel 14 is 220-255, adjust Y axis 000-255...
  • Page 3 DMX Channel Control content CAUTION Value 000-010 Black out 011-062 Sound control (1) Mode 063-125 Auto running 126-189 DMX control ① 190-255 DMX control ② • Please read this manual fully before installing or operating this 000-255 Select programs under DMX control ① (2) Gobos and product as it contains important safety information relating to its programs choose...

  • Page 4: Installation And Mounting Instructions

    IMPORTANT INFOMATION: This product is a Class 3B laser and should only be installed and used by personal who are The fixture is equipped with 3-pin XLR connectors for DMX input and output. The SE trained in the management of laser radiation and are able to operate in accordance within the connectors are wired in parallel.
  • Page 5 VERTICAL BIRDS EYE VIEW: OPERATION FOR 3D OBJECTS LASER Press the “MENU” button to enter setup mode followed by the “UP” & “DOWN” keys to select the mode you desire. To confirm your selection press “ENTER” Display Function Auto running random effects cycle Sound activated random effects cycle Colour select mode P00-P19...
  • Page 6 VERTICAL CROSS SECTIONAL VIEW: REAR PANAL 3D OBJECTS LASER: 1. Power ON/OFF Switch 2. IEC Power IN 3. Digital display 4. Sound sensitivity 5. Microphone 6. DMX OUT 7. DMX IN 8. Safety Key 152.762UK User Manual 152.762UK User Manual...

  • Page 7: Package Contents

    PACKAGE CONTENTS: LAYOUT 3D OBJECTS LASER: Please check the contents to ensure that the product has been received in good condition. Laser x 1unit User’s Guide x 1pc IEC Power Lead x 1pc Safety Keys x 2pcs If you find any accessory is missing or the product has arrived with any problems, please contact your retailer at once.

  • Page 8: Troubleshooting

    CONNECT WITH POWER SUPPLY – THE GROUND WIRE MUST BE TROUBLESHOOTING CONNECTED: If the unit is not functioning properly Use the supplied IEC lead to connect to the main power supply as follows: Check that the IEC cable is connected properly Check that the mains power switch is on.
