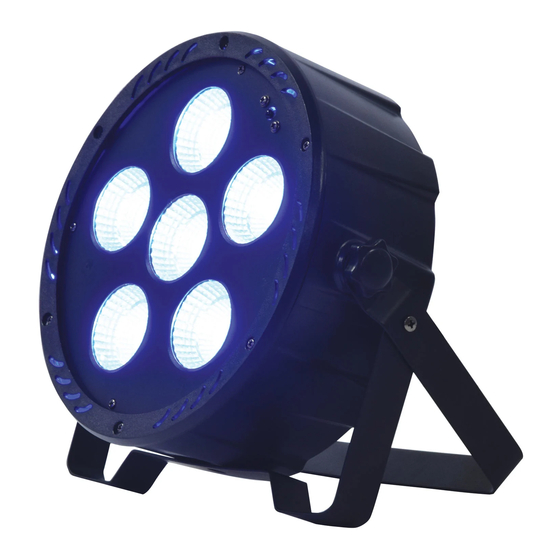

Qtx PAR-180 User Manual

6 x 30w cob par light (rgb+uv)
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
PAR-180
6 x 30W COB PAR LIGHT (RGB+UV)
Item ref: 154.039UK
User Manual
Caution: Please read this manual carefully before operating
Damage caused by misuse is not covered by the warranty
Caution: Please read this manual carefully before operating
Damage caused by misuse is not covered by the warranty

Advertisement

loading
Need help?

Need help?

Do you have a question about the PAR-180 and is the answer not in the manual?

Questions and answers

Related Manuals for Qtx PAR-180

Summary of Contents for Qtx PAR-180

  • Page 1 PAR-180 6 x 30W COB PAR LIGHT (RGB+UV) Item ref: 154.039UK User Manual Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty...

  • Page 2: Safety Symbol And Message Conventions

    Introduction Thank you for your purchase of the QTX PAR-180 DMX PAR light. This fixture has been designed to provide powerful and colourful light coverage to a wide area for stage, theatre and corporate events. Please read and keep this manual for reference to gain the best results from this product and avoid damage through misuse.
  • Page 3 Rear panel Internal microphone (for sound activation) LED display Control panel DMX in XLR DMX out XLR Cooling fan vent IEC power inlet, outlet & fuse holder Onboard Menu Press Menu Press Up/Down Press Enter DMX start address setting  -  xxx...
  • Page 4 Master/slave mode To use in Master/Slave mode, connect PAR-180 units with XLR cables from DMX out to DMX in as a daisy chain. On the Master unit (first in the daisy chain), using the 4 control buttons on the back panel, select your chosen program.

  • Page 5: Remote Control

    Speed Control for CH6 Auto programs 001 - 255 Strobe (slow to fast) Remote control The PAR-180 is supplied with an I.R. remote control for quick access to most of the basic functions of the fixture. This must be aimed at the front of the...
  • Page 6 Specifications Power supply 100-240Vac, 50/60Hz (IEC) Power consumption 200W max. Fuse rating Illuminance 1220lux @ 2m Beam angle 60° Projection distance LED: quantity 6 x 30W RGB+UV COB (chip-on-board) DMX channels 4 or 8 Dimensions 100 x 250mmØ Weight 1.5kg LED: safety standard BSEN62471:2008 Troubleshooting...
