Qtx Tri-Bar User Manual

Tri-Bar Item ref: 151.593UK
User Manual
3 Segment RGB LED Wall Bar
Please read through this manual thoroughly before use, any damage
caused by misuse of product will not be covered by warranty.

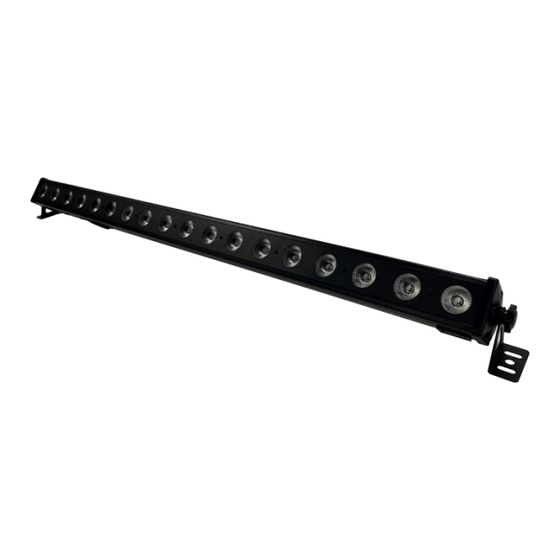

Thank you for choosing the QTX Tri-Bar with 18 high output RGB LEDs to provide colour washes and
moving patterns against walls, ceilings or even floors. The 3 groups of 6 LEDs can be controlled by auto or
sound activated modes from preset internal colour sequences. Alternatively, the bar can be operated
remotely by DMX in either 3, 7 or 13 channel modes and connected to more units if a larger effect is
needed.
In the box:
Your Tri-Bar should arrive with you in a single carton in good condition. The carton should contain
1 x main unit, 2 fixing stand/brackets with thumbscrews, 1 x UK IEC mains lead and 1 x manual.
Warning:
To prevent risk of fire or electric shock, do not expose the unit to rain or damp environments. In the event
of a spillage, disconnect the mains and allow the unit to dry out naturally. Qualified personnel should then
check the unit before continuing use.
Please do not open cover, contains high voltage. This
product is not serviceable or repairable by the end user.
Please refer to qualified personnel for service and repair.
