Qtx Wash & Beam User Manual

Wash & Beam Item ref: 151.598UK
User Manual

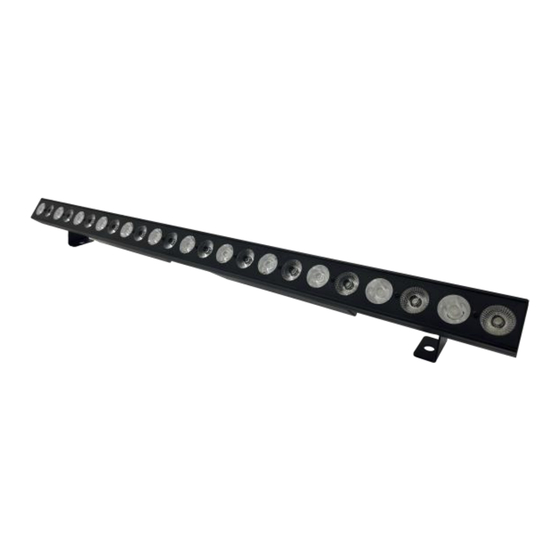

24 x 3W LED Wall Bar
Please read through this manual thoroughly before use, any damage
caused by misuse of product will not be covered by warranty.
Effects bar with 12 high output RGB wash and 12 amber beam LEDs that provide amazing colour washes
and patterns against walls, ceilings or even floors. The alternating RGB and amber LEDs can be controlled
by auto or sound activated modes from preset internal colour sequences. Alternatively, the bar can be
operated remotely by DMX in either 4, 6, 11, 48 and 54 channel modes and connected to more units if a
larger effect is required. Supplied with professional twist and lock power connections and tilt-adjustable
brackets for mounting to walls or ceilings.
In the box:
Your Wash & Beam should arrive with you in a single carton in good condition. The carton should contain
1 x main unit, 2 fixing stand/brackets with thumbscrews, 1 x twist and lock UK mains lead and 1 x user
guide.
Warning:
To prevent risk of fire or electric shock, do not expose the unit to rain or damp environments. In the event
of a spillage, disconnect the mains and allow the unit to dry out naturally. Qualified personnel should then
check the unit before continuing use.
Please do not open cover, contains high voltage. This
product is not serviceable or repairable by the end user.
Please refer to qualified personnel for service and repair.
www.avsl.com 151.598UK User Manual
