SpectraWash
Item ref: 154.055UK
User Manual
240W LED Colour Blinder and Strobe
Please read through this manual thoroughly before use, any damage
caused by misuse of product will not be covered by warranty.

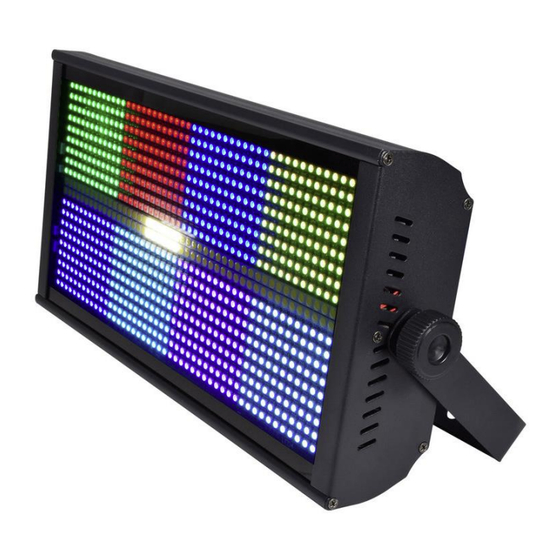

The SpectraWash is a powerful 240W Multicolour LED stage-blinder that can produce a vast array of
moving effects, strobes and washes. Easy to setup and use via a wide range of integrated automatic and
sound to light programs or for more precise control there are 4 DMX modes to choose from. Fitted with
twist and lock power connections for a more professional feel and housed in an all-metal casing with fan
cooling for durability and reliable operation.
In the box:
Your SpectraWash should arrive with you in a single carton in good condition. The carton should contain
1 x main unit, 1 fixing bracket with thumbscrews, 1 x twist and lock UK mains lead and 1 x user guide.
Warning:
To prevent risk of fire or electric shock, do not expose the unit to rain or damp environments. In the event
of a spillage, disconnect the mains and allow the unit to dry out naturally. Qualified personnel should then
check the unit before continuing use.
Please do not open cover, contains high voltage. This
product is not serviceable or repairable by the end user.
Please refer to qualified personnel for service and repair.
www.avsl.com
154.055UK User Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Qtx SpectraWash
Summary of Contents for Qtx SpectraWash
- Page 1 In the box: Your SpectraWash should arrive with you in a single carton in good condition. The carton should contain 1 x main unit, 1 fixing bracket with thumbscrews, 1 x twist and lock UK mains lead and 1 x user guide.
- Page 2 Placement: • Use the included mounting bracket to fix to a stand or lighting truss. • Use secondary safety fixings if mounting overhead. • Keep away from damp or dusty environments. • Ensure adequate airflow around the fixture housings. • Ensure adequate access to controls and connections.
- Page 3 ENTER button to cancel the sending. DMX mode: The SpectraWash can be controlled by DMX signal, simply connect the DMX signal source to the DMX input on the unit via a balanced XLR lead. Extra fixtures can be controlled by the same DMX signal by looping through the DMX out on the unit.
- Page 4 4 Channel mode: Channel Value Function and description 0-255 Red linear dimmer (0-100%) 0-255 Green linear dimmer (0-100%) 0-255 Blue linear dimmer (0-100%) 0-255 White linear dimmer (0-100%) 11 Channel mode: Channel Value Function and description 0-255 Master dimmer 0-255 RGB strobe (slow to fast) 0-255 RGB Mode (84 effects, including R/G/B/RG/RB/GB/RGB single colour,...
- Page 5 “” “” “” “” “” “” 0-255 Red segment 8 dimmer (0-100%) 0-255 Green segment 8 dimmer (0-100%) 0-255 Blue segment 8 dimmer (0-100%) 0-255 White strobe (slow to fast) 0-255 White mode (41 effects including White color, 1-segment, 2-segment, 3- segment, 4-segment, racing, flowing, refresh and stacking.
