Qtx GoboPar35 User Manual

2in1 light effect

Download this manual

GoboPar35

Item ref: 151.741UK

User Manual

2in1 Light Effect

Please read through this manual thoroughly before use, any damage

Caused by misuse of product will not be covered by warranty.

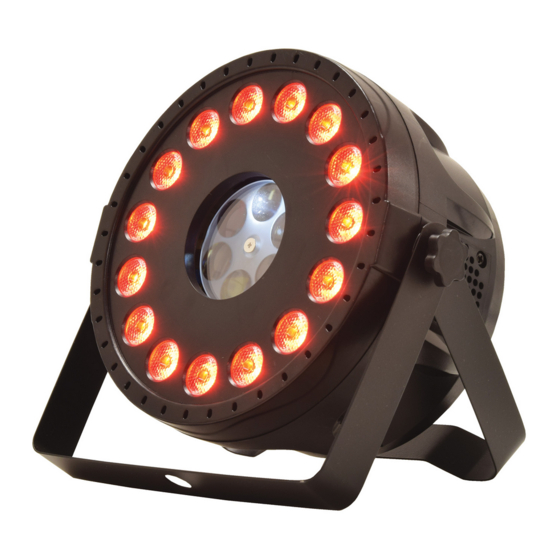

Thank you for choosing the GoboPar35, A versatile 2-in-1 light effect, combining 4 moving colour gobos

and 15 RGB colour-wash LEDs in a compact and convenient package. Power up the unit and simply

control it with the included IR remote control. With a press of a button you can set it to Auto-Run, Sound-

Activation and many other built-in sequences. For more advanced users, it can be connected to a DMX

controller for more sophisticated control. A colourful and flexible stage lighting solution, ideal for mobile

setups as well as permanent installations

In the box:

Your GoboPar35 should arrive with you in a single carton in good condition. The carton should contain

1 x main unit with bracket, 1x remote control, 1 x UK IEC mains lead and 1 x manual.

Warning:

To prevent risk of fire or electric shock, do not expose the unit to rain or damp environments. In the event

of a spillage, disconnect the mains and allow the unit to dry out naturally. Qualified personnel should then

check the unit before continuing use.

Please do not open cover, contains high voltage. This

product is not serviceable or repairable by the end user.

Please refer to qualified personnel for service and repair.

www.avsl.com

151.741UK User Manual

Need help?

Do you have a question about the GoboPar35 and is the answer not in the manual?

Page 1 In the box: Your GoboPar35 should arrive with you in a single carton in good condition. The carton should contain 1 x main unit with bracket, 1x remote control, 1 x UK IEC mains lead and 1 x manual.
Page 2 Placement: • Use the included mounting bracket to fix to a stand or lighting truss • Use secondary safety fixings if mounting overhead • Keep away from damp or dusty environments • Ensure adequate air-flow around the fixture housings • Ensure adequate access to controls and connections Cleaning: •...
Page 3 Remote control: GoboPar35 is supplied with an I.R. remote control for quick access to most of the basic functions of the unit. This must be aimed at the front of the unit where there is a remote receiver and has a maximum range of approximately 4m.
Page 4 51-150: Common colour output (8 types) 151-200: Colour jump mode 201-250: Colour scroll mode 251-255: Sound active CH11 Gobo selection 0-50: CH1 to CH9 control 51-150: Common colour output (16 types) 151-200: Colour jump mode 201-250: colour fade out mode 251-255: Sound active CH12 Gobo strobe...

151.741uk
