Qtx Pixel-Bar User Manual

Pixel-Bar
Pixelated LED Wall Strobe Bar
Please read through this manual thoroughly before use, any damage
caused by misuse of product will not be covered by warranty.

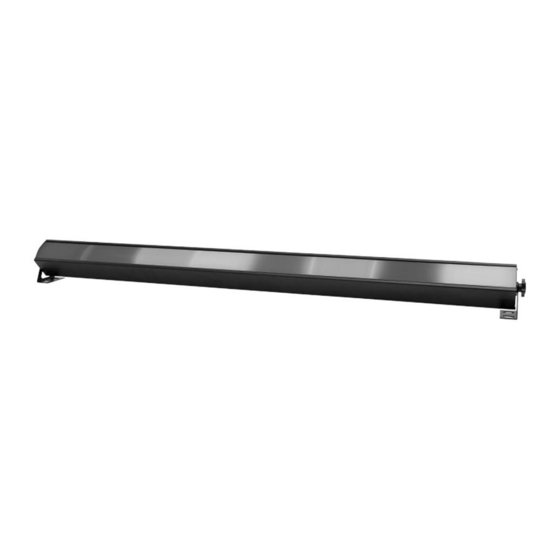

The QTX Pixel-Bar LED wall strobe bar is fitted with 224 RGB SMD's to provide a wide range of bright and
colourful patterns and effects. Various automatic shows and settings can be run directly from the unit or
using sound to light. Alternatively, the bar can be operated remotely by DMX in various channel modes
and connected to more units if a larger effect is needed.
In the box:
Your Pixel-Bar should arrive with you in a single carton in good condition. The carton should contain
1x main unit, 2x fixing stand/brackets with thumbscrews, 1x clear diffuser, 1x UK IEC mains lead and 1x
manual.
Warning:
To prevent risk of fire or electric shock, do not expose the unit to rain or damp environments. In the event
of a spillage, disconnect the mains and allow the unit to dry out naturally. Qualified personnel should then
check the unit before continuing use.
product is not serviceable or repairable by the end user.
Please refer to qualified personnel for service and repair.
Placement:
• Use the included mounting brackets to fix to a stand or lighting truss.
• Use secondary safety fixings if mounting overhead.
• Keep away from damp or dusty environments.
• Ensure adequate airflow around the fixture housings.
• Ensure adequate access to controls and connections.
• Do not aim LED output directly into line of sight, as this can result in eye injury.
www.avsl.com
Please do not open cover, contains high voltage. This
er or professional when unit malfunction.
Item ref: 151.594UK
User Manual
151.594UK User Manual
