Qtx MHS-90L User Manual

90w led moving head with laser

Table of Contents

Download this manual

MHS-90L

Item ref: 150.458UK

User Manual

90W LED Moving Head with Laser

Please read through this manual thoroughly before use, any damage

caused by misuse of product will not be covered by warranty.

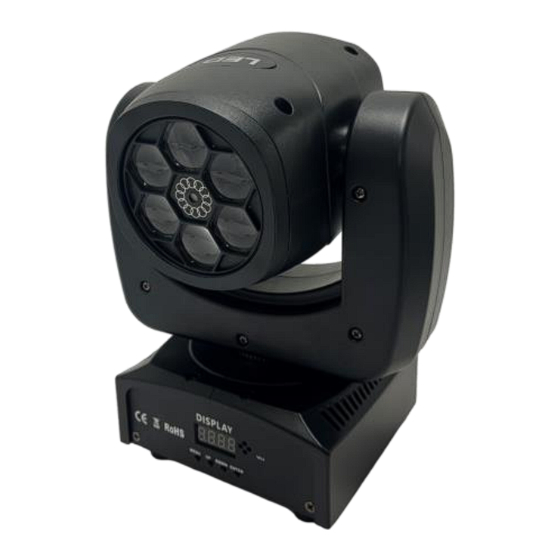

An eye-popping moving head comprising 6 powerful 10W RGBW LEDs and bright green laser which

combine to provide dazzling 3D room filling effects and washes. The unit can be operated on auto, sound-

to-light or DMX modes and can be free standing or mounted to trussing using the supplied fixing bracket.

Ideal for small stages, bars, nightclubs and mobile DJs the MHS-90L delivers smooth, feature packed

performance.

In the box:

Your MHS-90L should arrive with you in a single carton in good condition. The carton should contain

1 x main unit with bracket, 1 x UK IEC mains lead and 1 x manual.

To prevent risk of fire or electric shock, do not expose the unit to rain or damp environments. In the event

of a spillage, disconnect the mains and allow the unit to dry out naturally. Qualified personnel should then

check the unit before continuing use.

Please do not open cover, contains high voltage. This

product is not serviceable or repairable by the end user.

Please refer to qualified personnel for service and repair.

www.avsl.com

150.458UK User Manual

Table of Contents

Do you have a question about the MHS-90L and is the answer not in the manual?

Page 1 Ideal for small stages, bars, nightclubs and mobile DJs the MHS-90L delivers smooth, feature packed performance. In the box: Your MHS-90L should arrive with you in a single carton in good condition. The carton should contain 1 x main unit with bracket, 1 x UK IEC mains lead and 1 x manual. Warning: To prevent risk of fire or electric shock, do not expose the unit to rain or damp environments.
Page 2 Caution: Laser radiation Avoid pointing directly towards eyes. Laser output can cause injury if viewed directly. This product is a Class 3B laser and should only be installed and used by persons who are trained in the management of laser radiation and are able to operate in accordance within the guidance given by the Health and Safety Executive (HSE) in HS(G)95: “The Radiation Safety of Lasers used for Display purposes”.
Page 3 DMX mode: The MHS-90L can be controlled by DMX signal, simply connect the DMX signal source to the DMX input on the unit via a balanced XLR lead. Extra fixtures can be controlled by the same DMX signal by looping through the DMX out on the unit.
Page 4 White pattern 0-255 White (0-100%) Pattern rotation 0-59 0-360° mode, 60-119 Rotate clockwise (fast to slow), 120-179 Rotate anticlockwise (fast to slow), 180-255 Back and forth mode (slow to fast) Green Laser 0-255 Laser dimmer (0-100%) Macro functions 0-49 No function, 50-200 Auto mode, 201-255 Sound active mode Reset 0-240 No function, 241-255 Reset Specifications:...
