Section 3. Operation and Maintenance
Caution
Do not wipe the electrical contact area.
4. If ink remains on the nozzle plate, wipe again with a clean dry cloth.

Scan Bar Cleaning

With the Outer and Center Covers removed, locate the Hinged Roller Tower and the
Scanning Tower. Open the Towers as indicted in Figure 3-6 and Figure 3-7 and perform the
following steps:
1. On the Entry side, pull the Tab up and the Hinged Roller Tower down (to the left).

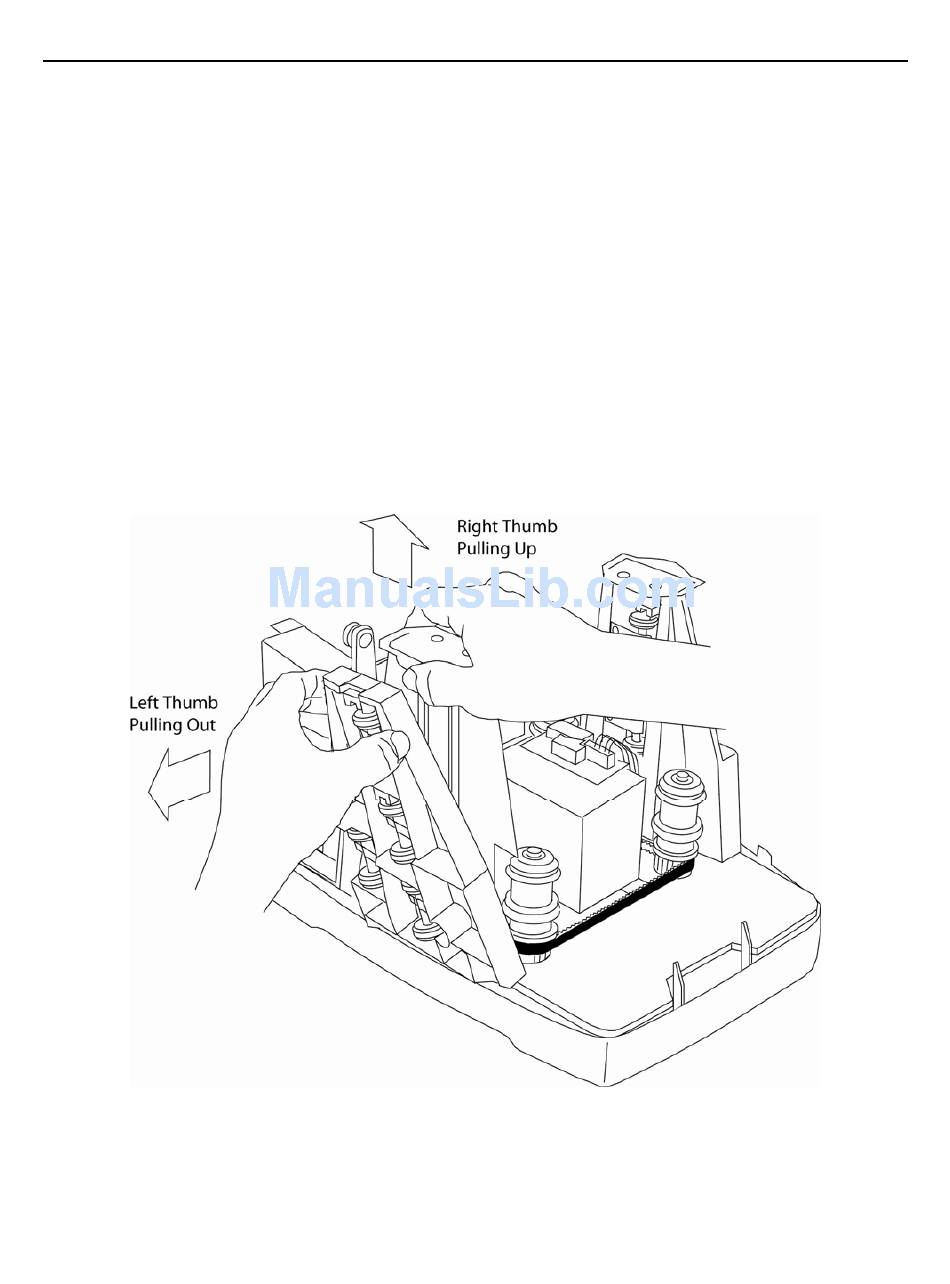

Figure 3-6. Opening Left Scan Bar
17
