SECTION 3. OPERATION AND MAINTENANCE
This section contains powering, operating, and maintenance procedures. Ensure the Excella is
installed and cabling and power are connected as described in Section 2.
POWER UP
Plug the power supply, P/N 64300098P/N, and cord 71100001, into wall power, and press the
start button. The green LED in the middle of the unit should light.
OPERATION
Check Insertion
Enter checks (one check at a time) as indicated in Figure 3-1. The left entry port light will blink
when a check is requested.

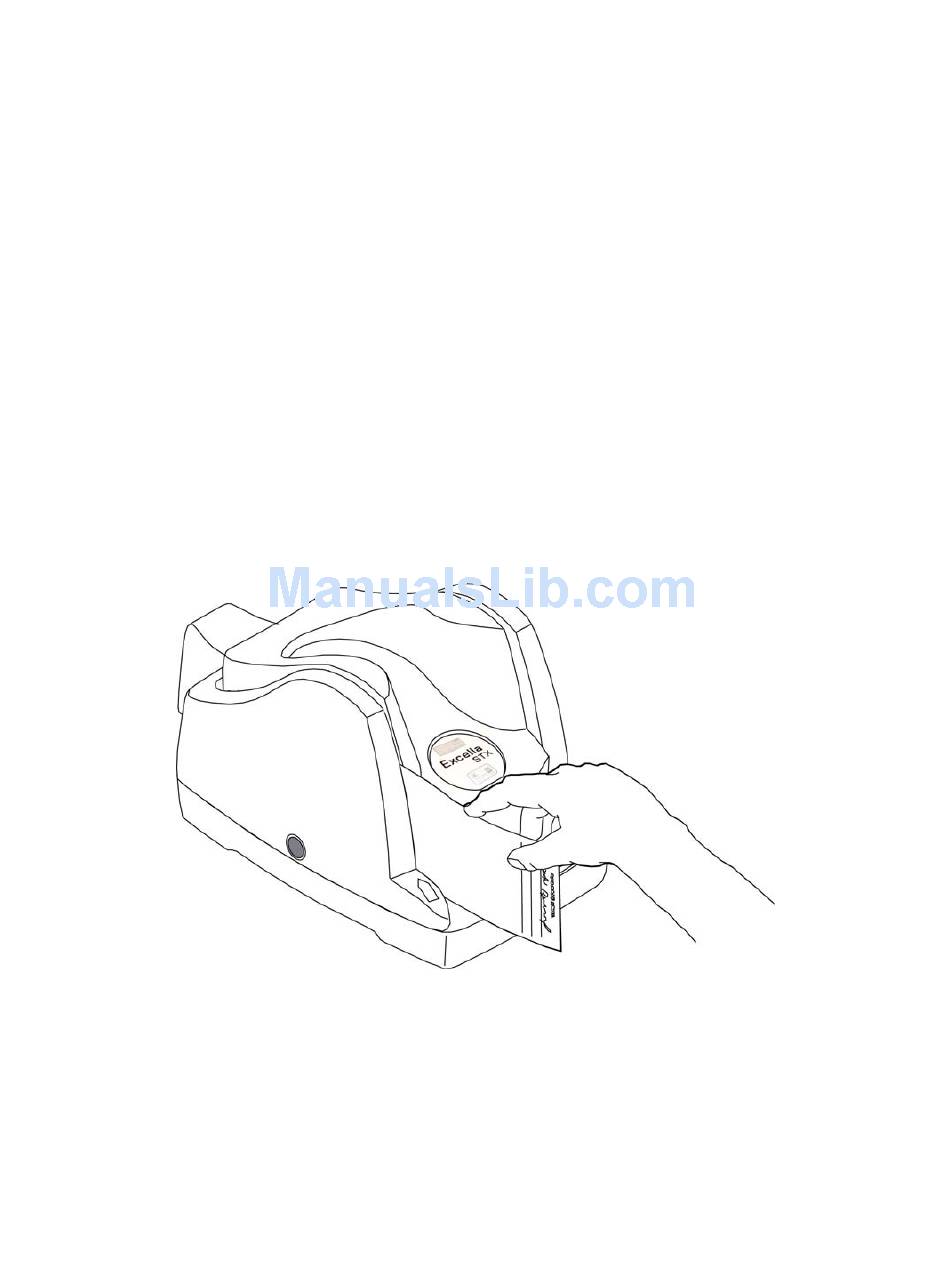

Figure 3-1. Position for Holding and Entering Check
13
