Center Cover Removal
To remove the Center Cover, perform the following:
1. Place the right-hand thumb and index finger on the front Release Buttons as indicated in
Figure 2-2.
2. Place the index finger on the rear Release Button (not shown) as indicated in the illustration.
(The location of the rear Release Button is shown in Figure 2-3.)
3. Press all three buttons and lift the cover at the same time until the cover detaches.

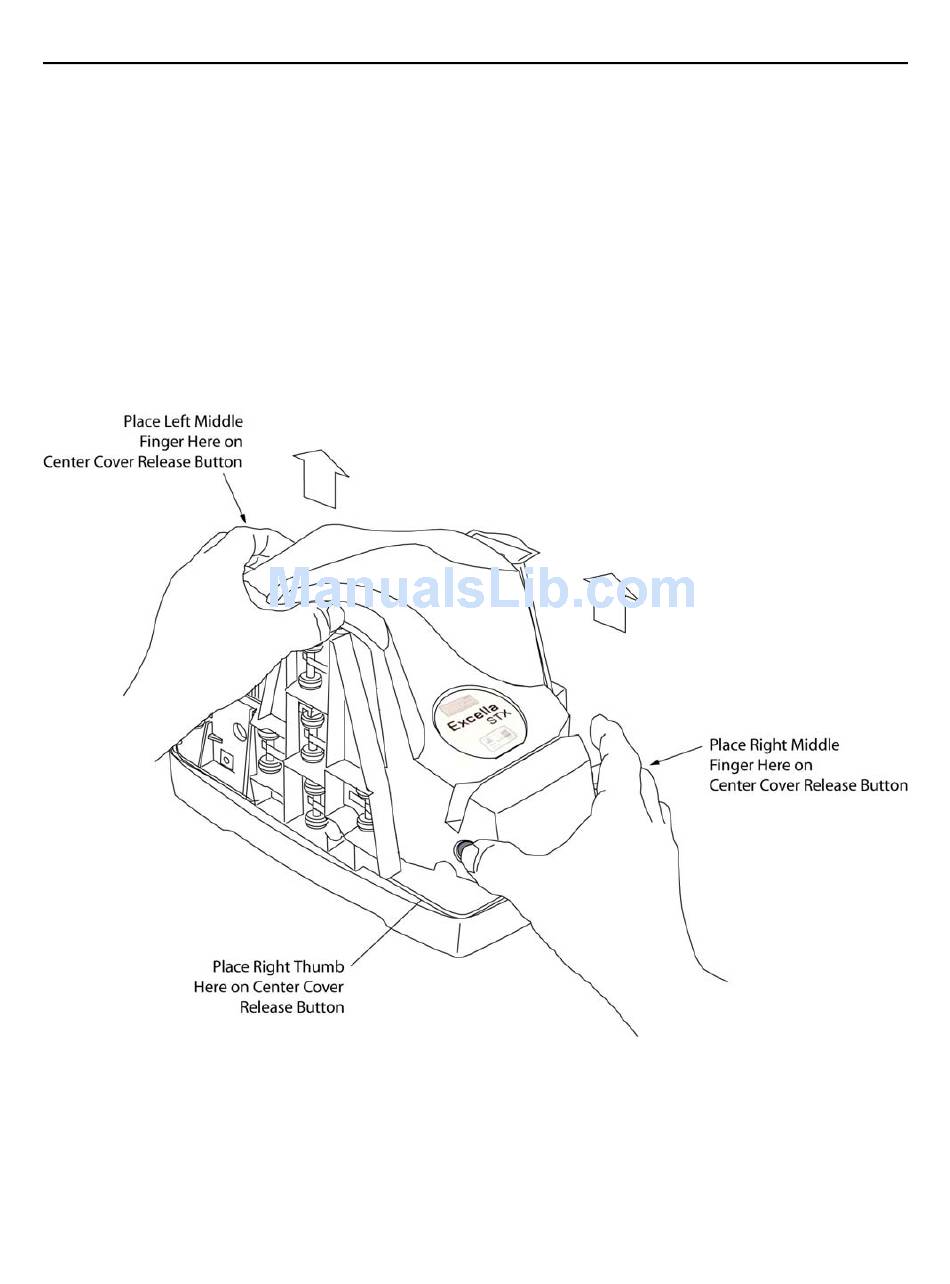

Figure 2-2. Center Cover Removal
Section 2. Installation
7
