Excella STX Installation and Operation

Outer Cover Removal

To remove the Outer Cover, perform the following:
1. Using both hands, place two index fingers on the release buttons and two thumbs on the inner
race of the Outer Cover as shown in Figure 2-1. (The left Release Button is shown; the
Right Release Button is directly opposite.)
2. As indicated in the illustration, press the two Release Buttons in, and at the same time
slightly pull the two inner race segments out until the cover detaches.
3. Lift the Outer Cover to remove it from the assembly.
6

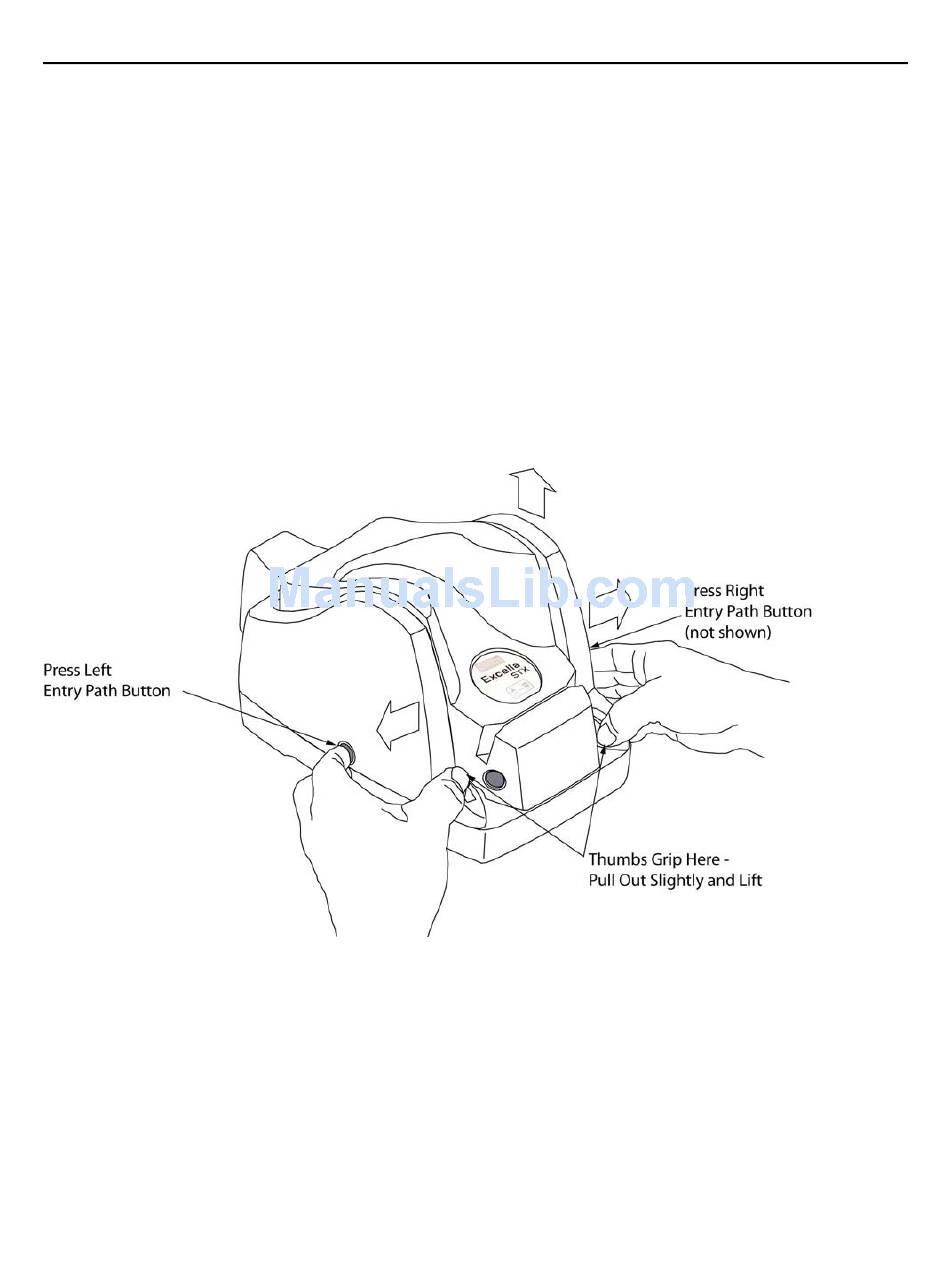

Figure 2-1. Outer Cover Removal
