Magtek Excella Quick Installation Manual

Troubleshooting/LEDs

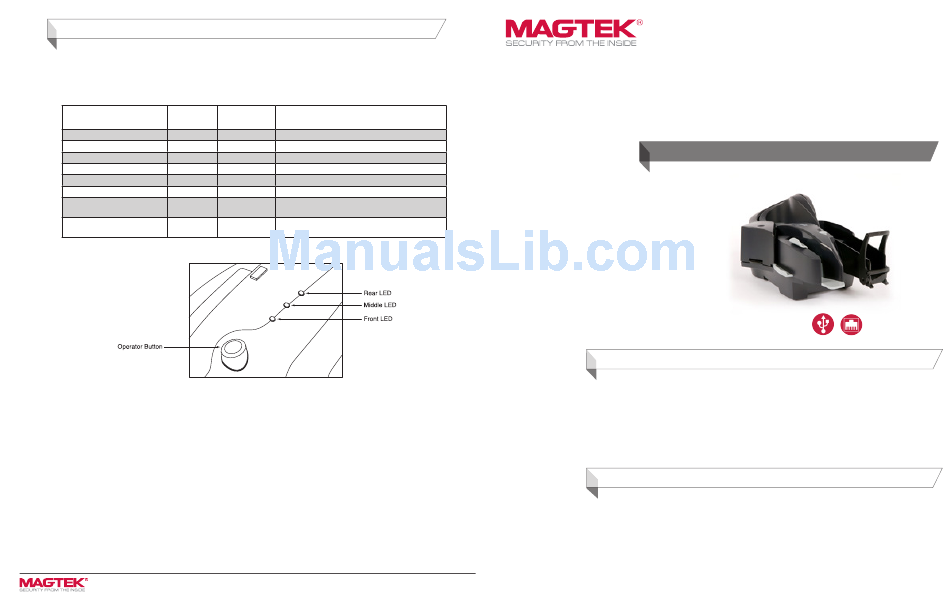

The LED indicators are shown in Figure 5. All three LEDs are able to show three colors: green, red, or amber. Each LED indicator has been
assigned a specific reporting function (see Table 1 below):
• Front LED: reports MICR read status
• Middle LED: reports path status
• Rear LED: reports unit status
Front LED Middle LED Rear LED
(MICR status) (Path status) (Unit status)
Amber Amber Amber
Green Green Green
X X Flash Amber
Flash Red X X
Flash Green X X
Flash Red/Green X X
X Amber X
X Flash Red X
Figure 5. LED Indicators
MagTek ® Inc., 1710 Apollo Court, Seal Beach CA 90740 p 562-546-6400 | f 562-546-6301 | 800-788-6835 | www.magtek.com
Description
Unit is initializing
Power on, everything is OK
Initializing network connection
After check read: MICR read error
After check read: good MICR read
MICR noise detected (if enabled): relocate unit
Left or right access door unlatched (if feature is in-
stalled): close and latch access guides
Paper jam: remove jam and hit operator button to
clear
Registered to ISO 9001:2000 © Copyright 2015 MagTek, Inc. PN D99800048 rev 20 8/15
Small Document Scanner
Quick Installation Guide
Product Description
When high performance check processing is an integral part of your application, Excella delivers both the speed and
efficiency you need. Excella is the ideal desktop check reading device for early-image capture and programmable
endorsement message in high-volume electronic check applications, including BOC, Check 21 and remote deposit capture.
With a small footprint and striking modern design, Excella is an auto-feed check reader which captures both the front and
back image of checks in a single pass at 45+ DPM. The automatic feeder has a capacity of up to 70 documents to easily
support even the most active check processing applications. The easy-maintenance, high-speed unit is API and protocol
compatible with MagTek's Excella STX single-feed scanner for optimum application flexibility.
Note: More detailed instructions can be found in Excella's Installation and Operation Manual (P/N 99875310).
Power and Installation
The following is a summary of the major installation steps for Excella:
1.
Unpack Excella.
2.
Install ink cartridge (the cartridge is shipped uninstalled).
3.
Insert API/Demo CD in drive and install the Demo software.
4.
Connect interface cable (USB or Ethernet) and power cable to Excella.
5.
Connect power cord to AC wall outlet.
6.
Connect interface cable to PC.
7.
Depending on your interface, continue with USB INSTALLATION or ETHERNET INSTALLATION below.
