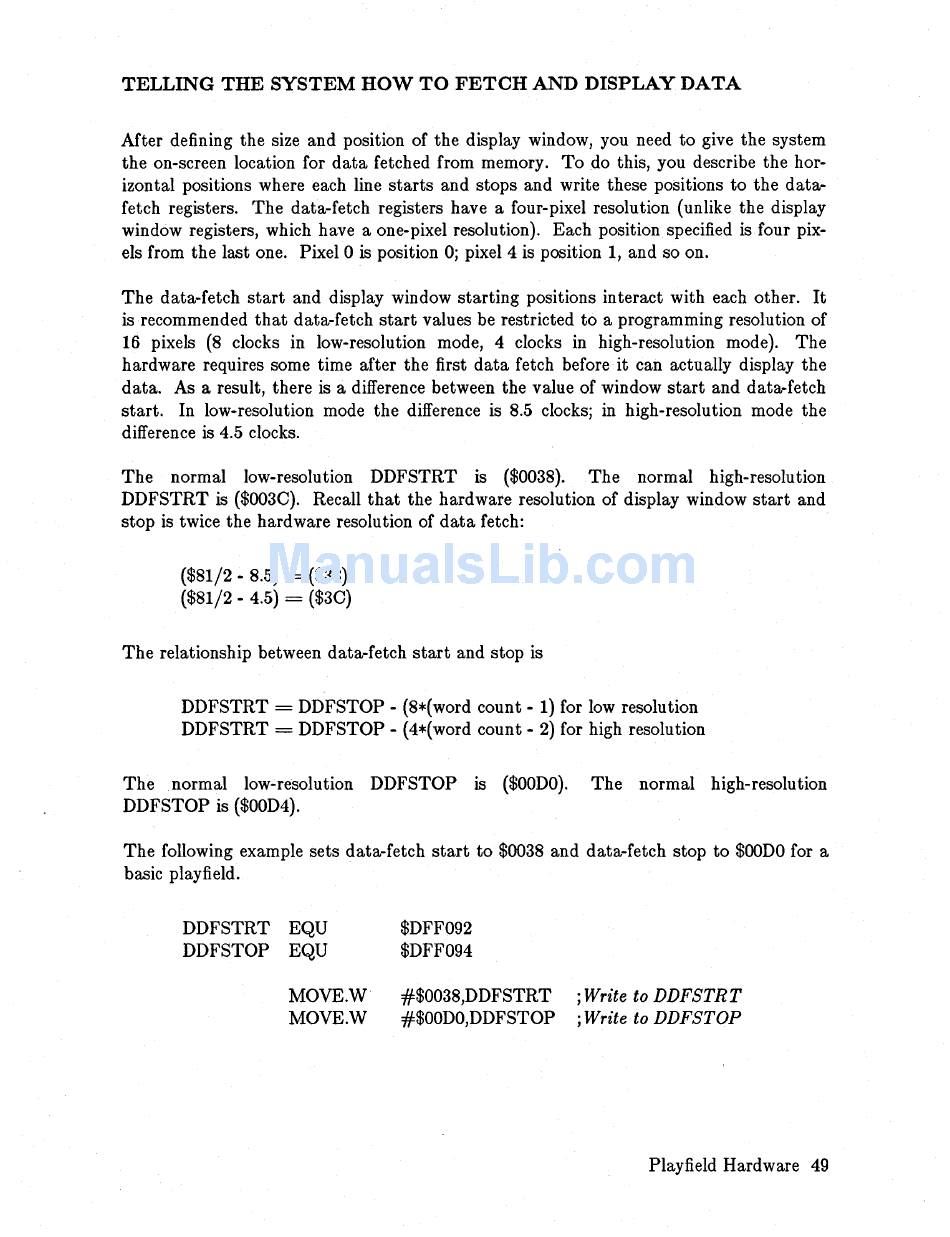

TELLING THE SYSTEM HOW TO FETCH AND DISPLAY DATA
After defining the size and position of the display window, you need to give the system
the on-screen location for data fetched from memory. To do this, you describe the hor-
izontal positions where each line starts and stops and write these positions to the data-
fetch registers. The data-fetch registers have a four-pixel resolution (unlike the display
window registers, which have a one-pixel resolution). Each position specified is four pix-
els from the last one. Pixel 0 is position 0; pixel 4 is position 1, and so on.
The data-fetch start and display window starting positions interact with each other. It
is recommended that data-fetch start values be restricted to a programming resolution of
16 pixels (8 clocks in low-resolution mode, 4 clocks in high-resolution mode). The
hardware requires some time after the first data fetch before it can actually display the
data. As a result, there is a difference between the value of window start and data-fetch
start. In low-resolution mode the difference is 8.5 clocks; in high-resolution mode the
difference is 4.5 clocks.
The normal low-resolution DDFSTRT is ($0038). The normal high-resolution
DDFSTRT is ($003C). Recall that the hardware resolution of display window start and
stop is twice the hardware resolution of data fetch:
($81/2 - 8.5)
=
($38)
($81/2 - 4.5)
=
($3C)
The relationship between data-fetch start and stop is
DDFSTRT
=
DDFSTOP - (8*(word count - 1) for low resolution
DDFSTRT
=
DDFSTOP - (4*(word count - 2) for high resolution
The normal low-resolution DDFSTOP is ($OODO). The normal high-resolution
DDFSTOP is ($00D4).
The following example sets data-fetch start to $0038 and data-fetch stop to $ooDO for a
basic playfield.
DDFSTRT EQU
DDFSTOP EQU
MOVE.W
MOVE.W
$DFF092
$DFF094
#$0038,DDFSTRT
#$OODO,DDFSTOP
; Write to DDFSTRT
; Write to DDFSTOP
