UNPACKING THE TROWEL
The trowel is shipped with the handlebar in the folded or
stowed position (Figure 5).
1. To place the handlebar in the operational position,
simply turn the star wheel counterclockwise to release
it from its locked/stowed position.
2. Next, pull back on the handlebar and place the
handlebar in the desired position. Turn star wheel
clockwise to lock handlebar firmly in place so that it
will not move or slip.
OPERATIONAL
POSITION
FOLDED
POSITION
STAR
WHEEL

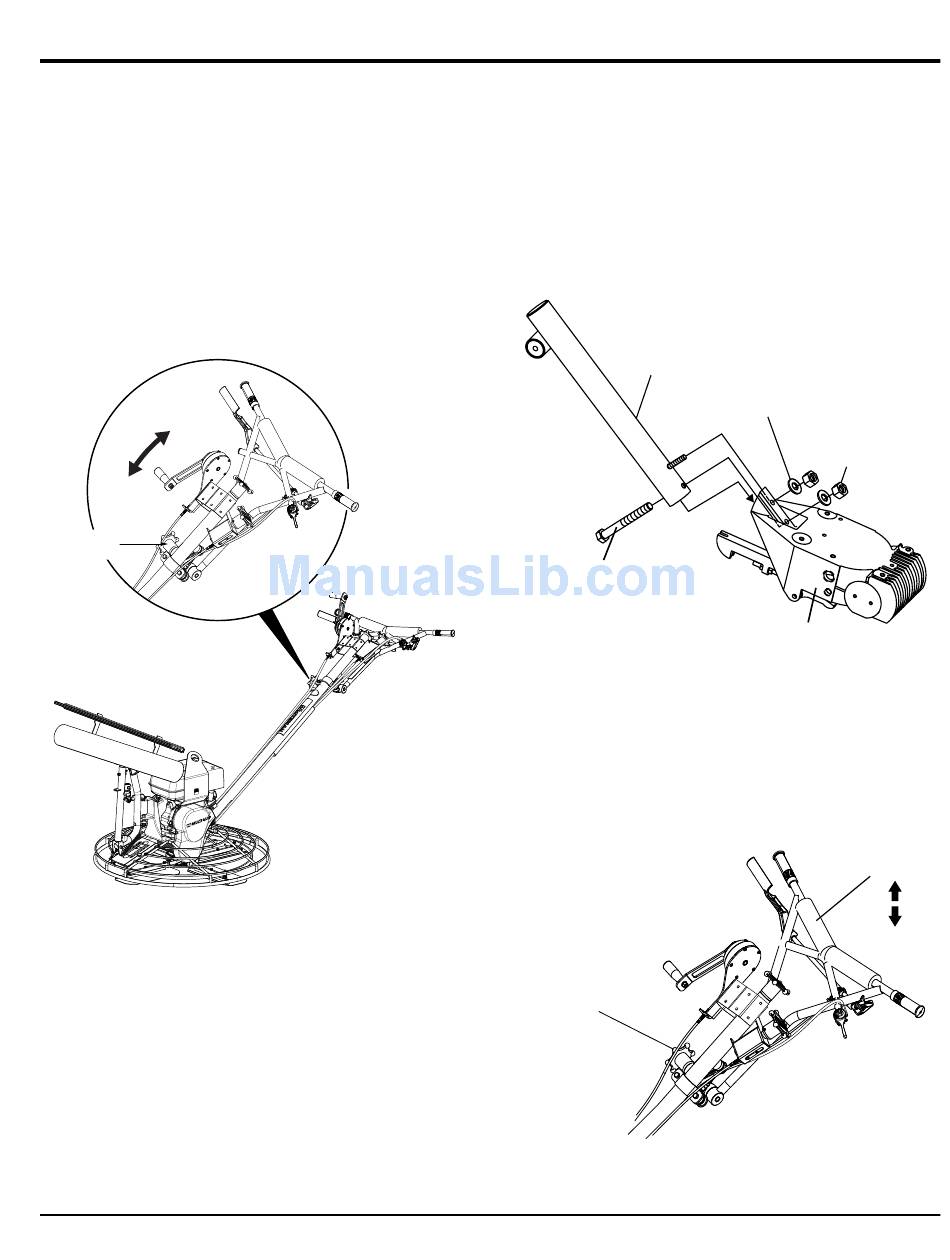

Figure 5. Handlebar (Operational Position)
PRO46 SERIES WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (8/20/15) — PAGE 19

ASSEMBLY AND INSTALLATION

ASSEMBLY AND INSTALLATION
Before the trowel can be put into operation there are some
components that must be installed. This section provides
general instructions on how to install those components.
MAIN HANDLE TUBE INSTALLATION
1. Attach the main handle tube to the gearbox using the
supplied hardware as shown in Figure 6.
MAIN HANDLE
(TUBE)
3/8-16 X 3.25"
HHC SCREW
Figure 6. Handle Installation
2. The handlebar is already attached to the main handle
tube.
3. If readjustment is necessary, loosen the star wheel
as shown in Figure 7 and move the handlebar to the
desired position.
HANDLEBAR
HEIGHT
ADJUSTMENT
STAR WHEEL
Figure 7. Handlebar Adjustment
3/8" FLAT
WASHER
3/8-16"
NYLOC NUT
GEARBOX
HANDLEBAR
