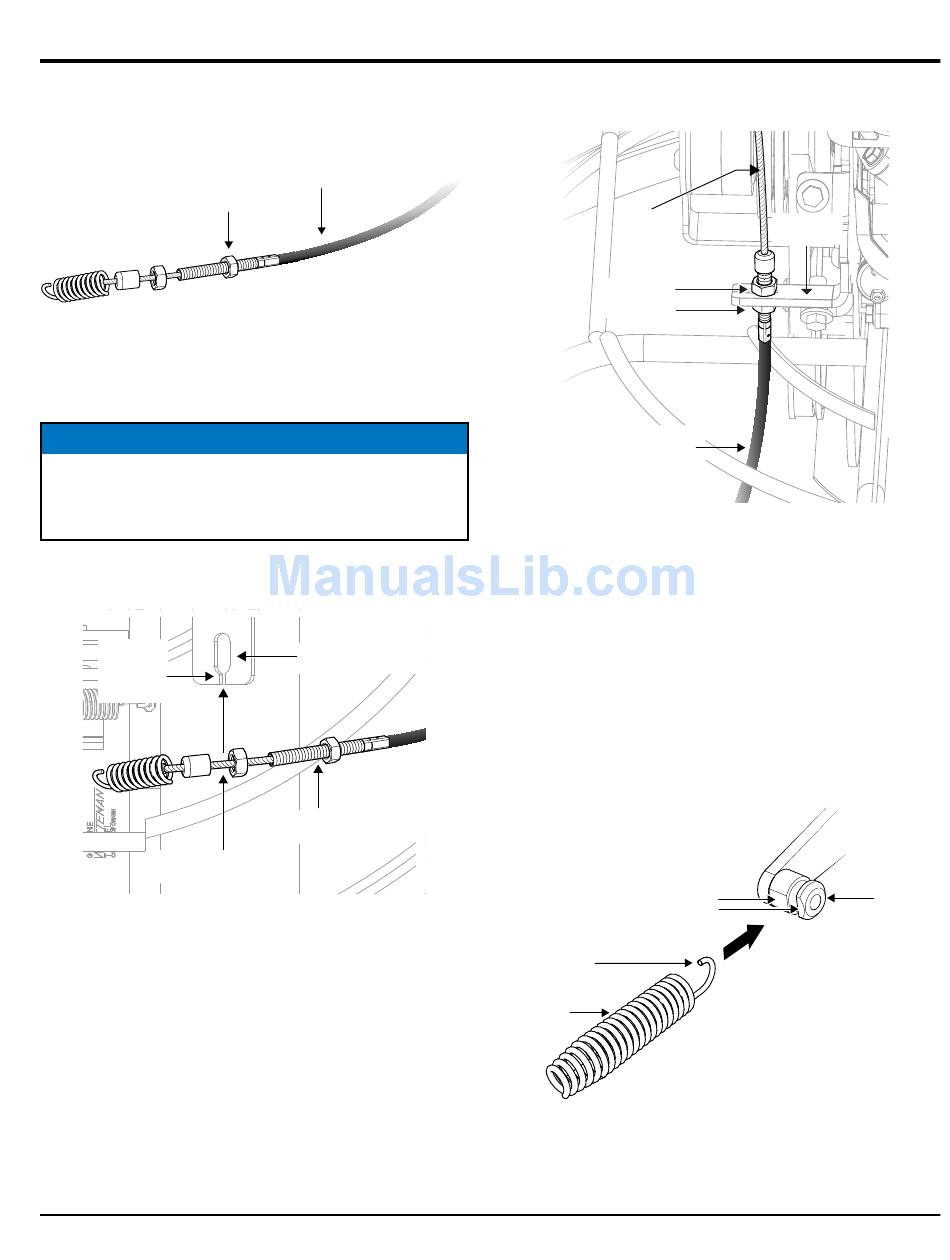

MULTIQUIP PRO46 Operation And Parts Manual page 23

7. Adjust the 5/16" inner nut (Figure 17) for a 7/8" distance
from the threaded end on the clutch cable to the inner
nut.
5/16"
INNER
NUT
Figure 17. Inner Nut Adjustment
NOTICE
Positioning the inner nut 7/8" from the clutch cable's
threaded end will help ensure proper clutch gap
adjustment.
8. Insert the exposed cable (Figure 18) into the cable slot
on the cable anchor.
CABLE
ANCHOR
CABLE
SLOT
EXPOSED
CABLE
Figure 18. Inserting Clutch Cable
Into Cable Anchor
PRO46 SERIES WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (8/20/15) — PAGE 23
CLUTCH CABLE
CABLE ANCHOR
THREADED END
CLUTCH CABLE
ASSEMBLY AND INSTALLATION
9. Place outer nut (Figure 19) onto the threaded end of the
clutch cable. Hand tighten nut against the cable anchor.
EXPOSED
CABLE
OUTER NUT
INNER NUT
HOUSING
Figure 19. Attaching Clutch Cable
10. Using two 1/2" wrenches tighten the inner and outer
nut against the cable anchor.
11. Connect the clutch cable to the clutch anchor by placing
the spring loop over the clutch anchor flats as shown
in Figure 20. Use needle nose pliers to slide the spring
loop fully into the groove.
SPRING
LOOP
CLUTCH
CABLE
SPRING
Figure 20. Spring Loop Attachment
CABLE
ANCHOR
CABLE
To Cable Anchor
CLUTCH
ANCHOR
FLAT
CLUTCH
ANCHOR
.
