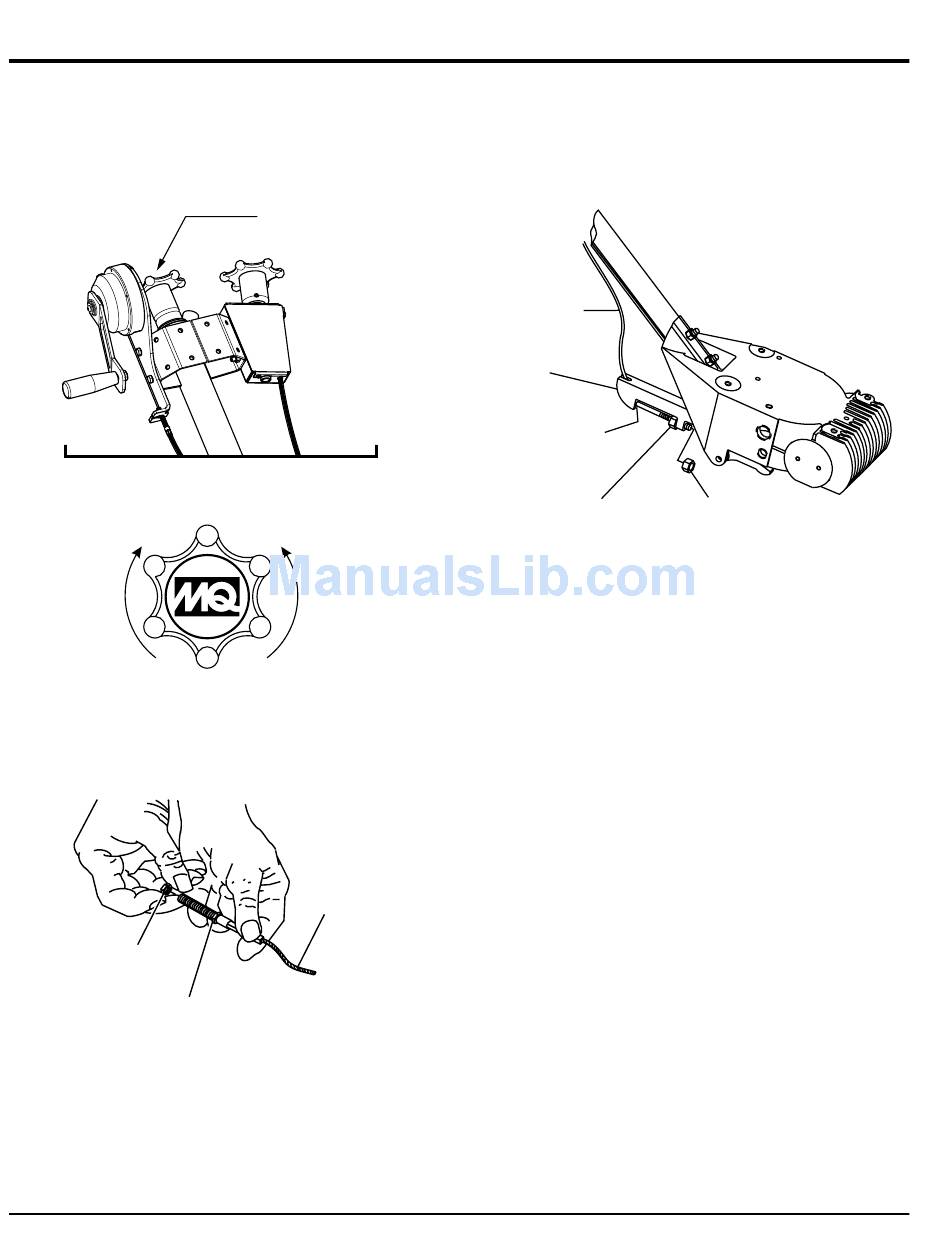

4-BLADE PITCH CABLE INSTALLATION
1. To pitch the 4-blades flat, simply turn the star wheel
counterclockwise.This releases tension on the pitch
cable (Figure 8).
STAR WHEEL
INCREASE
BLADE PITCH
(CW)
Figure 8. Adjusting 4-Blade Pitch Cable
2. Remove brass set nut #1 from the blade pitch cable
end. See Figure 9.
BRASS SET
NUT #1
BRASS SET
NUT #2
Figure 9. 4-Blade Pitch Cable
PAGE 20 — PRO46 SERIES WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (8/20/15)
4-BLADE STAR
WHEEL PITCH KNOB
DECREASE
BLADE PITCH
(CCW)
BLADE
PITCH
CABLE
ASSEMBLY AND INSTALLATION
3. Thread the brass set nut #2 towards the cable as far
as possible. See Figure 9.
4. Insert the cable end through the yoke eyelet (Figure 10).
Tighten brass set nut #1 by hand to remove all the slack
from the cable.
BLADE
PITCH
CABLE
YOKE
YOKE
EYELET
BRASS SET
NUT #2
Figure 10. Cable Yoke Attachment
5. Using a wrench, tighten the brass set nut #2 up against
the yoke boss. This will lock the cable in place.
6. Using a wrench, tighten the brass set nut #1 against
the yoke boss.
BRASS SET
NUT #1
