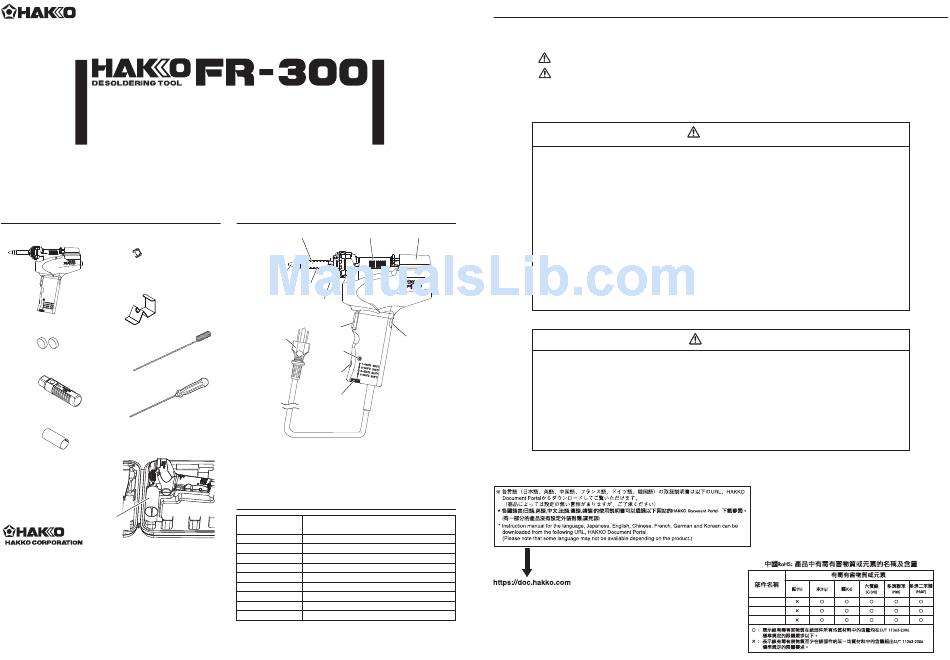

Hakko Electronics FR-300 Instruction Manual

Instruction Manual
Thank you for purchasing the HAKKO FR-300 Desoldering Tool.
Please read this manual before operating the HAKKO FR-300.
Keep this manual readily accessible for reference.
■ PACKING LIST
HAKKO FR-300 × 1 Pre-filter (ALUM)
× 1
Iron holder (Simple type) × 1
Ceramic paper filter
(L) × 2
Cleaning pin
for ø1 nozzle 1
×
Nozzle changing tool
×1
Cleaning pin for
heating core 1
×
Instruction manual
× 1
Protection cover × 1
* Before storing the unit in the carrying
case, be sure to insert the nozzle into
the protection cover to prevent risk of
Carrying case
a burn and melting the carrying case.
Carrying case
Protection
cover
HEAD OFFICE
4-5, Shiokusa 2-chome, Naniwa-ku, Osaka 556-0024 JAPAN
TEL:+81-6-6561-3225 FAX:+81-6-6561-8466
http://www.hakko.com E-mail:sales@hakko.com
OVERSEAS AFFILIATES
U.S.A.: AMERICAN HAKKO PRODUCTS, INC.
TEL: (661) 294-0090 FAX: (661) 294-0096
Toll Free (800)88-HAKKO
4 2 5 5 6
http://www.hakkousa.com
HONG KONG: HAKKO DEVELOPMENT CO., LTD.
TEL: 2811-5588 FAX: 2590-0217
http://www.hakko.com.hk
E-mail:info@hakko.com.hk
SINGAPORE: HAKKO PRODUCTS PTE., LTD.
TEL: 6748-2277 FAX: 6744-0033
http://www.hakko.com.sg
E-mail:sales@hakko.com.sg
Please access to the following address for the other Sales affiliates.
http://www.hakko.com
Copyright © 2015 HAKKO Corporation. All Rights Reserved.
Desoldering Tool
■ PART NAMES
Heating element Filter pipe
Nozzle
Element cover
assembly
Joint cover
assembly
Trigger
Plug
CAL
LED lamp
Temp. control knob
■ SPECIFICATIONS
Power consumption 100V 98W (50/60Hz) 110V 122W (50/60Hz) 120V 140W (60Hz)
220V 105W (50/60Hz) 230V 118W (50/60Hz) 240V 130W (50/60Hz)
Temperature range 350 - 500℃ (660 - 930℉)
Nozzle to ground potential < 2 mV
Nozzle to ground resistance < 2 Ω
Vacuum generator Diaphragm pump
Vacuum pressure 81kPa (610mmHg)
L
Suction flow 11 / min
Dimensions 226 (H) × 210 (W)mm / 8.9 × 8.3 in.
Weight 0.52 kg / 1.1 lb.
Standard nozzle ø1.0 mm / 0.04 in. (Part No. N50-04)
*Specifications and design are subject to change without notice.
■ WARNINGS AND CAUTIONS
Warnings, cautions and notes are placed at critical points in this manual to direct the operator's
attention to significant items. They are defined as follows:
■ Safety considerations.
Be very careful when handling the desoldering tool.
During operation, the tip of the nozzle will rise to a temperature of 350 - 500℃ / 660 - 930°F,and the
surrounding areas will become extremely hot.
• After use, remove the cord from the power outlet.
• Never leave a plugged-in desoldering tool next to flammable materials.
• Never wave or swing the desoldering tool around, as hot solder from the tip may fly off and cause injury.
• Be especially careful when other people are in the area. Warm them of the danger of being burned by the hot
• This appliance can be used by children aged from 8 years and above and persons
Pump cover
• Children shall not play with the appliance.
Release • Cleaning and user maintenance shall not be made by children without supervision.
button
• Wait until the desoldering tool has cooled completely before putting it away.
● To prevent accidents or damage to the HAKKO FR-300, be sure to observe the following:
Power switch
● The HAKKO FR-300 is an electrical tool used to melt and absorb solder in order to free components from the printed
circuit boards, etc. The desoldering tool should not be used for any other purpose as this may damage the product or
cause an accident or injury.
● Be careful when handling the desoldering tool. Do not drop it or otherwise subject it to excessive shocks as this may
impair its performance or cause damage or failure.
● Because the desoldering tool is extremely hot during normal use, proper maintenance is essential. Read the
"MAINTENANCE" section of these instructions and clean the designated areas and/or replace parts when necessary.
● Use only genuine HAKKO FR-300 replacement parts. The use of other replacment parts may impair performance of
cause damage or injury.
● If the pump does not operate, immediately clean the nozzle and heater.
● The unit is for counter or workbench use only.
2015.4
MA02593XZ150414
WARNING: Failure to comply with a WARNING may result in serious injury or death.
CAUTION : Failure to comply with a CAUTION may result in injury to the operator, or
damage to the items involved. Two examples are given below.
NOTE : A NOTE indicates a procedure or point that is important to the process
being described.
WARNING
desoldering tool.
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in safe way and understand the hazards involved.
CAUTION
