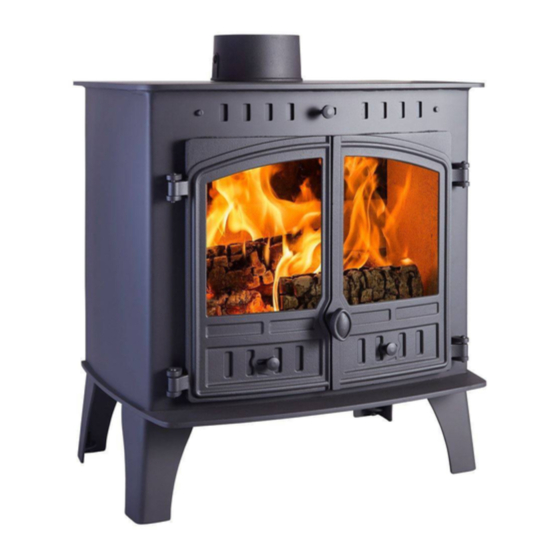

I N G L E N O O K
C E V . I I
M U L T I F U E L
C L E A N B U R N
S T O V E
Installation and Operating Instructions
An accredited competent person must carry out the installation of this appliance;
alternatively, your local Building Control Officer can approve the completed
installation, should a non-accredited engineer undertake the installation. It is an
offence, under UK law, not to comply with this advice. Please hand these instructions
to the stove user when the installation is complete. Leave the system ready for
operation and instruct the user in the correct use of the appliance and operation of
controls.
v09.09
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hunter Stoves Inglenook CEV. II
Summary of Contents for Hunter Stoves Inglenook CEV. II
- Page 1 I N G L E N O O K C E V . I I M U L T I F U E L C L E A N B U R N S T O V E Installation and Operating Instructions An accredited competent person must carry out the installation of this appliance;...
-
Page 2: Technical Specification
Inglenook CE Technical Specification Stove Mass 148 kg Wood Total Efficiency 83.6 % Nominal Heat Output 7.3 KW Mean CO Emission (at 13% O2) 0.30 % Mean Flue Gas Temperature 214 °C Flue Gas Mass Flow 5.5 g/s Ancit Total Efficiency 68.4 % Nominal Heat Output 6.0 KW... -
Page 3: Important Warning
Assembly Instructions PLEASE READ THESE INSTRUCTIONS CAREFULLY It is important that your stove is correctly installed, as Hunter Stoves Limited cannot accept responsibility for any fault arising through incorrect use or installation. Important Warning This stove must not be installed into a chimney that serves any other heating appliance. - Page 4 Fire Bricks & Baffle The Fire Bricks, in this appliance, are factory fitted. The following set of photos show the removal sequence that you will need to employ when servicing your Hunter stove. Side Bricks Remove all of the Riddling Bars, Cam Bar, Catch Bar and Ashpan.
-
Page 5: Installation Instructions
Installation Instructions READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALATION. These instructions cover the basic principles to ensure satisfactory installation of the stove, although detail may need slight modification to suit particular local site conditions. In all cases the installation must comply with current Building Regulations, Local Authority Byelaws, European and national standards and other specifications or regulations as they affect the installation of the stove. -
Page 6: Installation
Installation Chimney The chimney height and the position of the chimney terminal should conform to Building Regulations. Check that the chimney is in good condition, dry, free from cracks and obstructions. The diameter of the flue should not be less than 150mm and not more than 230mm. If any of these requirements are not met, the chimney should be lined by a suitable method. -
Page 7: Material Clearances
Material Clearances The stove can be recessed in a suitable sized fireplace but a permanent free air gap of at least 150mm must be left around the sides and top and at least 50mm at the back of the stove to obtain maximum heat output and for access to the rear of the stove. - Page 8 Clearances to Wooden Beams All dimensions stated are minimum 150 mm and assume that additional heat Wooden Beam shielding is not installed 150 mm 6” Flue Pipe – Twin Wall 120 mm 450 mm 6” Flue Pipe – Single Wall Wooden Beam Inglenook Flat Top Stove Clearances to Wooden Beams...
-
Page 9: Commissioning And Handover
Commissioning and Handover Upon completion of the installation, allow a suitable period of time for any fire cement and mortar to dry out. A small fire may then be lit and checked to ensure the smoke and fumes are taken from the stove up the chimney and emitted safely to atmosphere. -
Page 10: Operating Instructions
Operating Instructions This appliance is not suitable for use in a shared flue This appliance should not be operated with the doors open Aerosol Sprays Do not use an aerosol spray on or near the stove when it is alight. Air Controls This stove has been designed to burn efficiently with a relatively low output, for its size. - Page 11 Multifuel Grate Your Hunter Stove is fitted with a locomotive type grate. So that de-ashing can be carried out cleanly and easily, it is riddled from the outside of the stove with the doors closed. The grate is designed to burn both wood and solid fuels.
- Page 12 Burn only dry, well-seasoned wood, which should have been cut, split and stacked for at least 12 months, with free air movement around the sides of the stack to enable it to dry out. Burning wet or unseasoned wood will create tar deposits in the stove and chimney and will not produce a satisfactory heat output. Lighting the Stove We recommend that you have two or three small fires before you operate your stove to its maximum heat output.
-
Page 13: Safety Notes For Your Guidance
Safety notes for your guidance FIRES CAN BE DANGEROUS – Always use a fireguard in the presence of children, the elderly or the infirm. The fireguard should be manufactured in accordance with BS 6539 – Fireguards for use with solid fuel appliances. DO NOT OVERFIRE –... -
Page 14: General Maintenance
Rope Check the rope around the door and glass. If rope is becoming detached, use Hunter Stoves rope glue to reattach it. If the rope is in a poor condition, a replacement rope kit may be ordered from the Hunter... - Page 15 Chimney and Flueways It is important that the chimney, flueways and any connecting flue pipe are swept regularly. This means at least once a year for smokeless fuels and at least twice a year for wood and other fuels. The baffle plate will need to be removed from its supports in order to sweep the chimney (see assembly instructions).
-
Page 16: Right Hand Door
INGLENOOK SPARES Only Hunter Stoves authorised spares should be used with this appliance RIGHT HAND DOOR Right Hand Door Door Glass (HHR08/084) (HHR08/082) Glass Gasket (HHR08/081) Glass Clip (HHR08/046) Door Knob (HCR06/059) Glass Clip Screw (FSJM05008SS M8 Full Nut (FNFM08) - Page 17 STOVE BODY ASSEMBLY – PART SECTION – MULTIFUEL Flue Collar (CH08/030) Flue Cover (CH08/031) Side Plates (HIN03/032 A/B) Side Bricks (HIN03/031) Top Air Control Gasket (HHR14/071) Slider Plate (HHR14/070) Recouping Baffle Slider (HIN03/039) (HHR14/069) Deflector Turbo Bar (HHR14/072) (HHR08/140) Slider Shaft (HHR14/073) Rear Brick Slider Knob...
