Summary of Contents for German pool TOS-723D

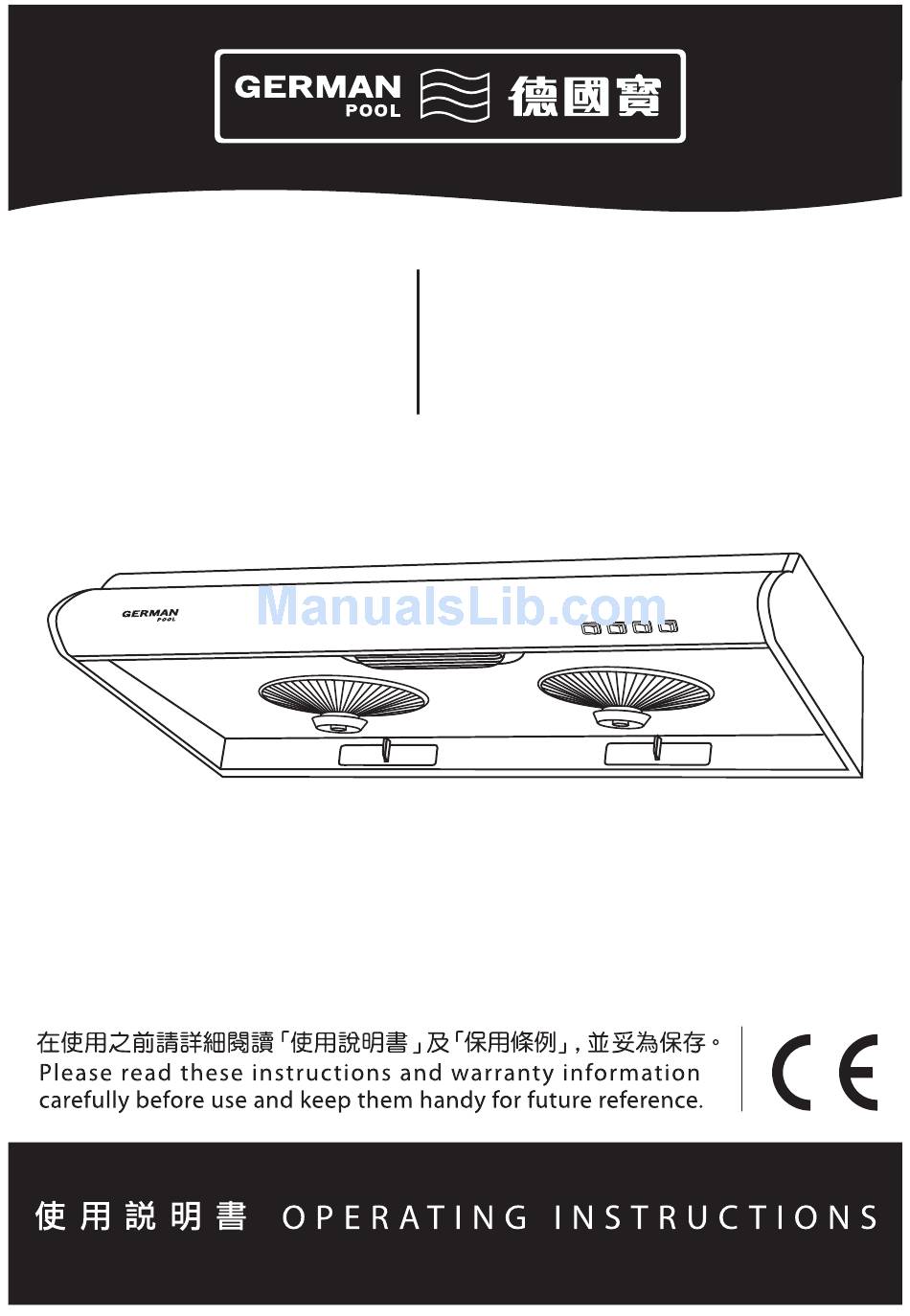

- Page 1 TOS-723D 台 式 抽 油 煙 機 Wall-Mount Range Hood TOS-923D...
- Page 2 請即進行保用登記﹗ 有關保用條款細則，請看本說明書最後一頁。 Please register your warranty information now ! For Warranty Terms & Conditions, please refer to the last page of these operating instructions.
-
Page 3: Table Of Contents
目錄 Table of Contents 注意事項 Notice Before Use 產品結構 Product Structure 安裝說明 Installation Instructions 電路圖 Wiring Diagram 操作說明 Operating Instructions 常見故障及處理 Troubleshooting 清潔與保養 Care & Maintenance 更換慳電膽步驟 Fluorescent Lamp Replacement Procedures 技術規格 Technical Specifications 保用條款 Warranty Terms & Conditions... -
Page 4: 注意事項 Notice Before Use
Do not let them use the appliance without 3. 為免發生危險，若發現電源線有任何損壞， supervision. 必須停止使用產品，並立即聯絡本公司或 3. If the power supply cord is damaged, do not 合資格技術人員進行更換。 operate the appliance. Contact German Pool or licensed technician for a replacement 4. 清潔、維修或拆除抽油煙機前應先切斷 immediately. 電源。 4. Disconnect the power supply before cleaning, 5. 電源插座必須安裝接地線。... - Page 5 11. To protect electrical parts, do not splash or 機件。 spray the range hood with water. 12.德國寶抽油煙機抽吸力特強，大部分油 12. German Pool range hood has high venting efficiency. Most of the grease vapor will be 煙在抽油煙機操作時已被抽出室外，故 exhausted through the air vent when the 此集油器的油污量很少，請放心使用。...
-
Page 6: 產品結構 Product Structure
產品結構 Product Structure 1. Light Bulb 照明燈 2. Control Panel 控制面板 3. Oil Collector (Small) (1 pair) 防漏油杯 一對 4. Bottom Cover 底蓋 5. Fan (1 pair) 風機 一對 6. Oil Collector (1 pair) 油杯 一對... -
Page 7: 安裝說明 Installation Instructions
安裝說明 Installation Instructions Pre-installation Notice 安裝前注意 The range hood must be installed and repaired by 必須由專業合資格技術人員安裝及維修抽油 authorized qualified technicians. 煙機。 Before installation, plug in and check if all switches 安裝前先接上電源檢查照明與摩打開關是否 are functional. 正常操作。 Installation Environment 周圍環境 For efficient air extraction, avoid opening too many 抽油煙機四周應避免門窗過多，而產生過大之... -
Page 8: 電路圖 Wiring Diagram
電路圖 Wiring Diagram SAFETY SWITCH ON / OFF SPEED TURBO BLUE GREY GREY BLACK GREEN BLACK BLUE BROWN PLUG LIGHT BULB CAPACITOR Motor Motor... -
Page 9: 操作說明 Operating Instructions
操作說明 Operating Instructions Important 重要事項 1. The exhaust duct must be exposed outdoors. 1. 抽油煙機風管必須連接於屋外，嚴禁直 接排進屋內。 2. There should be adequate ventilation in the room when a gas cooking range or other 2. 使用氣體爐或其他燃料烹飪時，室內必須 fuels are in use for cooking. 有足夠通風空間。... -
Page 10: 常見故障及處理 Troubleshooting
常見故障及處理 Troubleshooting If you encounter the following common 如遇以下一般性故障，請按以下指示處理， troubles, please solve according to the following 如仍處理不了或未發現故障原因時，請與本 instructions. If the problem cannot be solved or 公司維修服務中心聯繫。 a cause cannot be found, please contact our customer services centre. Note: For safety purpose, do not dismantle the 注意：為安全著想，再次特別提醒，請勿自... -
Page 11: 清潔與保養 Care & Maintenance
清潔與保養 Care & Maintenance Important 重要事項 - To ensure the most optimum efficiency, the - 為達致本產品的最佳效能，用戶應最少 range hood must be cleaned at least once a 每週清洗抽油煙機一次。 week. - Power plug must be disconnected before - 清潔、保養及維護前必須先拔掉電源 cleaning and repair. 插頭。 - Use mild detergent to clean surface of the - 每天使用完畢後，可於抽油煙機外部用中... - Page 12 清潔與保養 Care & Maintenance 開關 Switch 安全開關 Safety Switch 機箱 Hood Body 油杯 Oil Container 馬達 Motor 風輪 Turbine Impeller 接油盤 Oil Collecting Tray 鎖緊帽 Locking Cap 底蓋 Bottom Cover 可拆螺絲 Screws 護網 Safety Mesh 小油碟 Oil Cup 3. Detach the oil collecting trays by turning 3.
-
Page 13: 更換慳電膽步驟 Fluorescent Lamp Replacement Procedures
更換慳電膽步驟 Fluorescent Lamp Replacement Procedures 取出慳電膽 裝回慳電膽 Take out Fluorescent Lamp Replace Fluorescent Lamp 1. 使用十字螺絲批打開燈罩。 1. 將新的慳電膽以順時針方向旋轉裝入。 Loosen the lamp cover screw by Replace the new Fluorescent Lamp by screw driver. rotating in clockwise direction. 2. 將燈罩往後拉即可取出。 2. 將燈罩往前推即可固定。 Pull the lamp cover out as shown in the Push the lamp cover in as shown in the following. -
Page 14: 技術規格 Technical Specifications
技術規格 Technical Specifications 型號 Model TOS-923D TOS-723D 電壓 Voltage / 頻率 Frequency 220-240 V / 50 Hz 220-240 V / 50 Hz 功率 Power 220 W (±5%) 220 W (±5%) 照明燈 Lighting S-17 12W E27 6400K S-17 12W E27 6400K (慳電膽 Fluorescent Lamp) * 傳動方式... -
Page 15: 保用條款 Warranty Terms & Conditions
- 機身編號被擅自塗改、破壞或刪除。 - serial number is modified, damaged or removed from the product. 4. 總代理有權選擇維修或更換配件或其損壞部份。 4. German Pool will, in its discretion, repair or replace any defective part. 5. 產品一經被轉讓，其保用即被視作無效。 5. This warranty will be void if there is any transfer of ownership from the original purchaser. - Page 16 傳真 Fax: +86 757 2980 8318 傳真 Fax: +853 2875 2661 © 版權所有。未獲德國寶授權，不得翻印、複製或使用本說明書作任何商業用途，違者必究。 © All rights reserved. Copying, reproducing or using the contents of this manual is not allowed without prior authorization from German Pool, violators will be prosecuted. RHT-TOS-D-SERIES-M-13(2)
