Mantel Leg Clearances; Mantel Clearances - Regency HZ33CE-NG10 Owners & Installation Manual

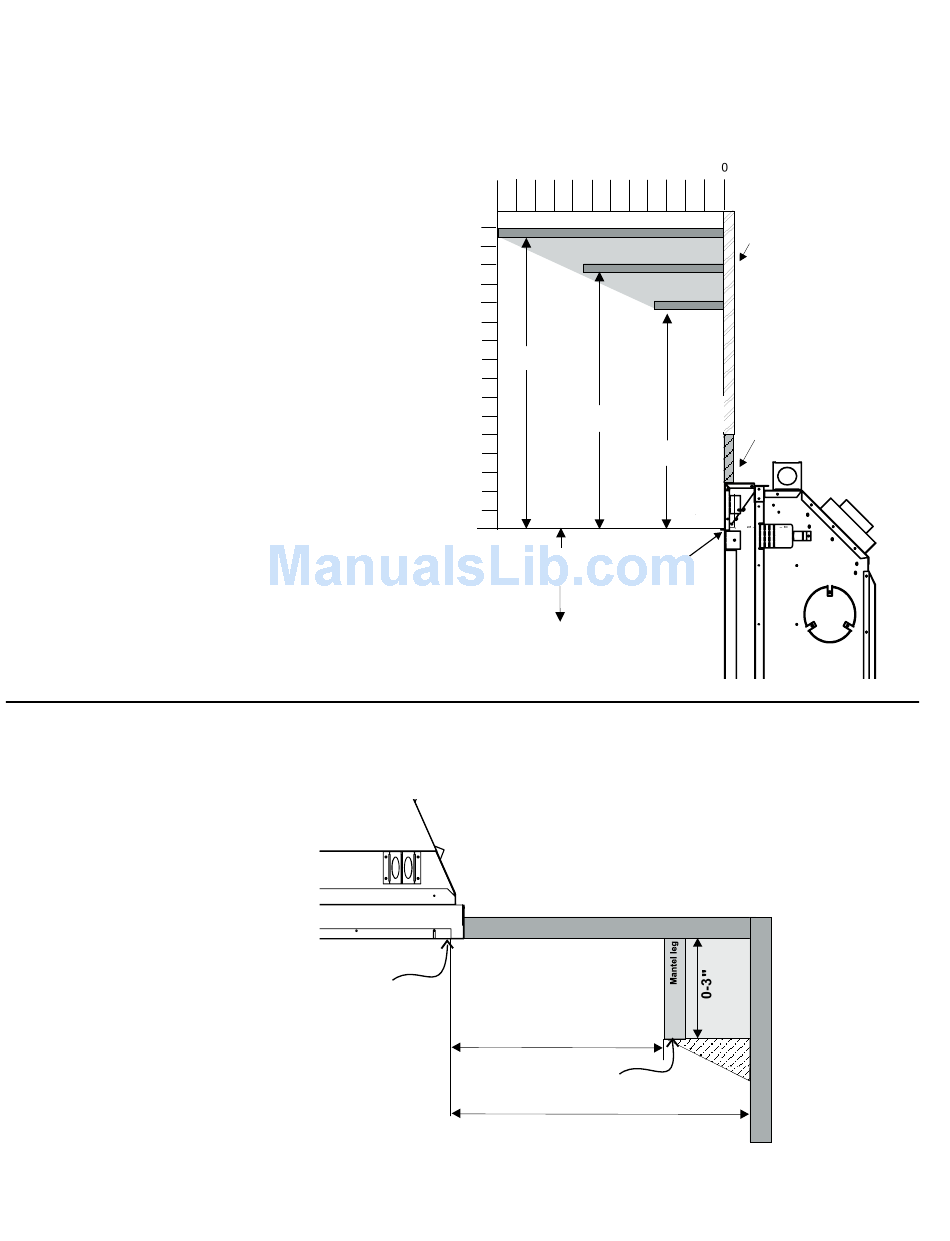

Due to the extreme heat this fireplace emits, the
mantel clearances are critical. Combustible mantel
clearances from top of front facing are shown in the
diagram on the right.
Note: A non-combustible mantel may be
installed at a lower height if the framing
is made of metal studs covered with a
non-combustible board.
Note: Ensure the paint that is used on the mantel
and the facing is "heat resistant" or the
paint may discolour.
Combustible mantel leg clearances from side of unit as per diagram:

MANTEL CLEARANCES

16
14
12
10
8
6
4
2
0

MANTEL LEG CLEARANCES

Top View
Side opening of Unit
Mantel Clearances
12 10 8 6 4
12" (305mm)
7-1/2"(191mm)
0" - 3-1/2" (89mm)
15-3/4" (400mm)
13-3/4"(349mm)
11-3/4"(298mm)
24-1/4"(616mm)
Top opening
to floor
of Unit
6-3/4"
Allowable mantel leg projection
9"
installation
2
Drywall
Non-combustible material
3"(76mm)
Standoff
Side View
Regency HZ33CE-10 Gas Fireplace
|
