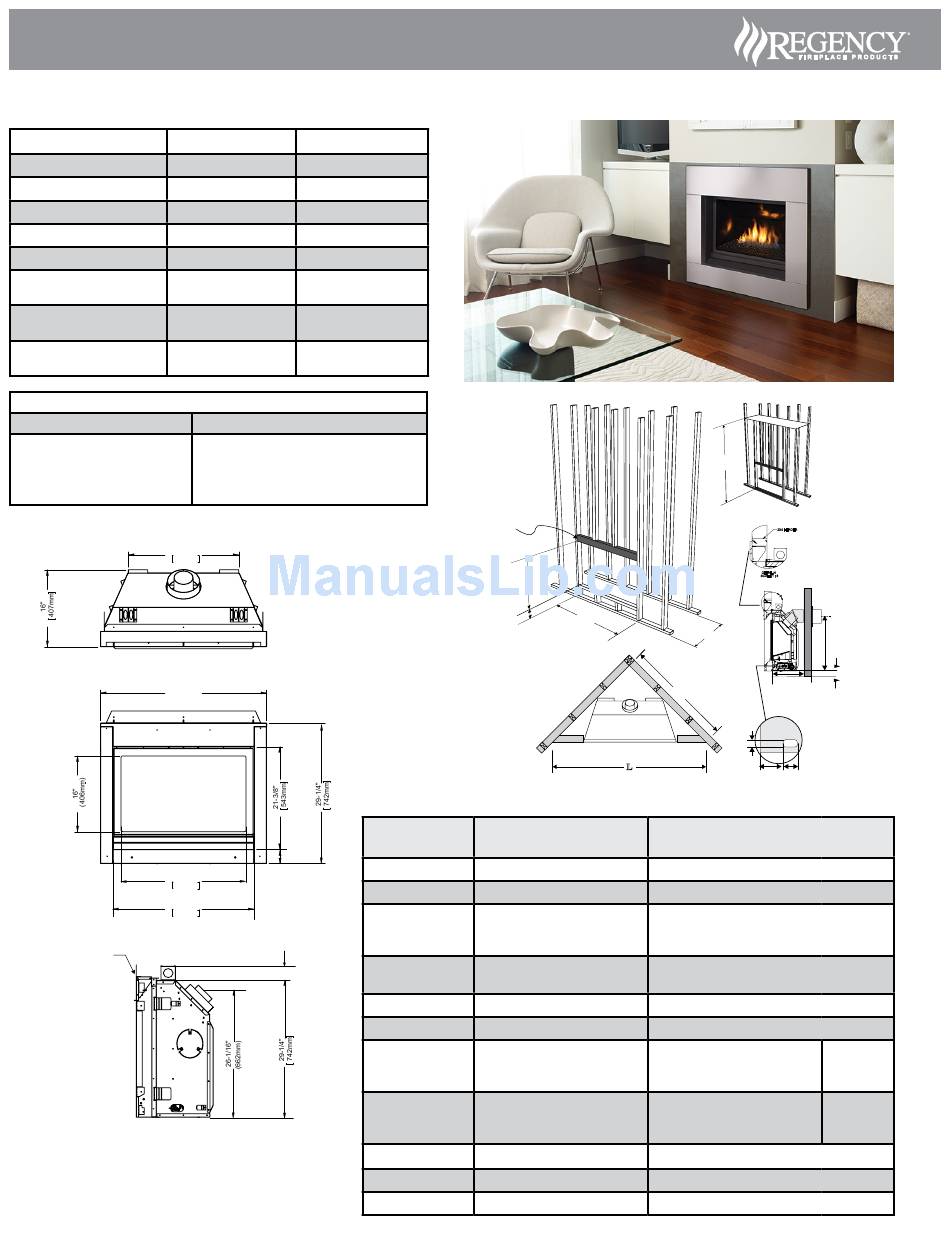

HZ33CE Gas Fireplace Model HZ33CE-NG10 HZ33CE-LP10 Fuel Type Natural Gas Propane Minimum Supply Pressure 5” W.C. (1.25 kPa) 11” W.C. (2.73 kPa) Manifold Pressure - High 3.5” W.C. (0.87 kPa) 10” W.C. (2.48 kPa) Manifold Pressure - Low 1.6” W.C. (0.41 kPa) 6.4”...
Page 2
HZ33CE Gas Fireplace CLEARANCES The clearances listed below are Minimum distances unless otherwise stated: A major cause of chimney related fires is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance that this fireplace and vent system be installed only in accordance with these instructions.
HZ33CE Gas Fireplace MANTEL CLEARANCES Due to the extreme heat this fireplace emits, the Mantel Clearances mantel clearances are critical. Combustible mantel clearances from top of front facing are shown in the diagram on the right. Note: A non-combustible mantel may be 12"...
HZ33CE Gas Fireplace FRAMING & FINISHING 1. There are 8 (eight) side nailing strips and one top nailing strip available on the unit. One set of four (4) are for a clean finish installation, the other set are for a tile finish installation as they are set back 1/2" (13mm). The top nailing strip is adjustable to 1/2" (13mm).
HZ33CE Gas Fireplace CLEAN FINISH 6. If applying a non-combustible facing it may be installed over the metal surface (clean front) of the unit in the area shown below. WOOD STUD Combustible Material 1/2" DRYWALL Non-combustible Material (3-1/2" x 34-9/16")
HZ33CE Gas Fireplace RIGID PIPE VENTING ARRANGEMENTS Vertical Terminations (Propane & Natural Gas) The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations, using one 90 elbow, with rigid pipe vent systems for Propane and Natural Gas.
HZ33CE Gas Fireplace RIGID PIPE VENTING ARRANGEMENTS Horizontal Terminations REGENCY DIRECT VENT SYSTEM (FLEX) ® (Propane & Natural Gas) This diagram shows all allowable combinations of vertical runs with horizontal terminations, using one 45 and one 90 elbow (two 45 elbows equal one elbow).
