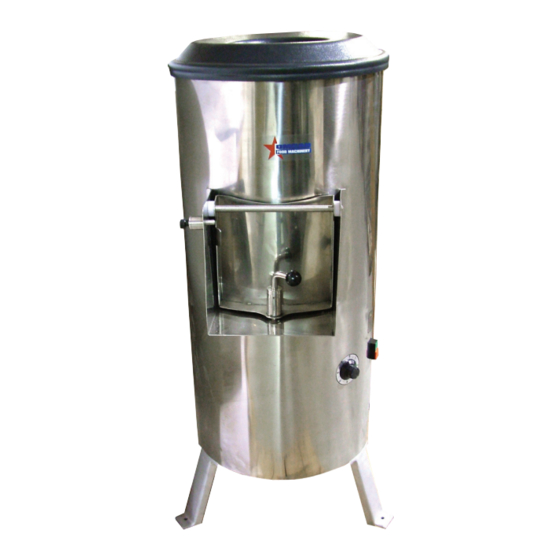

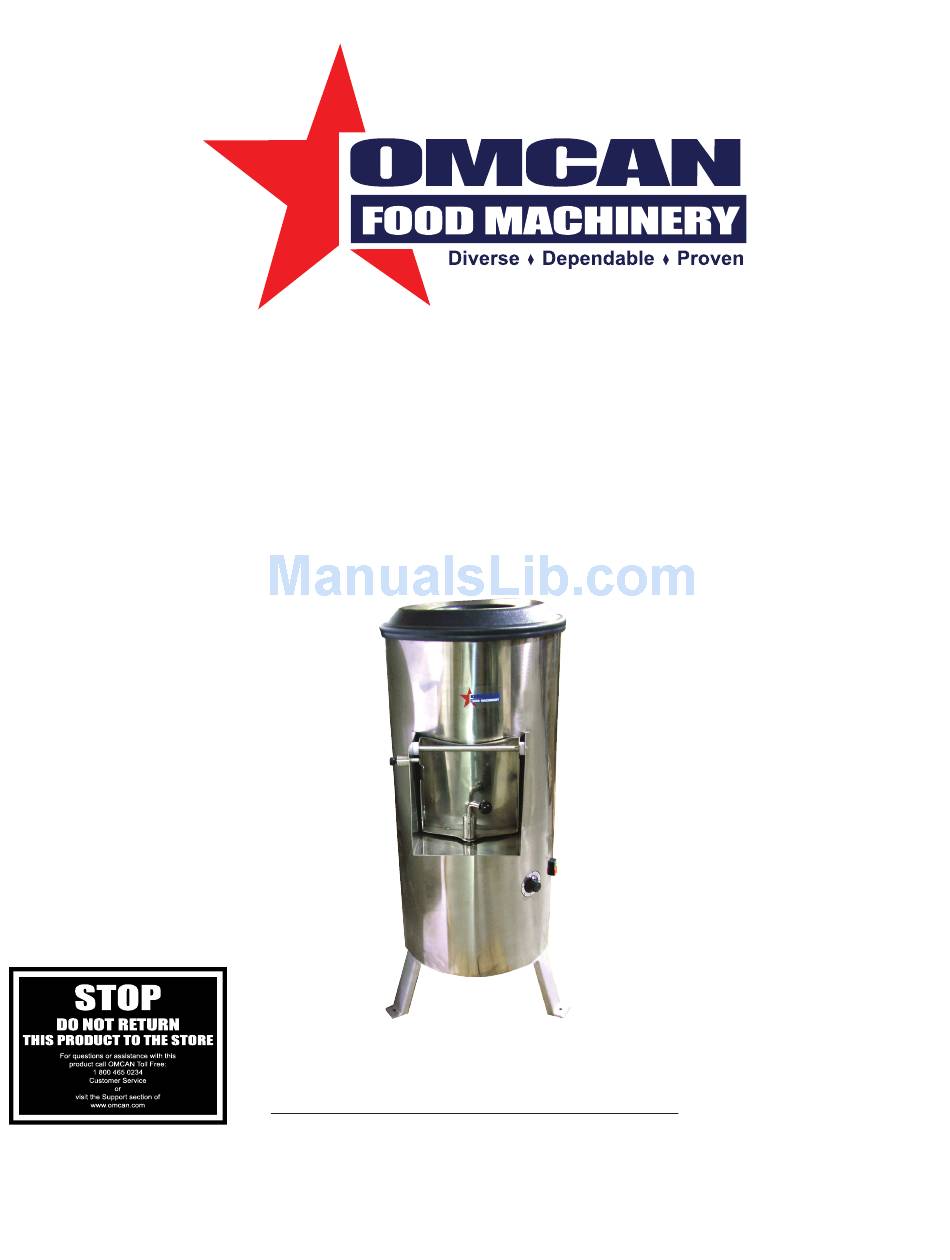

- Page 1 Potato Peeler Model DB-25HD Instruction Manual Version 1 3115 Pepper Mill Court, Mississauga, ON, L5L 4X5 1-800-465-0234 4450 Witmer Industrial Estates, Unit 4, Niagara Falls, NY, 14305 www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model DB-25HD Section Page General Information -------------------------------------------------------------------------------- 3 Safety & Warranty ------------------------------------------------------------------------------ 3 - 5 Technical Specifications ---------------------------------------------------------------------- 5 - 6 Installation -------------------------------------------------------------------------------------------- 7 Operation ----------------------------------------------------------------------------------------- 7 - 8 Maintenance ------------------------------------------------------------------------------------- 8 - 9 Troubleshooting ------------------------------------------------------------------------------- 9 - 10... -
Page 3: General Information
When misused, the Potato Peeler DB-25HD can be potentially DANGEROUS. Maintenance, cleaning or any other service of this machine must be made only by properly trained technicians and the power plug must be disconnected. - Page 4 Safety and Warranty ATTENTION Always unplug the machine before cleaning or maintenance. IMPORTANT This equipment is not to be used by persons (including children) with any physical or mental inabilities, or without operation experience and knowledge, only acquired by means of instruction and supervision of a security staff.
-
Page 5: Technical Specifications
DO NOT introduce your fingers between belts, pulleys, chains and gears. Check protections and safety devices to make sure they are working properly. Technical Specifications Technical Characteristics DB-25HD Voltage (V) 110 or 220 Power Rating (CV) Consumption (kW/h) 0.73... - Page 6 Technical Specifications...
-
Page 7: Installation
(Pic. 1, #6) and activate the ON/OFF switch (Pic. 1, #3). With the machine on, pour the product to be processed inside it. For the DB-25HD, put 25 Kg of potatoes at most. The working time varies from one (1) to five (5) minutes. -
Page 8: Operation
Operation Do not operate the machine with long hair which might touch any part of the machine because it may lead to serious accidents. Tie your hair up well and/or cover your hair with a scarf. Only trained or skilled personnel shall operate this machine. -
Page 9: Troubleshooting
Maintenance IMPORTANT Never use water jets to wash the machine. IMPORTANT Take care of your machine and use it properly and with responsibility. It will bring you benefits. Troubleshooting PROBLEMS, CAUSES AND SOLUTIONS The Potato Peeler was designed to operate with minimum maintenance. However, some irregularities may occur during its operation due to the natural wear caused by the use of the equipment. - Page 10 Troubleshooting The machine turns on but when Skidding belts or problems with the Call a qualified technician. the product is placed on the disc, it electric motor. stops or spins in low rotation. Strange noises. Abrasive Disc is misplaced. There Place the Abrasive Disc are damaged ball bearings.
-
Page 11: Parts Breakdowns
Parts Breakdown Model DB-25HD 20367... - Page 12 Parts Breakdown Model DB-25HD 20367...
-
Page 13: Parts Breakdown
Parts Breakdown Model DB-25HD 20367 Complete Abrasive Disc Rim with mounted Feet 34366.8 Full Door Set 34210.6 Complete Background 49072.5 34181.9... -
Page 14: Parts Breakdowns
Parts Breakdown Model DB-25HD 20367 Item Item Item Description Position Description Position Description Position FUNNEL LID (MOL.37663.9) 34305.6 RING 10 DIN 6799 21127.3 DOOR SET DB 25HD 34339.0 DRIVEN PULLEY D.164 PLATE DIMTERE 0.4X180X- NYLON WASHER 34330.7 46047.8 36456.8 (PRIMER) -
Page 15: Electrical Schematics
Electrical Schematics Model DB-25HD 20367... -
Page 17: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: www.omcan.com/warrantyregistration.html... - Page 20 Over the last 60 years, Omcan has grown to become a leading supplier to the food service industry in Canada and the USA. Our success over these many years is directly attributed to our established relationships with all of our valued customers and through providing them with Diverse, Dependable and Proven products.
