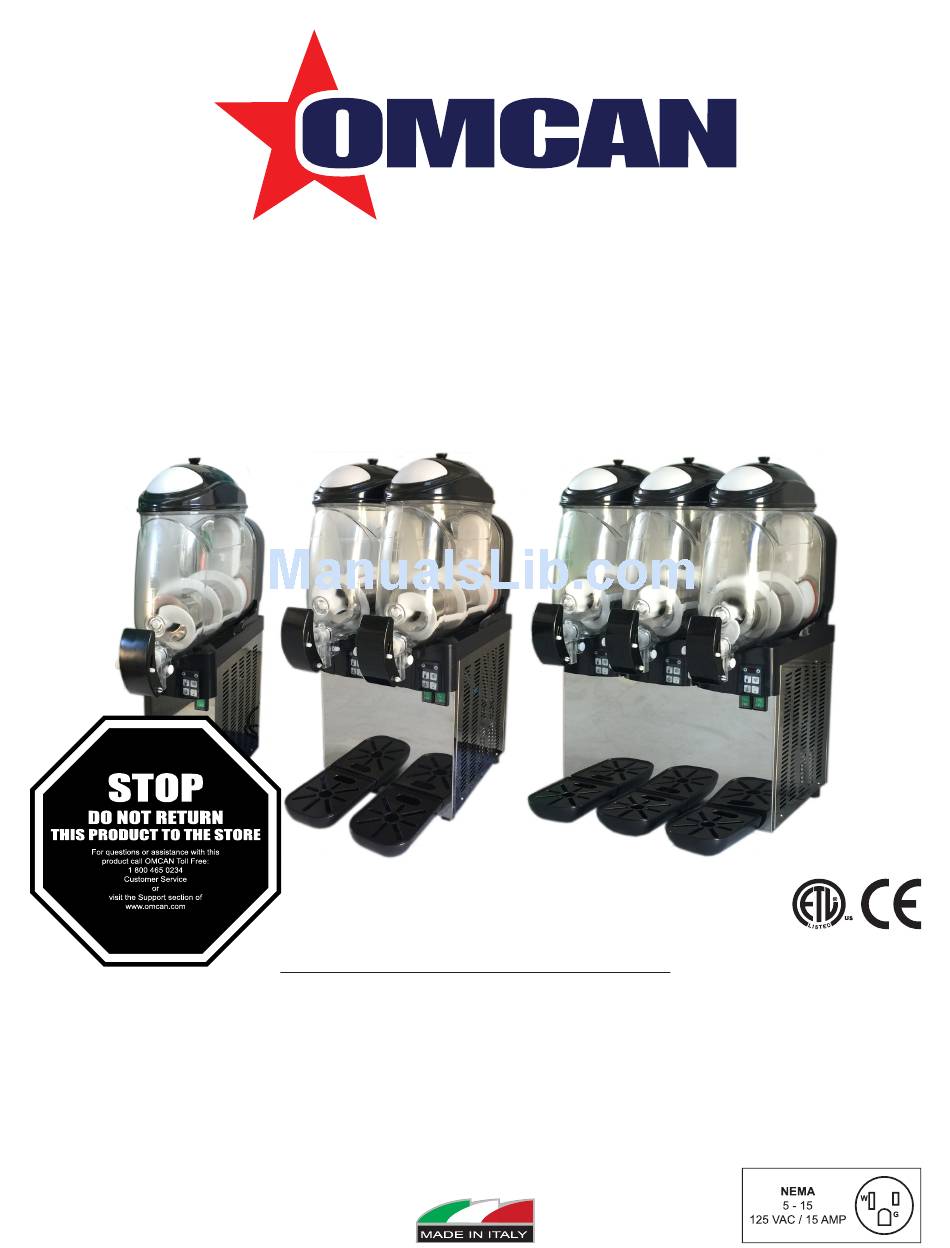

- Page 1 Slush Machines Models DI-IT-0010-S, 0020-S, 0030-S Items 39677, 39678, 39679 Instruction Manual Revised - 04/05/2017 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model DI-IT-0010-S / Model DI-IT-0020-S / Model DI-IT-0030-S Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 5 Technical Specifications ---------------------------------------------------------------------- 5 - 6 Installation -------------------------------------------------------------------------------------------- 6 Operation ----------------------------------------------------------------------------------------- 6 - 7... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. -
Page 5: Technical Specifications
Do not leave the equipment outdoors or otherwise exposed to the elements. 1 YEAR PARTS AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. -
Page 6: Installation
Technical Specifications Electrical 115V / 60 Hz Refrigerant R404 Current 11.3A 7.1” x 24.4” x 32.3” 14.2” x 24.4” x 32.3” 20.5” x 24.4” x 32.3” Dimensions 180 x 620 x 820mm 360 x 620 x 820mm 520 x 620 x 820mm 11”... -
Page 7: Operation
Operation milk-based drinks, follow the manufacturer’s instructions. • Move Power Switch (8) to ON. • Press the reduction motor button (6). • Press the Bibita (Drinks) button (4) for cold drinks, or the Granita (Slurry) button (5) for slurries. • Drink temperature or Slurry density may be raised or lowered by using buttons (1) or (2) accordingly. -
Page 8: Maintenance
REFERENCE Item Number Model Number Description Manufacturer Model Number 39677 DI-IT-0010-S Slush Machine Grani 10 L / 1 Bowl 115/60 39678 DI-IT-0020-S Slush Machine Grani 10 L / 2 Bowl 115/60 39679 DI-IT-0030-S... -
Page 9: Figure Drawings
Figure Drawings... -
Page 10: Parts Breakdown
Parts Breakdown Model DI-IT-0010-S 39677 Model DI-IT-0020-S 39678 Model DI-IT-0030-S 39679... - Page 11 Parts Breakdown Model DI-IT-0010-S 39677 Item No. Description Position Item No. Description Position Item No. Description Position 70748 Lid for GR1, 2, 3 70766 Evaporator for GR1, 2, 3 70781 Upper Sprocket for GR1, 2, 3 70749 Front Glass for GR1, 2, 3...
- Page 12 Parts Breakdown Model DI-IT-0020-S 39678 Item No. Description Position Item No. Description Position Item No. Description Position 70748 Lid for GR1, 2, 3 70766 Evaporator for GR1, 2, 3 70781 Upper Sprocket for GR1, 2, 3 70749 Front Glass for GR1, 2, 3 70767 Base for GR1, 2, 3 70782...
- Page 13 Parts Breakdown Model DI-IT-0030-S 39679 Item No. Description Position Item No. Description Position Item No. Description Position 70748 Lid for GR1, 2, 3 70766 Evaporator for GR1, 2, 3 70781 Upper Sprocket for GR1, 2, 3 70749 Front Glass for GR1, 2, 3 70767 Base for GR1, 2, 3 70782...
-
Page 14: Electrical Schematics
Electrical Schematics Model DI-IT-0010-S 39677 Model DI-IT-0020-S 39678 Model DI-IT-0030-S 39679... -
Page 15: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 16 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
