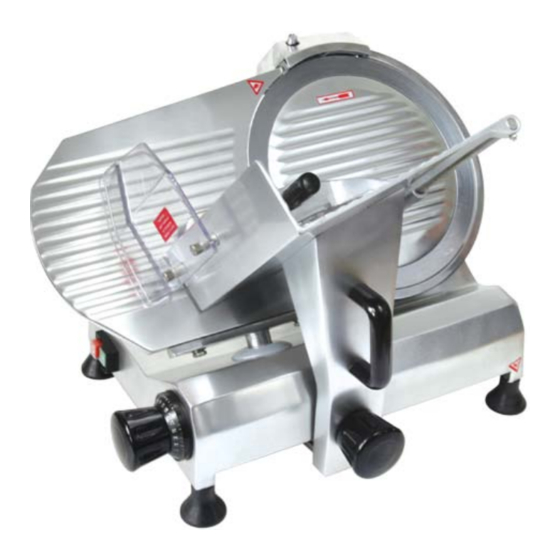

Omcan HSB-300 Operation Instruction

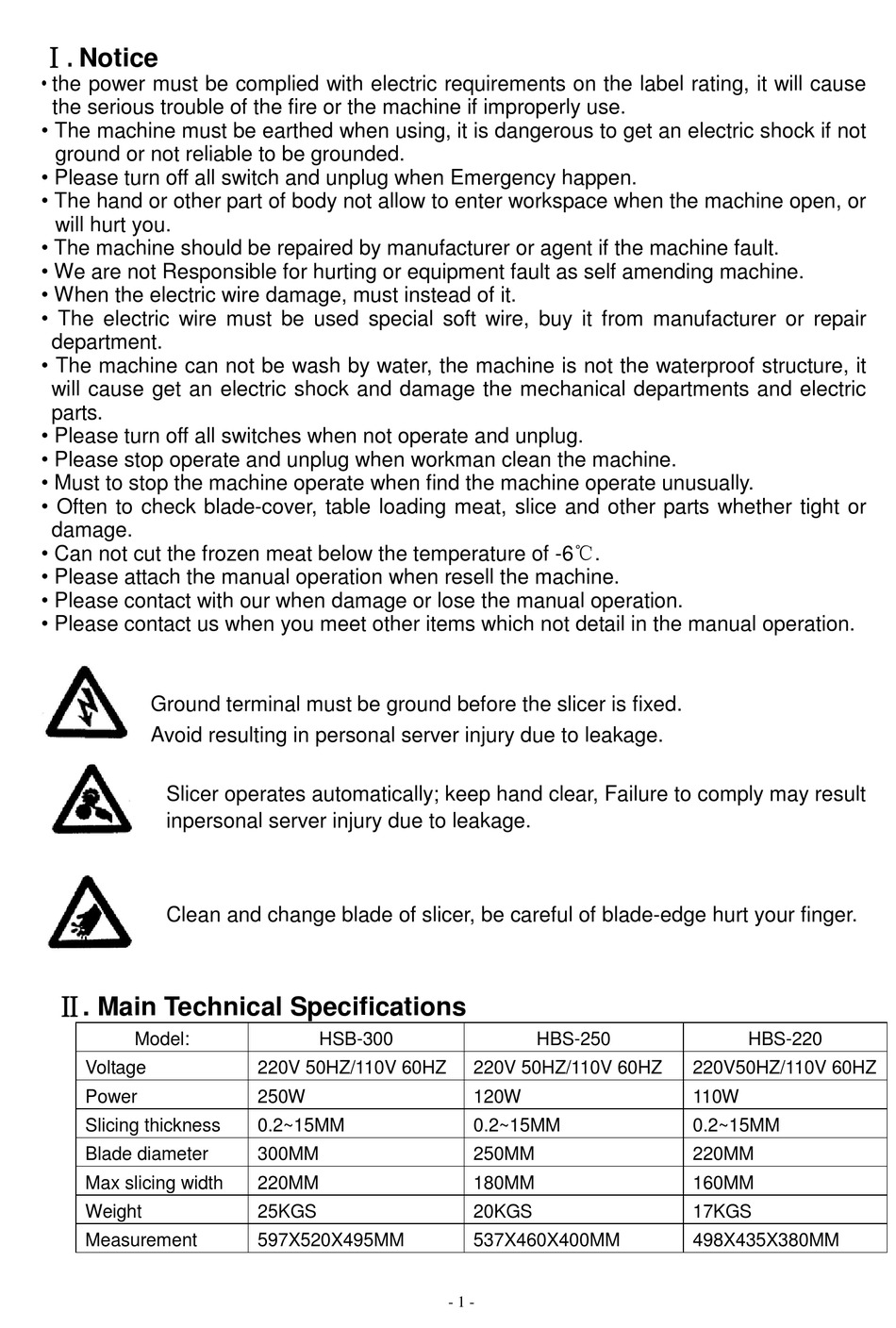

Ⅰ. Notice
• the power must be complied with electric requirements on the label rating, it will cause
the serious trouble of the fire or the machine if improperly use.
• The machine must be earthed when using, it is dangerous to get an electric shock if not
ground or not reliable to be grounded.
• Please turn off all switch and unplug when Emergency happen.
• The hand or other part of body not allow to enter workspace when the machine open, or
will hurt you.
• The machine should be repaired by manufacturer or agent if the machine fault.
• We are not Responsible for hurting or equipment fault as self amending machine.
• When the electric wire damage, must instead of it.
• The electric wire must be used special soft wire, buy it from manufacturer or repair
department.
• The machine can not be wash by water, the machine is not the waterproof structure, it
will cause get an electric shock and damage the mechanical departments and electric
parts.
• Please turn off all switches when not operate and unplug.
• Please stop operate and unplug when workman clean the machine.
• Must to stop the machine operate when find the machine operate unusually.
• Often to check blade-cover, table loading meat, slice and other parts whether tight or
damage.
• Can not cut the frozen meat below the temperature of -6℃.
• Please attach the manual operation when resell the machine.
• Please contact with our when damage or lose the manual operation.
• Please contact us when you meet other items which not detail in the manual operation.
Ground terminal must be ground before the slicer is fixed.
Avoid resulting in personal server injury due to leakage.
Slicer operates automatically; keep hand clear, Failure to comply may result
inpersonal server injury due to leakage.
Clean and change blade of slicer, be careful of blade-edge hurt your finger.
Ⅱ. Main Technical Specifications
Model:
Voltage
Power
Slicing thickness
Blade diameter
Max slicing width
Weight
Measurement
HSB-300
220V 50HZ/110V 60HZ
250W
0.2~15MM
300MM
220MM
25KGS
597X520X495MM
HBS-250
220V 50HZ/110V 60HZ
120W
0.2~15MM
250MM
180MM
20KGS
537X460X400MM
- 1 -
HBS-220
220V50HZ/110V 60HZ
110W
0.2~15MM
220MM
160MM
17KGS
498X435X380MM
