WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury or loss of life.
– Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call
the fire department.
– Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
– In the Commonwealth of Massachusetts,
a carbon monoxide (CO) detector shall be
installed in the same room as the appliance.
This appliance may be installed in an aftermarket,
permanently located, manufactured home or mobile
home, where not prohibited by local codes.
This appliance is only for use with the types of gas
indicated on the rating plate. A conversion kit is
supplied with the appliance.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.

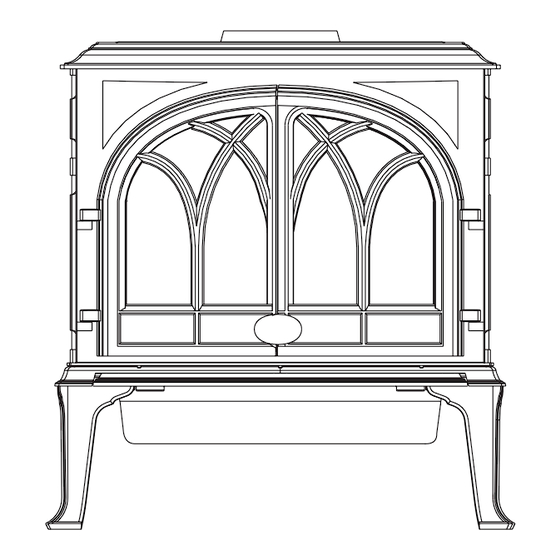

Installation and
Operation Instructions
ATTENTION : CES INSTRUCTIONS DOIVENT
DEMUERER AVEC LE PROPRIÉTERE D'UNE
MAISON.
AVERTISSEMENT: Assurez-vous de bien
suivreles instructions données dans cette
notice pour réduire auninimum le risque
d'incendie ou d'explosion ou pour éviter
tout dommage matériel, toute blessure ou la
mort.
– Ne pas entreposer ni utiliser d'essence ni
d'autres vapeurs ou liquides inflammables
dans le voisinage de cet appareil ou de tout
autre appareil.
– QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ:
• Ne pas tenter d'allumer l'appareil.
• Ne touchez à aucum interrupteur. Ne
pas vous servir des téléphones se trouvant
dans le bâtiment où vous trouvez.
• Appelez immédiatement votre
fournisseur de gaz depuis un voisin.
Suivez les instructions du fournisseur.
• Si vou ne pouvez rejoindre le
fournisseur de gaz, appelez le service des
incendies.
– L'installatione l'entretien doivent être
assurés par un installateur ou un service
d'entretien qualifié ou par le fournisseur
de gaz.
137750_Rev_L 11.16.12
1
Advertisement
Table of Contents
Related Manuals for Intertek Jotul GF 400 DV Sebago
Summary of Contents for Intertek Jotul GF 400 DV Sebago
-
Page 1: Operation Instructions
137750_Rev_L 11.16.12 Installation and Operation Instructions WARNING: If the information in these ATTENTION : CES INSTRUCTIONS DOIVENT instructions is not followed exactly, a fire DEMUERER AVEC LE PROPRIÉTERE D’UNE or explosion may result causing property MAISON. damage, personal injury or loss of life. AVERTISSEMENT: Assurez-vous de bien suivreles instructions données dans cette – Do not store or use gasoline or other notice pour réduire auninimum le risque flammable vapors and liquids in the vicinity d’incendie ou d’explosion ou pour éviter... -
Page 2: Service Tools
137750_Rev_L 11.16.12 WARNING Installation Requirements for the Commonwealth of Massachusetts HOT GLASS WILL THIS PRODUCT MUST BE INSTALLED BY CAUSE BURNS A LICENSED MASTER OR JOURNEYMAN DO NOT TOUCH GLASS PLUMBER OR GAS-FITTER WHEN INSTALLED IN THE COMMONWEALTH OF UNTIL COOLED. MASSACHUSETTS. NEVER ALLOW CHILDREN 1. -
Page 3: Table Of Contents
Mantel & Trim ........7 This appliance complies with Alcove ............ 7 National Safety standards and is tested and listed by Vent Requirements ........8 Intertek Testing Services of Adding Restriction .......8 Middleton, Wisconsin to Vertical Termination ......9 ANSI Z21.88-2009, Co-linear Termination ....12 ANSI Z21.88 / CSA 2.33-2009, Coaxial Chimney Conversion ..13... -
Page 4: Specifications
137750_Rev_L 11.16.12 Jøtul GF 400 DV Sebago Specifications Input Rates Natural Gas 28 1/2” 32,000 BTU/hr. maximum input 724 mm 18,000 BTU/hr. minimum input Propane 32,000 BTU/hr. maximum input 16,000 BTU/hr. minimum input Inlet Pressure: Natural Gas: 5.0 WC (1.24 kPa) 7.0 WC (1.74 kPa) 10” Gas Inlet Propane: 12.0 WC (2.99 kPa) 14.9 WC (3.71 kPa) 254 mm 26 1/2” Manifold Pressure: 673 mm Natural Gas: 1.2 WC (.30 kPa) 3.8 WC (.95 kPa) Propane: 2.9 WC (.722 kPa) 11.0 WC (2.74 kPa) Piezo Ignitor / Standing Pilot... -
Page 5: General Information
137750_Rev_L 11.16.12 General Information THIS HEATER MUST BE INSTALLED AND MAINTAINED BY A QUALIFIED SERVICE AGENCY. Glass Panel The installation and repair of this appliance must be Do not operate this appliance with the glass done by a qualified service person. Failure to properly front removed, cracked, or broken. -
Page 6: Safety Information
137750_Rev_L 11.16.12 Safety Information Cet appareil ne sert pas avec des portes en verre de marché des accessoires. Due to the high operating temperatures this appliance Wear gloves and safety glasses while installing or should be located out of traffic and away from performing maintenance procedures on this appliance. furniture, draperies, etc. Maintain proper clearance to combustible mantels and fireplace trim. -
Page 7: Clearances
137750_Rev_L 11.16.12 Stove and Vent Clearance Minimum Clearances from the Vent Pipe to Combustibles: Requirements Horizontal Run: Off the top of the pipe 2” (51 mm) Minimum Clearances from the Stove Off the sides and bottom 1” (25 mm) to Combustibles: See figs. 2-4. Vertical Run: Rear: 2” (51 mm) All sides 1” (25 mm) Ceiling: 32 1/4” (819 mm) Corner: 2” (51 mm) Sides: 3” (76 mm) Max. Mantel Depth 12.5”... -
Page 8: Vent Requirements
137750_Rev_L 11.16.12 Venting Requirements Vent Restriction This appliance is equipped with Restrictor Plates which This appliance may be installed with a vertical or horizon- tal termination and must conform to the configuration enable you to regulate the flow of incoming combustion requirements described below. -
Page 9: Vertical Termination
137750_Rev_L 11.16.12 FRONT BACK Default Push the Fully Closed Pivot Pin into Factory the slot Setting is “D” Fully Open Figure 6. Adjusting the Air Inlet Restrictor plate - View is from the right side of the stove. Vertical Vent Termination This appliance can be vertically vented through a ceiling or to a roof termination with the following guidelines: The termination should fall within the shaded areas... - Page 10 137750_Rev_L 11.16.12 Vent Termination Zones - Natural Gas Vertical Termination for COLINEAR VENT 35 Ft. (10.67 m) Horizontal and Vertical Terminations for COAXIAL VENT 35 Ft. 35 Ft. (10.67 m) (10.67 m) 30 Ft. (9.14 m) Up to four 45° or two 90° elbows 25 Ft. permitted in (7.62 m) addition to the starter elbow.
- Page 11 137750_Rev_L 11.16.12 Vent Termination Zones - Propane Vertical Termination for COLINEAR VENT 35 Ft. (10.67 m) Horizontal and Vertical 35 Ft. Terminations for COAXIAL VENT (10.67 m) 30 Ft. (9.14 m) Up to four 45° or two 90° elbows permitted in 25 Ft. addition to the (7.62 m) starter elbow.
-
Page 12: Co-Linear Termination
137750_Rev_L 11.16.12 High Wind Cap Exhaust Gas Co-linear Vent Installation Max. Co-linear Intake Air This appliance may be vented through a masonry or Class Height - 35 ft. (10.66 m) A prefabricated chimney using a Co-linear Flexible Vent Min. Co-linear system approved for use with a solid-fuel burning fire- Height - 10 ft. -
Page 13: Coaxial Chimney Conversion
137750_Rev_L 11.16.12 Vertical Termi- Masonry or Prefabricated Chimney Exhaust nation Cap Conversion Cap Adaptor- This appliance is approved for use with listed chimney included in Intake Air #934 Kit conversion kits from any of the manufacturers listed on page 8. These kits are for use in a masonry chimney or a prefabricated solid fuel listed chimney. -
Page 14: Horizontal Termination
137750_Rev_L 11.16.12 Horizontal Termination 12 in. (305 mm) Any horizontal termination must fall within the shaded portion of the vent window graph illustrated in figs. 9 or 11. For Snorkel Terminations, see below. Any horizontal termination except a snorkel termina- ... -
Page 15: Vent Terminal Clearances
137750_Rev_L 11.16.12 Horizontal Termination Clearance Vent Terminal Air Supply Terminals Prohibited in this Area Figure 19. Vent Terminal Clearances per National Fuel Gas Code. A = Clearance above grade, veranda, porch , deck, or balcony M = Clearance under veranda, porch, deck, or balcony: : 12 inches (30 cm) minimum. 12 inches (30 cm) minimum. -
Page 16: Mobile Home Installation
137750_Rev_L 11.16.12 Mobile Home Installation Fuel Conversion This appliance can be installed for use in a mobile home This appliance is shipped from the factory equipped to in the U.S. and Canada provided: burn NATURAL GAS only. If PROPANE gas is to be used as fuel, the appliance must first be converted for use with 1. - Page 17 137750_Rev_L 11.16.12 Fuel Conversion Procedure Refer to fig. 47, Illustrated Parts Breakdown, to identify part numbers below. Shutter OPEN CLOSED Turn off gas supply to stove. Wingnut 2. Remove the stove Top Plate (41). Disengage the two Glass Frame Latches at the top of FRONT BACK the firebox. See illustration on page 5. Carefully lift the glass panel up and out of the stove.
-
Page 18: Gas Supply Connection
137750_Rev_L 11.16.12 NEVER USE AN OPEN FLAME TO CHECK FOR GAS LEAKS. 14. Remove the Regulator Tower, Gasket, white plastic disk, and Spring. Correct gas pressure is essential for efficient and safe operation of this appliance. Correct gas pres- 15. Install the new regulator: Be sure the new gasket is sure must be established at the time of installation. properly positioned and tighten screws securely. -
Page 19: Gas Pressure
137750_Rev_L 11.16.12 A T-HANDLE GAS COCK IS REQUIRED IN MASSACHUSETTS TO COMPLY WITH CODE 248CMR. Secure all joints tightly using appropriate tools and sealing compounds. For propane units be sure to use com- pounds that are propane resistant. Turn on gas supply and test for gas leaks using a soapy water solution. Never use an open flame to check for leaks. Figure 28. -
Page 20: Air Shutter Adjustment
137750_Rev_L 11.16.12 Flame Appearance / Air Shutter Optional Wall Thermostat or Adjustment Remote Control This appliance is shipped from the factory equipped to Use only a 750 millivolt DC two-wire circuit thermostat burn natural gas with the air shutter set half-open. with this appliance. -
Page 21: Log Set Installation
137750_Rev_L 11.16.12 Log Set Installation Figure 33. 220645 Install Rear Log NOTE: If appropriate, install the optional Antique Brick Panel Kit before assembling the logset. The logset must be installed before operating the burner. The logset includes five log pieces, packaged inside the firebox, and a quantity of ember stones packaged in the Miscellaneous Parts bag. -
Page 22: System Check
137750_Rev_L 11.16.12 System Check 1” (25mm) 1. PURGING THE GAS LINE: When lighting the appliance 3/8” for the first time, it will take a few moments to clear 1/8” (8mm) (3mm) Min. the gas line of air. Once this purge is complete, the Min. appliance will operate as described in the lighting instructions. -
Page 23: Operation
137750_Rev_L 11.16.12 Operation Familiarize yourself with the controls of the GF 400 DV Sebago. Make sure that anyone else using the appliance is also familiar with the controls and operation procedures. Always follow the Lighting Instructions on the inside back cover of this manual and also located on the Rating Plate attached to the back of the stove. 1. -
Page 24: Maintenance
137750_Rev_L 11.16.12 Maintenance FOR REPLACEMENT, USE ONLY JØTUL CERAMIC GLASS PANEL 220089. DO NOT USE ANY This appliance and its venting system should be inspect- OTHER TYPE OF GLASS WITH THIS APPLIANCE. ed before use and at least annually by a qualified service technician. Glass Panel or Gasket Removal Use the form on page 30 to keep a maintenance his- tory of your stove. -
Page 25: Optional Blower Installation
137750_Rev_L 11.16.12 Optional Blower # 156000 Connect the gas supply line to the stove, before installing the Blower. Use a 90° Elbow off the control valve to create clearance required for the blower installation. 1. Unpack and check the contents of the blower kit. Contact your dealer if any damage is evident or parts are missing. See fig. 43. 2. Attach the Snapstat Bracket to the studs located in the middle of the firebox floor using the two M6 hex nuts and a 10 mm wrench. See fig. 44. 3. - Page 26 137750_Rev_L 11.16.12 Figure 45. Attach Blower to the Mounting Bracket with the wingscrew and connect wires to Snapstat and female control quickconnect. Snapstat Connectors Male Quick- connector to Female Quick- Wingscrew connector Blower Operation The optional variable-speed blower will enhance heat circulation around the firebox and out into the room. The blower is controlled by a heat activated switch (snap- stat) that will ONLY function when the control switch is in AUTO setting.
-
Page 27: Optional Brick Kit Installation
137750_Rev_L 11.16.12 Optional Antique Brick Right Panel Left Panel 220601 220600 Panel Kit 155375 Rear Panel 220599 Tools Required: Safety glasses and gloves Figure 48. Brick Kit Contents 1. Remove the Top Plate. Simply lift if up off of the stove body. It is not fastened. 2. Remove the Glass Frame. Disengage the two com- pression latches located at the top of the firebox and lift the glass frame up and off of the stove. -
Page 28: Illustrated Parts Breakdown
137750_Rev_L 11.16.12 GF 400 DV Sebago Illustrated Parts Jøtul GF 400 DV Sebago Breakdown Illustrated Parts Figure 52. Illustrated Parts Breakdown - GF 400 DV Sebago Center-mount Valve shown used on models after SN 30000. Side-mounted Valve uses same components. -
Page 29: Replacement Parts List
137750_Rev_L 11.16.12 GF 400 DV Sebago Parts List Brown Blue Matte Black Blue Black Ivory Jøtul Iron Jøtul Iron Majolica Majolica Paint Enamel Enamel Paint Enamel Cast Iron Parts Enamel Enamel 7. Left Side Plate 10391892 10421727 10421729 10391885 10421746 10421747 10421748 9. Bottom Plate 10396392 10396327 10396329... -
Page 30: Warranty Statement
137750_Rev_L 11.16.12 Jøtul Gas Product 3) Damage due to service performed by an installer, service agency or gas supplier, unless otherwise agreed to in writing by JØTUL. Limited Warranty 4) Labor or other costs associated with the repair of gas controls, plumbing, burners, log set, or sheet metal firebox beyond the warranty period. 5) Damage caused by unauthorized modification, use or repair. This warranty policy applies to gas products identified by 6) Damage to enameled surfaces caused by improper operation or Jøtul, Scan, and Atra trade names, as set forth below. -
Page 31: Lighting Instructions
137750_Rev_L 11.16.12 LIGHTING INSTRUCTIONS FOR YOUR SAFETY, READ BEFORE LIGHTING. WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUS- ING PROPERTY DAMAGE, PERSONAL INJURY, OR LOSS OF LIFE. • If your gas supplier cannot be reached, call the A. This appliance has a pilot which must be lit by hand. When lighting the pilot, follow these fire department. instructions exactly. C. Use only your hand to push in or turn the gas control knob. - Page 32 137750_Rev_L 11.16.12 This appliance must be installed in conformance with local and national building regulations. Before beginning the installation, it is important that these instructions be carefully read and understood. Jøtul maintains a policy of continual product development. Consequently, products may differ in specification, color or type of accessories from those illustrated or described in various publications.
