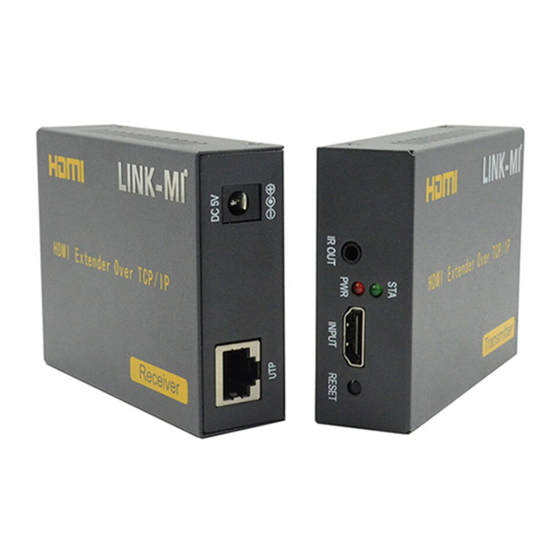

- Page 1 LM-DT103 HDMI Extender User manual...
- Page 2 1. Description The LM-DT103 extender provides extension of HDMI signals long distances over a single CAT5e/6 cable, it supports high resolution up to 1080p. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
-
Page 3: Specifications
Specifications Parameter Description HDMI 1.3; HDCP 1.2 Standards 165MHz Maximum pixel clock 6.75Gbps Maximum data rate Video 1920X1080P@60Hz Resolution HDMI-A Connector 100Ω Impedance Interface RJ45 Ethernet CAT6---120m Transmission distance Power supply The power adapter: DC 5V/1A Power dissipation MAX 3W Temperature Operating: -5℃... - Page 4 Panel Port name Description HDMI IN/OUT HDMI signal input/output RJ45 Ethernet interface DC/5V Power adapter socket IR IN/OUT signal input/output Press for 5 second to restore system setting to RESET factory default LED indicator Description STATUS Video signal connection indicator POWER System power indicator...
-
Page 5: Installation
Package list HDMI transmitter ……………………….…. 1 pc HDMI receiver ……………………………….. 1 pc Power adapter ……………………………….. 2 pcs User manual …………………………………… 1 pc Installation 1、 Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver, 2、...
