Ozito RDA-048 Instruction Manual

These instructions are to be used as a guide only and are not intended
to replace the instruction manual provided with your tool. Always
read the instructions for full details relating to operation of your tool.

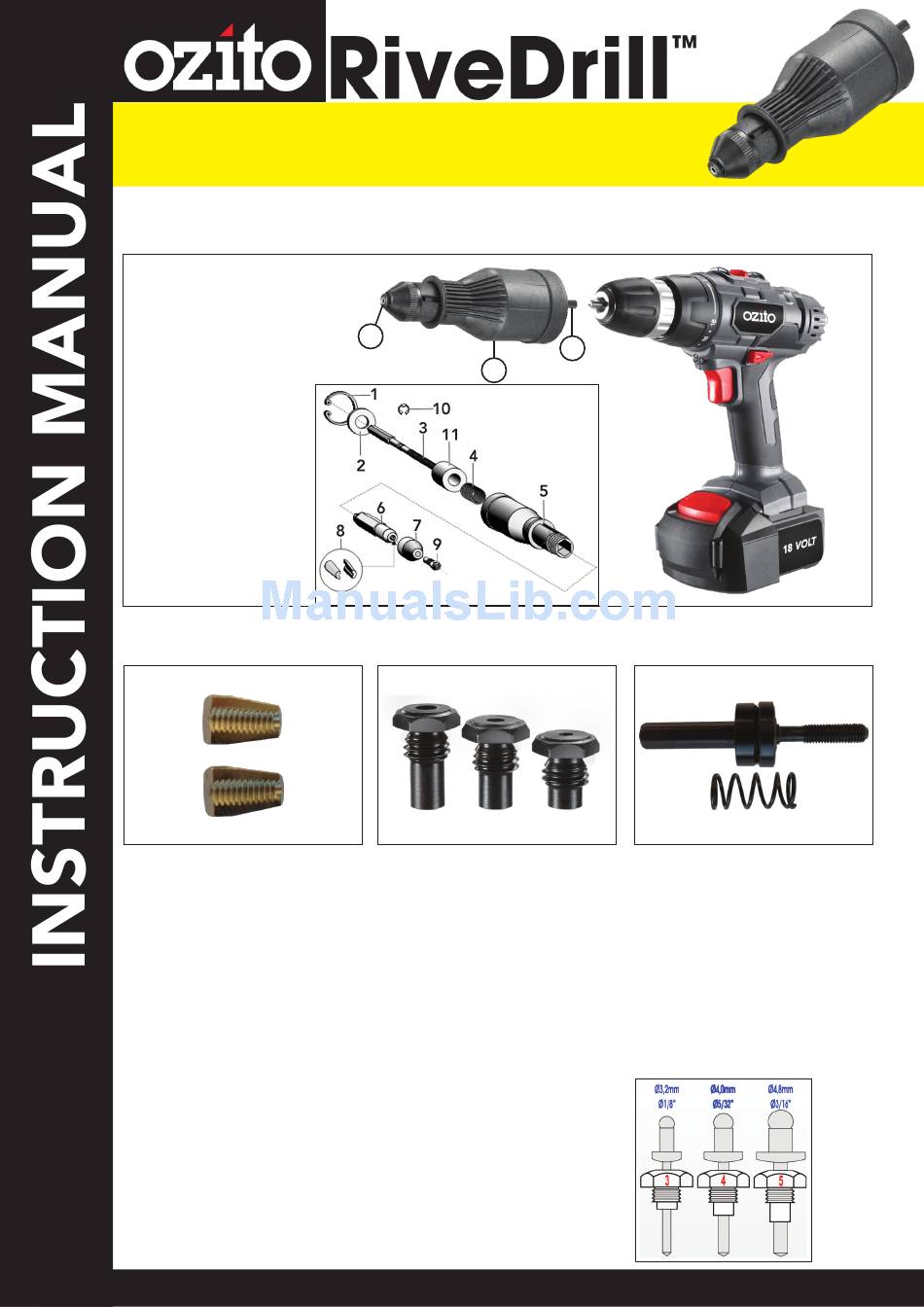

KNOW YOUR PRODUCT

1. Circlip
2. Washer
3. Drive Shaft
4. Spring
5. External Sleeve
6. Jaw Holder
7. Nose
8. Jaws
9. Nose Piece
10. Circlip
11. Rotor
AVAILABLE SPARE PARTS
SPRDA048-015
Jaws (x2)
DRILLS
To ensure proper performance of RiveDrill, a drill with sufficient torque should be used. We recommend a
minimum 18V cordless or 250W corded drill for this application.
SELECTING A NOSE PIECE
3 nose pieces are provided with the RiveDrill to suit common rivet sizes:
3.2mm (1/8"), 4mm (5/32"), and 4.8mm (3/16"). It is important that the
correct size is selected for the rivets being used.
To change the nose pieces, unscrew it from the RiveDrill and then screw
in the suitable nose piece for the rivet size.
If you have any questions, call Ozito: (AUS) 1800 069 486 (NZ) 0508 069 486
RDA-048
9
5
4.8mm 4.0mm
SPRDA048-014
Nose Pieces (set of 3)
3
3.2mm
SPRDA048-012
Rotor Assembly
(Drive Shaft (3), Rotor (11),
Spring (4))
