Recording

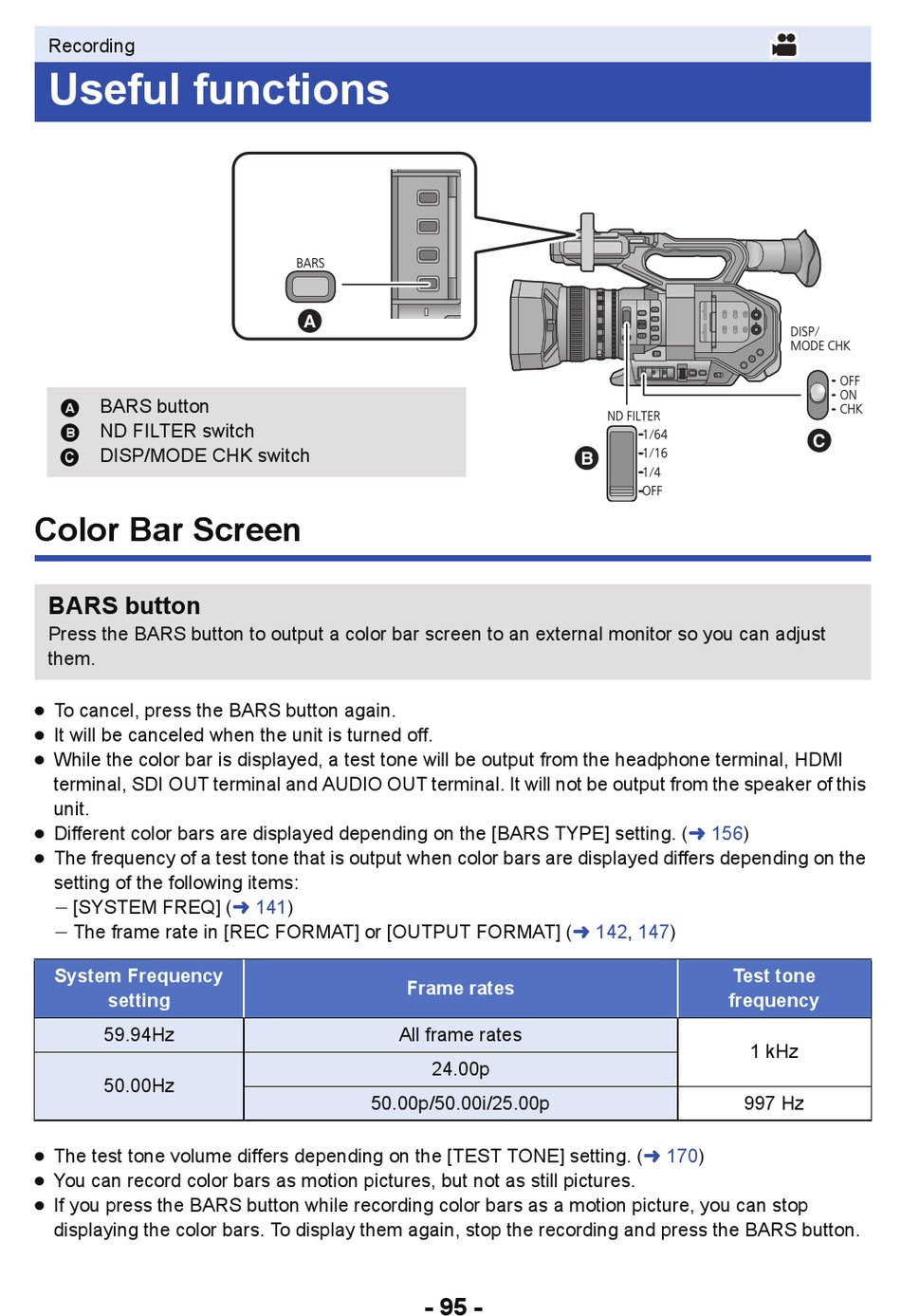

Useful functions

A BARS button
B ND FILTER switch
C DISP/MODE CHK switch

Color Bar Screen

BARS button
Press the BARS button to output a color bar screen to an external monitor so you can adjust
them.
≥ To cancel, press the BARS button again.
≥ It will be canceled when the unit is turned off.
≥ While the color bar is displayed, a test tone will be output from the headphone terminal, HDMI
terminal, SDI OUT terminal and AUDIO OUT terminal. It will not be output from the speaker of this
unit.
≥ Different color bars are displayed depending on the [BARS TYPE] setting.
≥ The frequency of a test tone that is output when color bars are displayed differs depending on the
setting of the following items:
j [SYSTEM FREQ]
j The frame rate in [REC FORMAT] or [OUTPUT FORMAT]
System Frequency
setting
59.94Hz
50.00Hz
≥ The test tone volume differs depending on the [TEST TONE] setting.
≥ You can record color bars as motion pictures, but not as still pictures.
≥ If you press the BARS button while recording color bars as a motion picture, you can stop
displaying the color bars. To display them again, stop the recording and press the BARS button.

(l 141)
50.00p/50.00i/25.00p
(l
Frame rates
All frame rates
24.00p
- 95 -

(l 156)
142, 147)
Test tone
frequency
997 Hz
(l 170)

1 kHz
