2.3 Compatibility
The Smart CAT5 is compatible with:
·
PS/2, SUN and USB computers/servers
·
VGA, SVGA, or XGA monitors
·
DOS, Windows (3X, 9X, 2000, NT4, ME, XP, 2003 Server) LINUX, UNIX,
QNX, SGI, FreeBSD, BeOS, Open VMS, Novell 3.12-6, Alpha UNIX, HP UX,
SUN
2.4 The Smart CAT5 system configuration

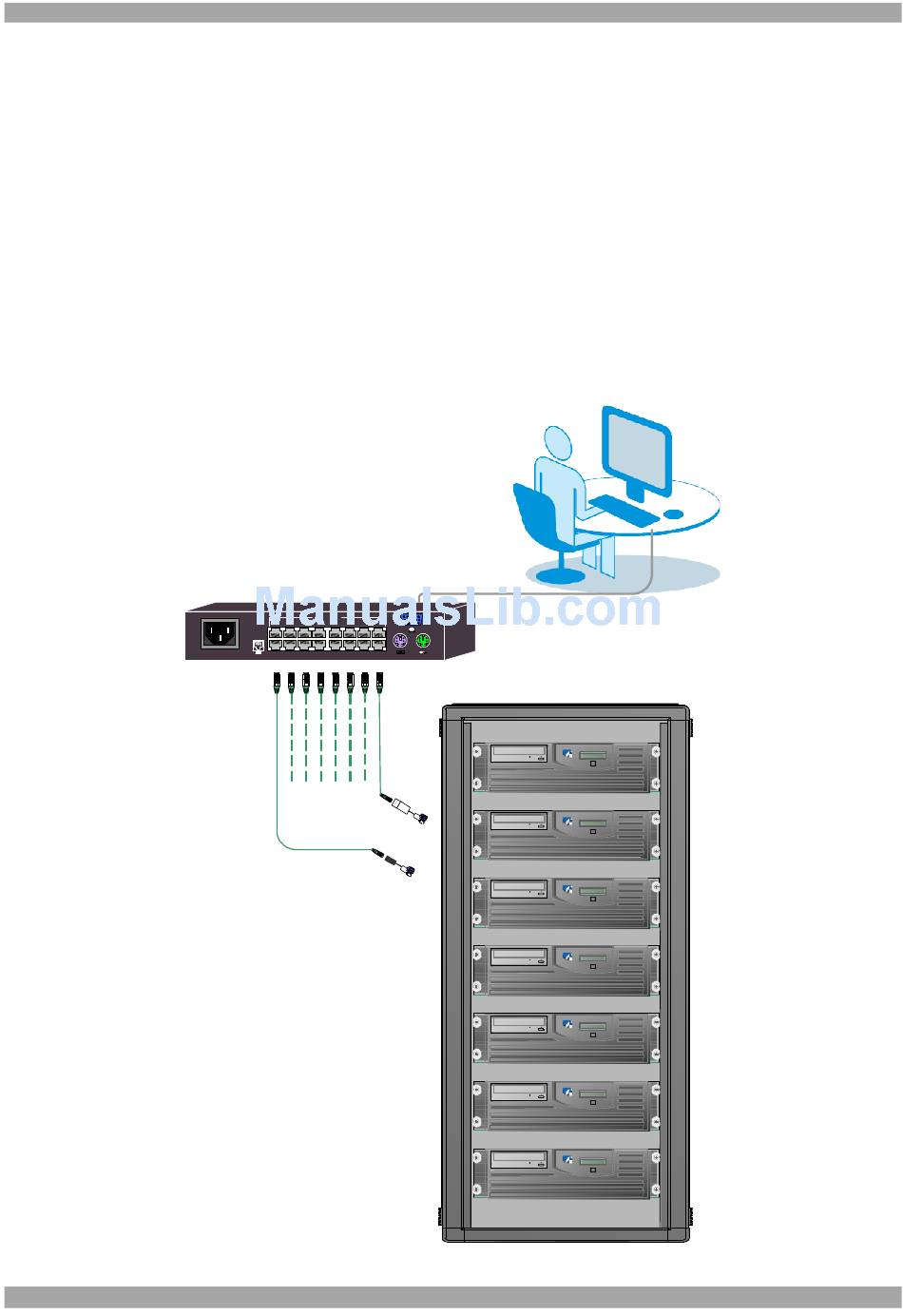

Figure 1 illustrates the basic configuration of the Smart CAT5 system.
SMART CAT5 SWITCH 116
www.minicom.com
COMPUTER
9
10
11
1 2
13
14
POWER
100-240 VAC 50/60 Hz
1
2
3
4
5
6
To servers
RoC/RICCs
Figure 1 Smart CAT5 system configuration
USER GUIDE
Workstation
15
16
7
8
6
h p w o r ks t a tio n b 2 6 0 0
h p w o r ks t a tio n b 2 6 0 0
h p w o r ks t a tio n b 2 6 0 0
h p w o r ks t a tio n b 2 6 0 0
h p w o r ks t a tio n b 2 6 0 0
h p w o r ks t a tio n b 2 6 0 0
h p w o r ks t a tio n b 2 6 0 0
