CAT5 cable to Smart
CAT5 Computer port

3.2 Connecting a RoC/RICC USB

The RoC/RICC USB supports Windows 98 SE and later, MAC, SUN, SGI and all
modern Linux distributions. The connections for RoC/RICC USB are exactly the
same. Figure 7 illustrates the RICC USB and its connections.
To connect the RoC/RICC USB:
1. Connect the Screen connector to the computer's Video port.
2. Connect the USB connector to the computer's USB port.
CAT5 cable to Smart CAT5
Computer port
SMART CAT5 SWITCH – 108/116
RICC PS/2

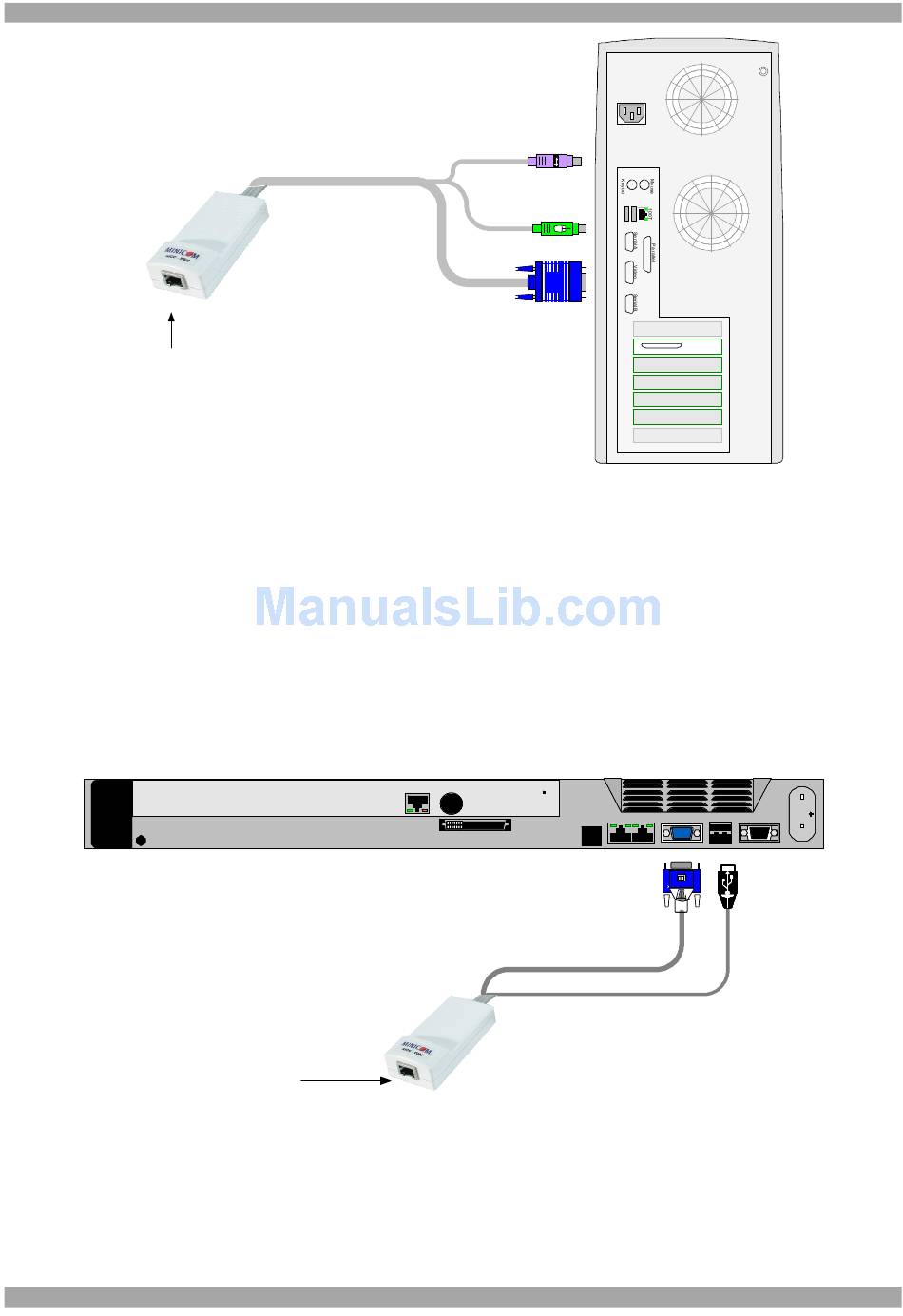

Figure 6 RICC PS/2 connections
RICC USB
Figure 7 RICC USB
To Keyboard port
To Mouse port
To Video port
To Video port
9
NetServer tc2100
SCSI
PCI 33Mx32b
PCI 33Mx32b
PCI 33Mx32b
PCI 33Mx32b
To USB Port
