3.3 Connecting a RICC SUN

Figure 8 illustrates the RICC SUN and its connections.
To connect the RICC SUN:
1. Connect the Screen connector to the computer's Video port.
2. Connect the Keyboard connector to the computer's Keyboard port.

3.4 Connecting the CAT5 cables

1. Connect one connector to the RoC/RICCs RJ45 port.
2. Connect the other connector to one of the Smart CAT5's Computer ports.
3. Follow the above 2 steps for each computer.

3.5 Connecting the KVM console

To connect a KVM console to the Smart CAT5:
1. Connect the monitor's connector to the Smart CAT5's Monitor port.
2. Connect the keyboard's connector to the Smart CAT5's Keyboard port.
3. Connect the mouse's connector to the Smart CAT5's Mouse port.

3.6 Connecting the power supply

1. Connect the Smart CAT5 to the power supply using the Power cable provided. Use
only power cord supplied with the unit.
2. Switch on the computers.
USER GUIDE
RICC SUN
CAT5 cable to Smart
CAT5 Computer port

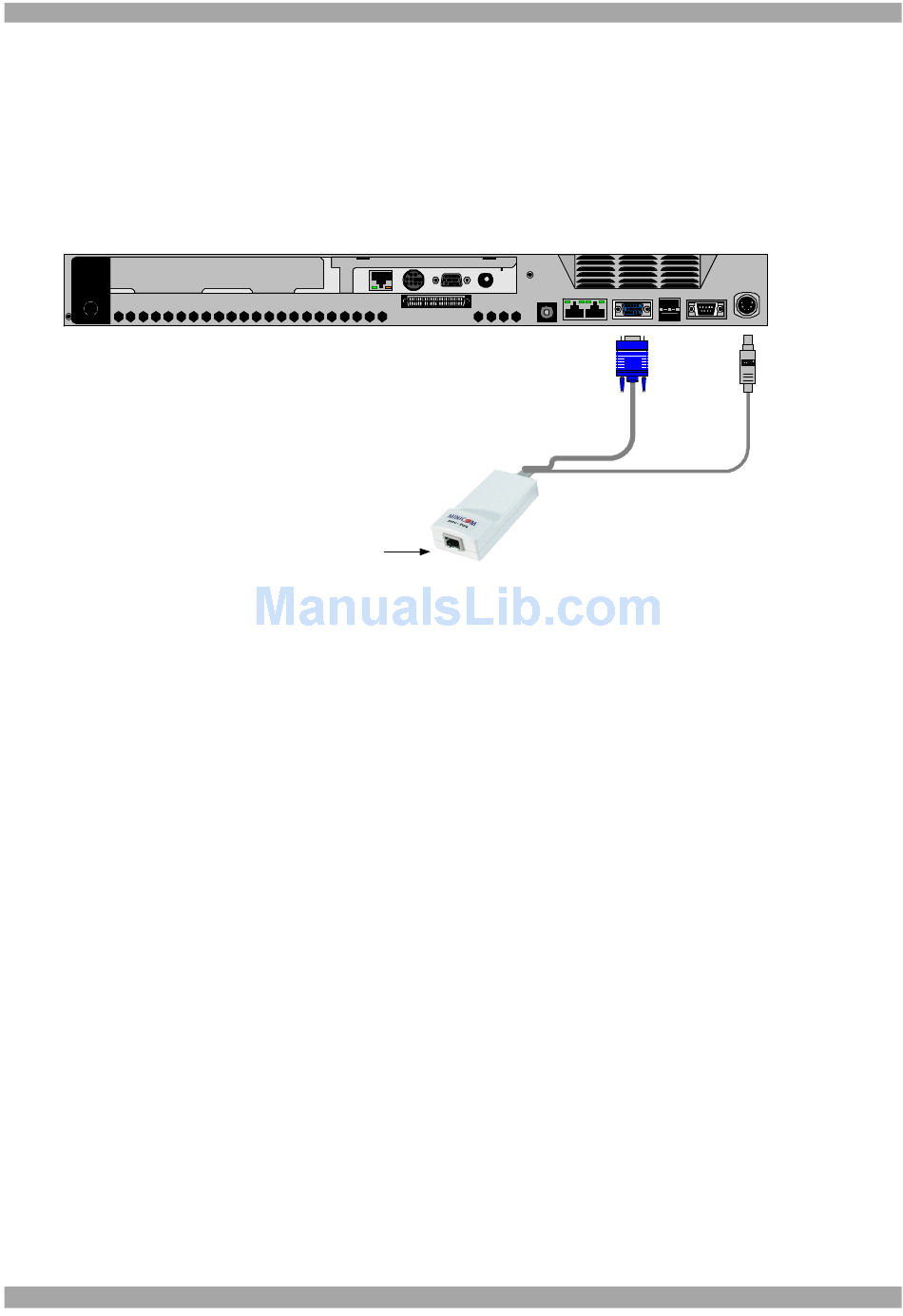

Figure 8 RICC SUN
