2.5 The Smart CAT5 models

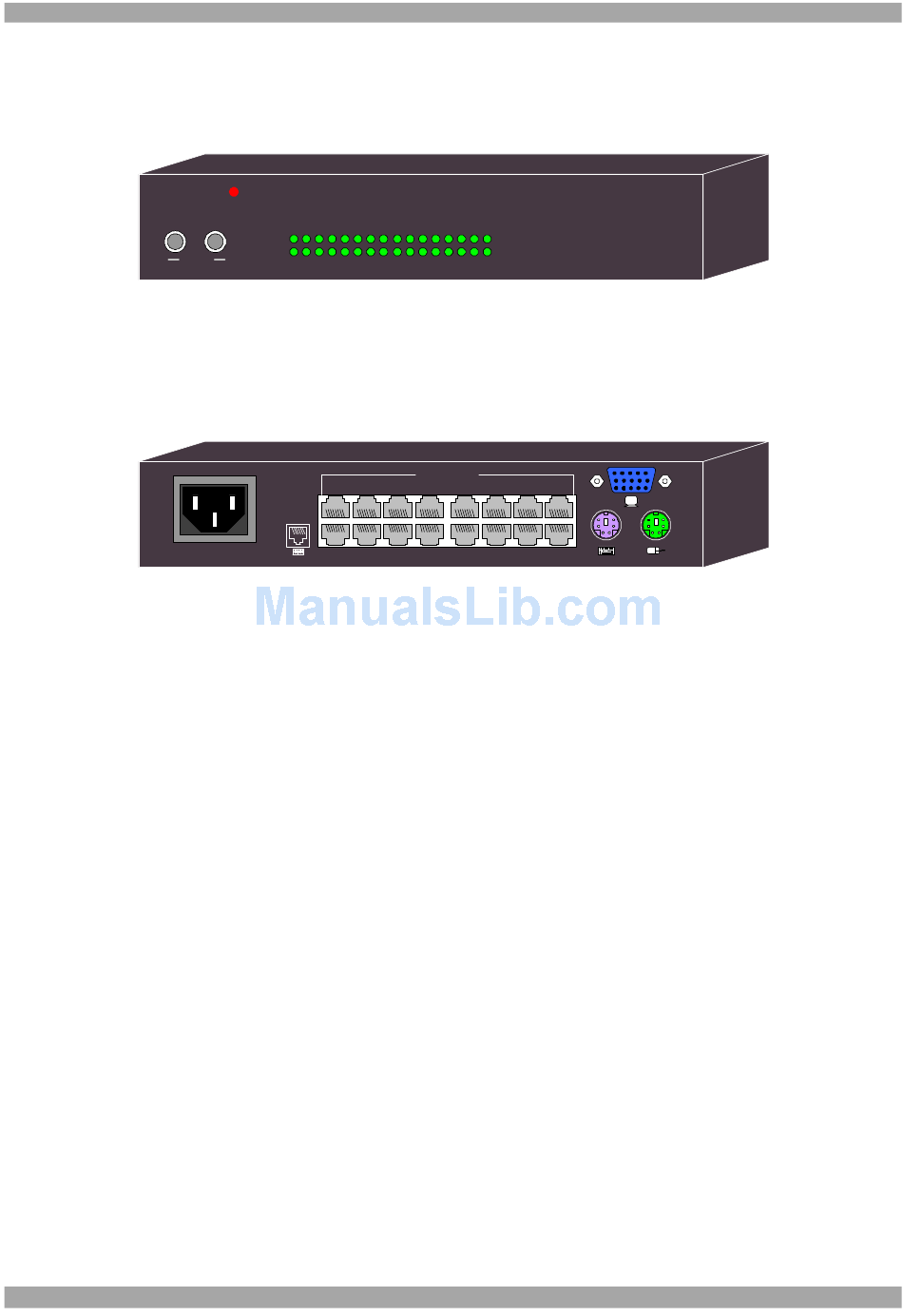

Figure 2 illustrates the front panel of the Smart CAT5 116 model. The 108 model is
the same but with only 8 columns of LEDs.
The figure below illustrates the rear panel of the Smart CAT5 116 unit. The 108
model is the same but with only 8 Computer ports.
www.minicom.com
100-240 VAC 50/60 Hz

2.6 Pre-installation guidelines

·
Switch off all computers
·
Place cables away from fluorescent lights, air conditioners, and machines that are
likely to generate electrical noise
·
Ensure that the maximum distance between each computer and the Smart CAT5,
does not exceed 10m/33ft
SMART CAT5 SWITCH – 108/116
MINICOM
Selected
CPU on
SELECT
1
2
3
4
5
Figure 2 Smart CAT5 116 front panel
9
POWER
1
Figure 3 Smart CAT5 116 rear panel
6
7
8
9
10 11 12 13 14 15 16
COMPUTER
10
11
12
13
14
15
2
3
4
5
6
7
SMART CAT5 SWITCH
16
7
8
