SPECIFICATIONS:

Transducer Type
Frequency Response
Polar Pattern
Output Impedance
Sensitivity
Capsule Technology
Off Axis Rejection
Maximum SPL
Power Requirements
Connector
Polarity
Housing / Finish
Weight
Length

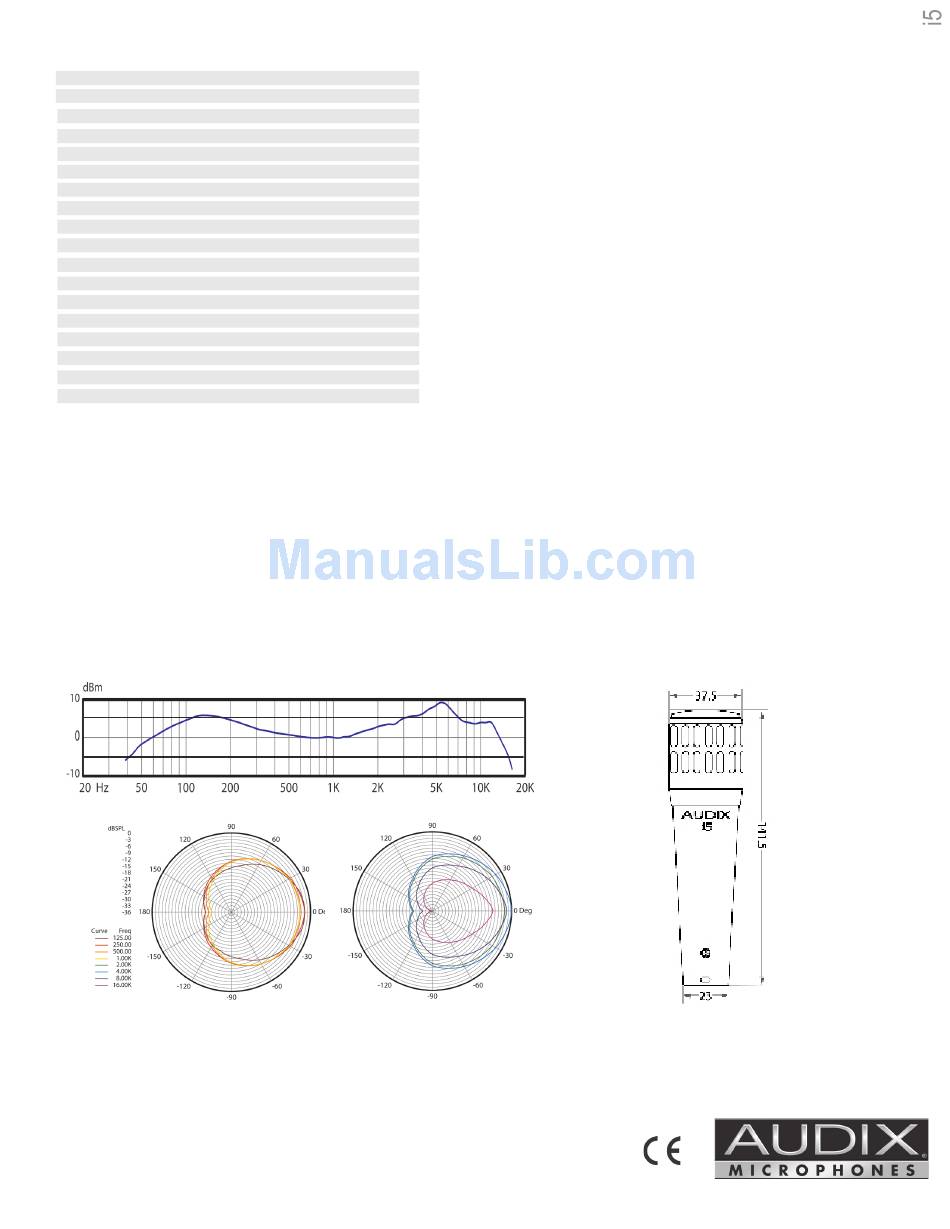

FREQUENCY / POLARS:
***All specifications subject to change without notice.
SERVICE AND WARRANTY:
CARE AND MAINTENANCE:
This microphone is under warranty for
The i5 is manufactured to exacting specs with
a period of 5 years from any and all
roadworthy construction. However, the capsule
manufacturing defects. Should your
is highly sensitive and should be handled with
microphone fail in any way, please con-
care. Avoid extreme temperatures and be sure
tact the Audix Service department at
to store your microphone in the pouch provided
503-682-6933. A Return Authorization
when not in use. Moisture of any kind can
number is required before returning
adversely affect the sound and performance of
any products
your microphone.
.
Dynamic
50 Hz - 16 kHz
Cardioid
150 ohms
1.5 mV / Pa @ 1k
VLM Type B
> 23 dB
≥ 140 dB
None
Switchcraft® male
XLR connector
Positive voltage on pin
2 relative to pin 3 of
output XLR connector
Die cast Zinc Alloy /
Black E-coat
183 g / 6.5 ounces
141.5 mm / 5.6 inches
ARCHITECTS AND ENGINEERS SPECIFICATIONS:
The microphone shall be of the dynamic type operating on the moving coil principle and the polar
pattern of the microphone shall be cardioid. The capsule shall be VLM Type B. The nominal out-
put impedance shall be equal to 150 ohms at 1 kHz. The microphone shall have a sensitivity of
1.5 mV / Pa at 1 kHz and a sound pressure level ≥140 dB. The microphone body and grill shall
be of die cast zinc alloy. The overall dimensions shall be 23 mm in diameter at the base, 37.5 mm
at the top, and 141.5 mm in length. The microphone shall be the Audix i5.
OPERATION:
The i5 is a low impedance microphone and should be plugged into a "mic level" input on your
console, mixer, or recording device. Please note that your microphone does not require phantom
power and will not be effected in any way by phantom power should it be running simultaneously
when the microphone is in operation. Avoid plugging or unplugging the microphone from the
PA system unless the channel is muted or the volume of the system turned down. Failure to do
so may result in a loud "popping" noise which could seriously damage the speakers in the PA
system.
USER TIPS:
The i5 has a tight (cardioid) pick-up pattern in order to help eliminate sound from other instruments
on stage from "bleeding" into the microphone. For this reason, it the i5 is exceptionally effective for
drums and percussion in be able to capture the sound of each component of the kit.
Snare: Start with the i5 about 2 inches above the head and aimed towards the center of the drum.
For more "rim" effect, the i5 can be aimed less towards the center and more towards the rim. It is
not uncommon for engineers to place the mic practically right on the drum head to achieve a very
tight, cracking sensation.
Toms, congas: Similar to snare. For tighter sound and more attack place, the mic closer to the
head. For more decay and overtones pull the mic further away from the head.
Guitar cabs: The i5 can be placed within 1-2 inches of the grill cover at a 90 degree angle pointing
directly into the speaker. If the mic is placed closer to the edge of the speaker, you will minimize
the higher frequencies and get a warmer, fatter tone. To capture more highs, move the mic closer
towards the center of the speaker, but avoid the middle of the speaker.
Horns: Place the mic within 1-3 inches of the bell, especially when on a stage with drums, bass,
guitar, etc. For jazz, classical, and music where the stage volume is lower, the mic can be placed
further away for a richer, fuller, sound.
Allow a distance of 2-3 feet between microphones to avoid phase cancellation issues.
*Further miking techniques may be found on our website at www.audixusa.com
DIMENSIONS (mm):
To register your
microphone, please visit
www.audixusa.com
www.audixusa.com Call: 503-682-6933 Fax: 503-682-7114
Audix Corporation 9400 SW Barber Street, Wilsonville, OR 97070
