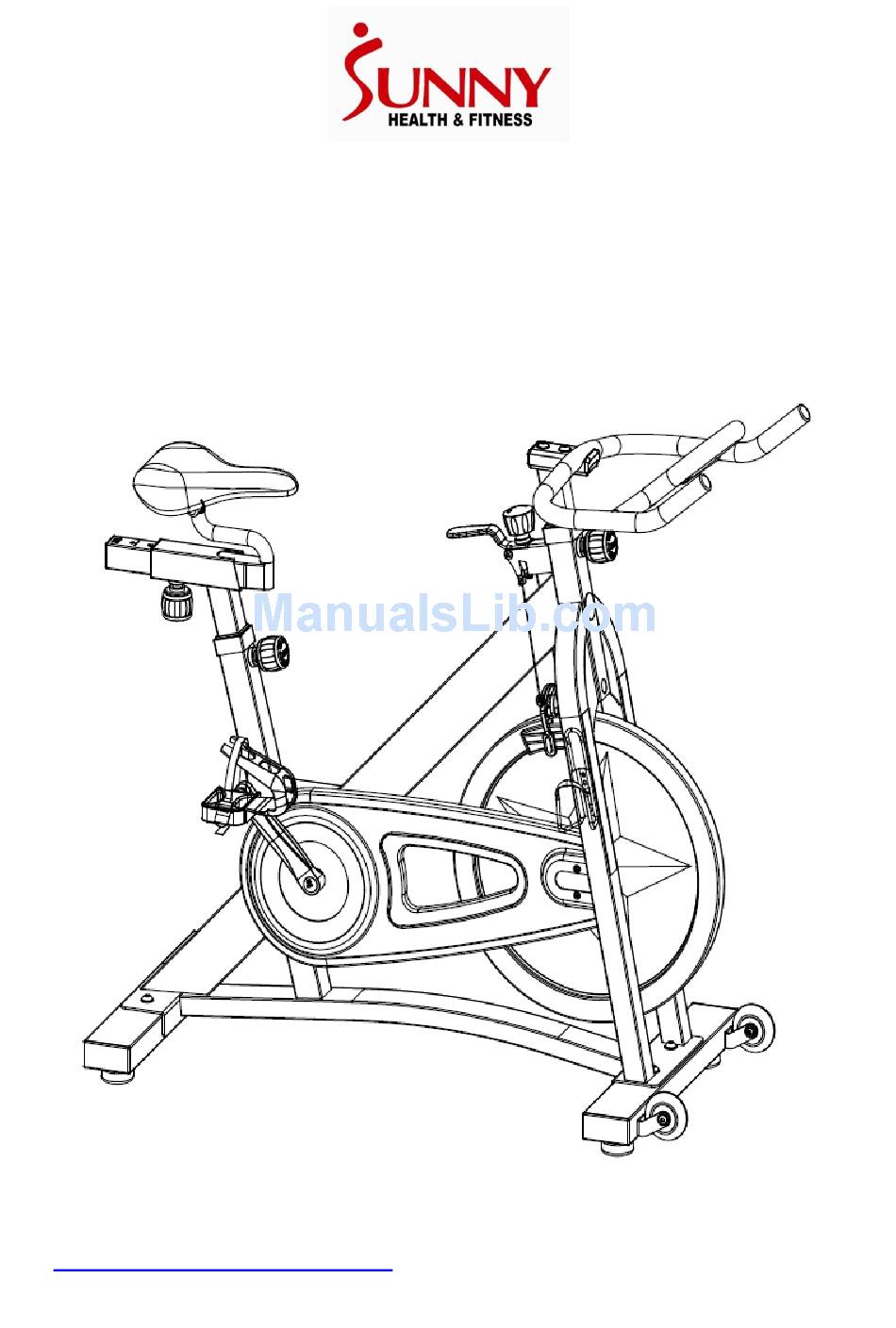

- Page 1 INDOOR CYCLING BIKE SF-B1401 USER MANUAL IMPORTANT! Read all instructions carefully before using this product. Retain owner’s manual for future reference. For customer service, please contact: support@sunnyhealthfitness.com...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be assured if the equipment is assembled, maintained, and used properly. -
Page 3: Exploded Drawing
EXPLODED DRAWING... -
Page 4: Parts List
PARTS LIST Description Description Main Frame Sleeve Ø18*Ø12*18.5L Seat Post Ø38*460*t1.5 Nylon Nut M8 Seat Slider 38*38*270*T1.5 Brake Pad Handlebar Post Ø38*270*1.5T Clamp Brake Holder T4.0*M10*P1.25 Handlebar Ø28*998*t1.5 Flat Washer Ø10.2-Ø25*T1.5 Cap Nut M12*1.0 Bearing 6001 (Black plastic rind）ABEC-5 Rear Stabilizer 40*80*1.5T*500L Bearing 6004 (Black plastic rind) ABEC-5 Front Stabilizer 40*80*1.5T*500L Brake Handle... -
Page 5: Hardware Package
HARDWARE PACKAGE #34 (M10*25*S6) 4PCS #33 (d10*Φ20*2.0) 4PCS #66 (M10*25*S6) 2PCS #67 (d10*Φ20*2.0) 2PCS #75 S13-S15 1PC #74 S6 1PC #76 S13-S15-S17 1PC... -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS STEP 1: Unscrew the Flat Roundhead Screws (No. 70) from the Main Frame (No. 1) with Allen Wrench (No. 74) then remove the Front & Rear Packing Bases (No. 68 & No. 69). NOTE: You may discard the Front & Rear Packing Bases (No. 68 & No. 69) or save them for future packaging or transportation. - Page 7 ASSEMBLY INSTRUCTIONS WARNING! Read these instructions carefully as improper assembly of this step may cause permanent damage to your equipment. STEP 3: Before you begin, immobilize both crank arms by turning the crank arm all the way to the right (clockwise). Right Pedal: Align the Right Pedal (No.
- Page 8 ASSEMBLY INSTRUCTIONS STEP 4: Loosen the [handlebar adjustment] Knob (No. 23) to slide the Handlebar Post (No. 4) into the post housing on the Main Frame (No. 1). Once you’ve located the desired height, retighten the Knob (No. 23). STEP 5: Attach the Handlebar (No.
- Page 9 ASSEMBLY INSTRUCTIONS STEP 6: Loosen the [seat height adjustment] Knob (No. 23) to slide the Seat Post (No. 2) into the seat post housing on the Main Frame (No. 1). Once you’ve located the desired seat height, tighten and secure the Knob (No. 23). STEP 7: Loosen the [seat adjustment] Knob (No.
- Page 10 MAINTANENCE & ADJUSTMENTS Ensure that all parts are in good working condition and installed properly. It is advised to periodically inspect your equipment for any defective or worn parts. If you should find any defective parts, do not continue using your equipment until the issue has been rectified.
