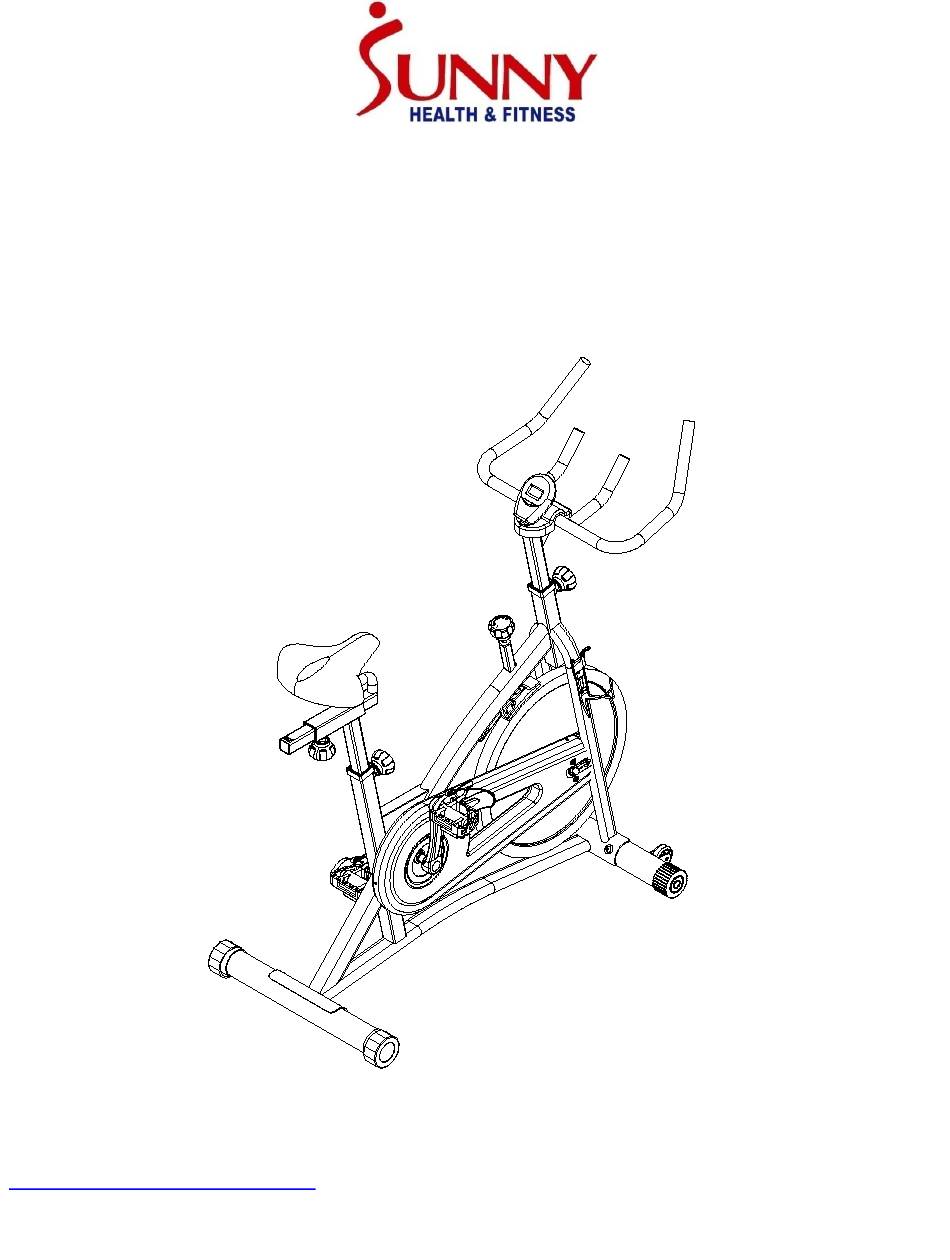

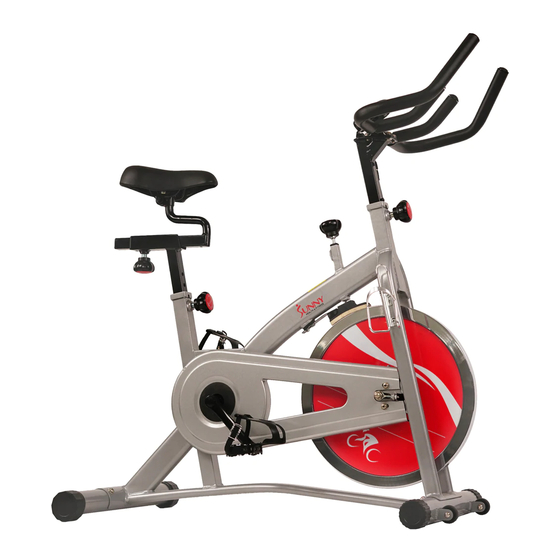

- Page 1 SUNNY INDOOR CYCLING BIKE SF-B1421 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions. -
Page 3: Exploded Drawing
EXPLODED DRAWING 1... - Page 4 EXPLODED DRAWING 2...
-
Page 5: Parts List
PARTS LIST Description Spec. Qty. Description Spec. Qty. Computer M6*H6*S10 Φ23*3*480 Foam Grip M6*H5*S10 Φ25*16 End Cap Adjusting Screw M6*50*Φ12*5 Φ23*3*190 Φ22*Φ12.5*6 Foam Grip Spacer Handlebar M12*1*H6*S19 Handlebar Φ22*16 125*80*42 End Cap Cover Φ18*Φ12.2*4 Washer d8*16*1.5 Spacer Screw M8*16*S6 Bearing 6001-2RS Spring Washer Screw... -
Page 6: Hardware Package
Description Spec. Qty. Description Spec. Qty. Brake Spring t1.2*23*122 Inner Chain Cover Board Φ25*7 Crank Cap Chain ½” *1/8” *104 M10*1.25*H7.5* Outer Chain Cover 72L/ Left & Right Crank Cover 100*40 Crank Middle Axle Φ Φ50*Φ32*33 Washer 10*1 Cover C Clip Screw ST4.2*13*Φ8 Bearing... -
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTIONS STEP 1: Φ Attach the Front and Rear Stabilizers (No. 26 and No. 29) to the Main Frame (No. 31) using 4 Screws (No. 8) and 4 Arc Washers (No. 27). Tighten and secure with Allen Wrench (No. 32). Attach the Seat (No. - Page 8 STEP 3: Loosen and pull out the Adjustment Knob (No. 13). Insert the Handlebar Post (No. 11) into the sleeve located on the front of the Main Frame (No. 31). Adjust the Handlebar Post (No. 11) to the desired position, re-insert and tighten the Adjustment Knob (No.
- Page 9 ADJUSTMENTS & USAGE GUIDE ADJUSTING THE HEIGHT Loosen and pull out the [seat height] Adjustment Knob (No. 13) to adjust the height of the saddle. You may also slide the seat forward or backwards by loosening and pulling out the [seat] Adjustment Knob (No. 13) on the Seat Slider (No.
-
Page 10: Exercise Computer
EXERCISE COMPUTER SPECIFICATIONS: TIME------------------------------------------- 00:00-99:59 MIN: SEC SPEED---------------------------------------- 0.0-999.9 ML/H DISTANCE----------------------------------- 0.00-99.99 ML CALORIES----------------------------------- 0.0-999.9 KCAL FUNCTION KEY: MODE: Press MODE repeatedly to select the desired display value (Time, Speed, Distance, Calories, Scan). CLEAR: To reset a single value press CLEAR once. To reset all values Press and hold CLEAR for 3 seconds. -
Page 11: Maintenance Instructions
MAINTENANCE INSTRUCTIONS This is general information for daily, weekly and monthly maintenance to be performed on your bike. DAILY MAINTENANCE MONTHLY MAINTENANCE After each exercise session, wipe down all the 1. Check if all hardware is secure, such as: equipment: seat, frame, handlebars. Pay water bottle holder, flywheel nuts, belt/chain special attention to the seat post, handlebar guard bolts, brake caliper lock nuts and brake...
