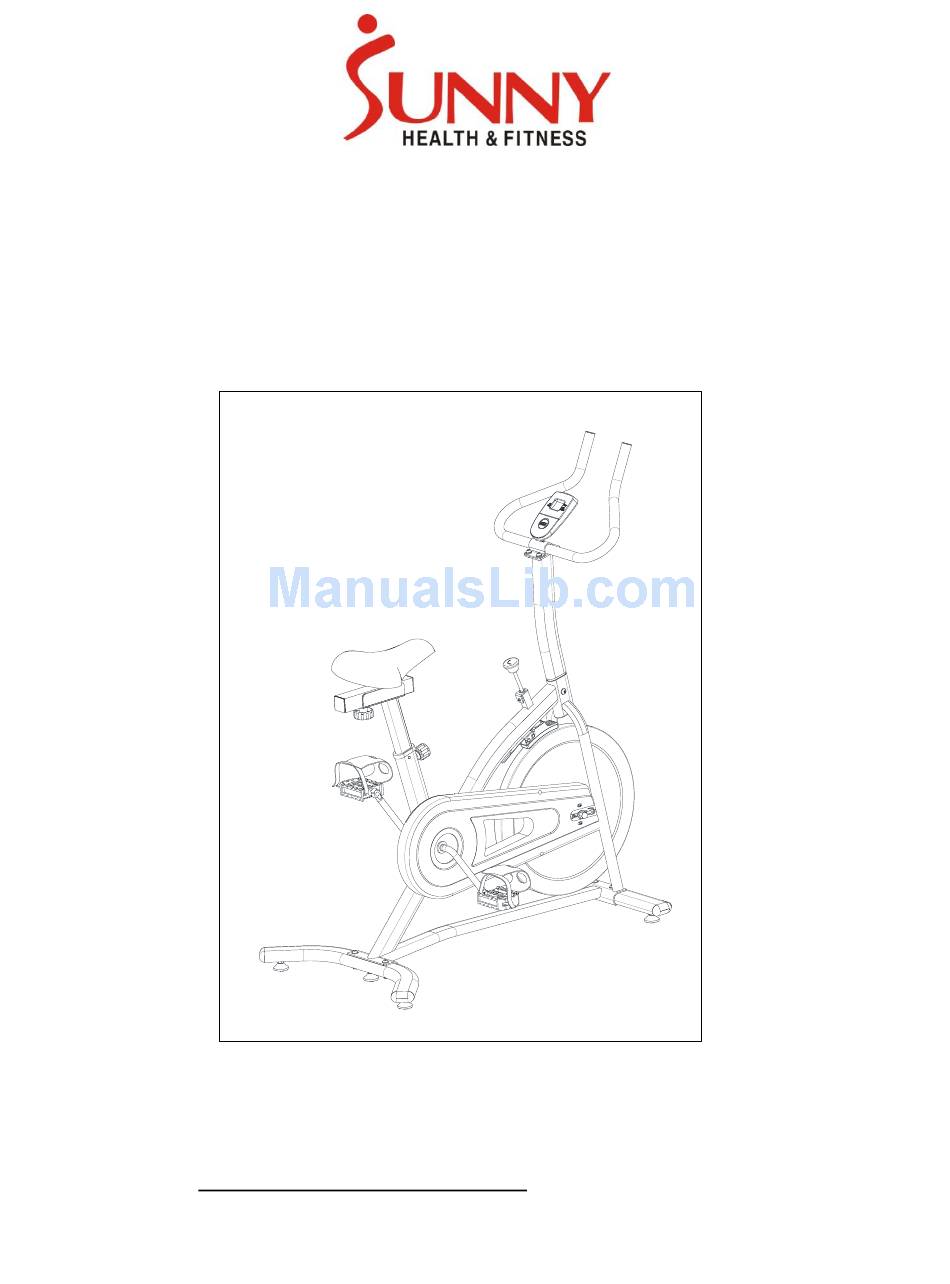

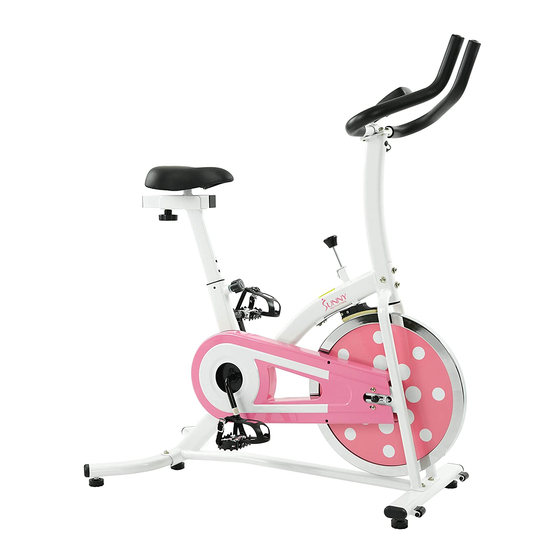

- Page 1 PINK INDOOR CYCLING BIKE P8100 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. -
Page 3: Exploded Diagram
EXPLODED DIAGRAM HARDWARE PACKAGE... -
Page 4: Parts List
PARTS LIST Description Spec. Description Spec. Qty. Main Frame Hexagon Nut 37/8"-LH Rear Stabilizer Tension Knob L=175 Front Stabilizer Plastic Sleeve L=175 Seat Post Limit Block GB/T 5780-2000 Seat Slider Bolt M6*8 φ16*φ8.2*2 Front Post Gasket Handlebar Square Nut 16X16X8 M8 φ1.0X55 Bushing Spring... - Page 5 Description Spec. Qty. Description Spec. Qty. GB/845-85 Screw Felt Pad 110*30*10 ST3.5X10 F φ16*φ10.1*4 Spacer Inductor GB/T 6177.2-2000 Hex Flange Nut Sensor Wire L=520 M10*1.0 φ44.5 L-shaped Bracket Q235 Bearing 4GB/T 15856.1- φ55.5*16 Screw Bearing Housing 2002 ST4.2X13 Inner Chain Cover 2653.5*264.5*24 Lock Nut 67/8"-LH...
-
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS STEP 1: #18 M8*40 4pcs Remove preassembled 2 Flat Washers (No. 19) #19 GB/T 95-2002 8 4pcs and preassembled 2 Bolts (No. 18) from Front Stabilizer (No. 3). #86 6＃(86X35) 1pc Attach the Front Stabilizer (No. 3) to the Main Frame (No. - Page 7 STEP 3: #28 GB/T 70.2-2000 M8*15 8pcs Connect Sensor Wire (No. 76) and Sensor Wire #27 GB/T 859-1987 8 4pcs (No. 77). #19 GB/T 95-2002 8 6pcs Remove preassembled 4 Bolts (No. 28), 2 Arc #29 φ 8 2pcs Washers (No. 29) and 2 Flat Washers (No. 19) from the Front Post (No.
-
Page 8: Exercise Computer
EXERCISE COMPUTER SPECIFICATIONS: TIME -------------------------------------------------------00:00~99:59 MIN: SEC SPEED ----------------------------------------------------0.0~999.9 KM/H OR ML/H DISTANCE -----------------------------------------------0.00~99.99 KM OR ML CALORIES -----------------------------------------------0.0~999.9 KCAL KEY FUNCTIONS: MODE: Press to select function. (Time, Speed, Distance, Calories). Press and hold the mode button for three seconds to reset time, distance and calories. OPERATION FUNCTIONS: AUTO ON/OFF: If the wheel is put into motion, or the mode button is pressed the computer will become active,... -
Page 9: Adjustment Guide
ADJUSTMENT GUIDE ADJUSTING THE BALANCE: In order to achieve a smooth and comfortable workout during use, you must ensure that the bike is stable. If during use you notice that the bike is unbalanced you can adjust the foot pads located beneath the front and rear stabilizers. -
Page 10: Maintenance Instructions
MAINTENANCE INSTRUCTIONS This is general information for daily, weekly and monthly maintenance to be performed on your bike. DAILY MAINTENANCE MONTHLY MAINTENANCE After each exercise session, wipe down all 1. Check if all hardware is secure, such as: water the equipment: seat, frame, handlebars. Pay bottle holder, flywheel nuts, belt/chain guard special attention to the seat post, handlebar bolts, brake caliper lock nuts and brake caliper...
