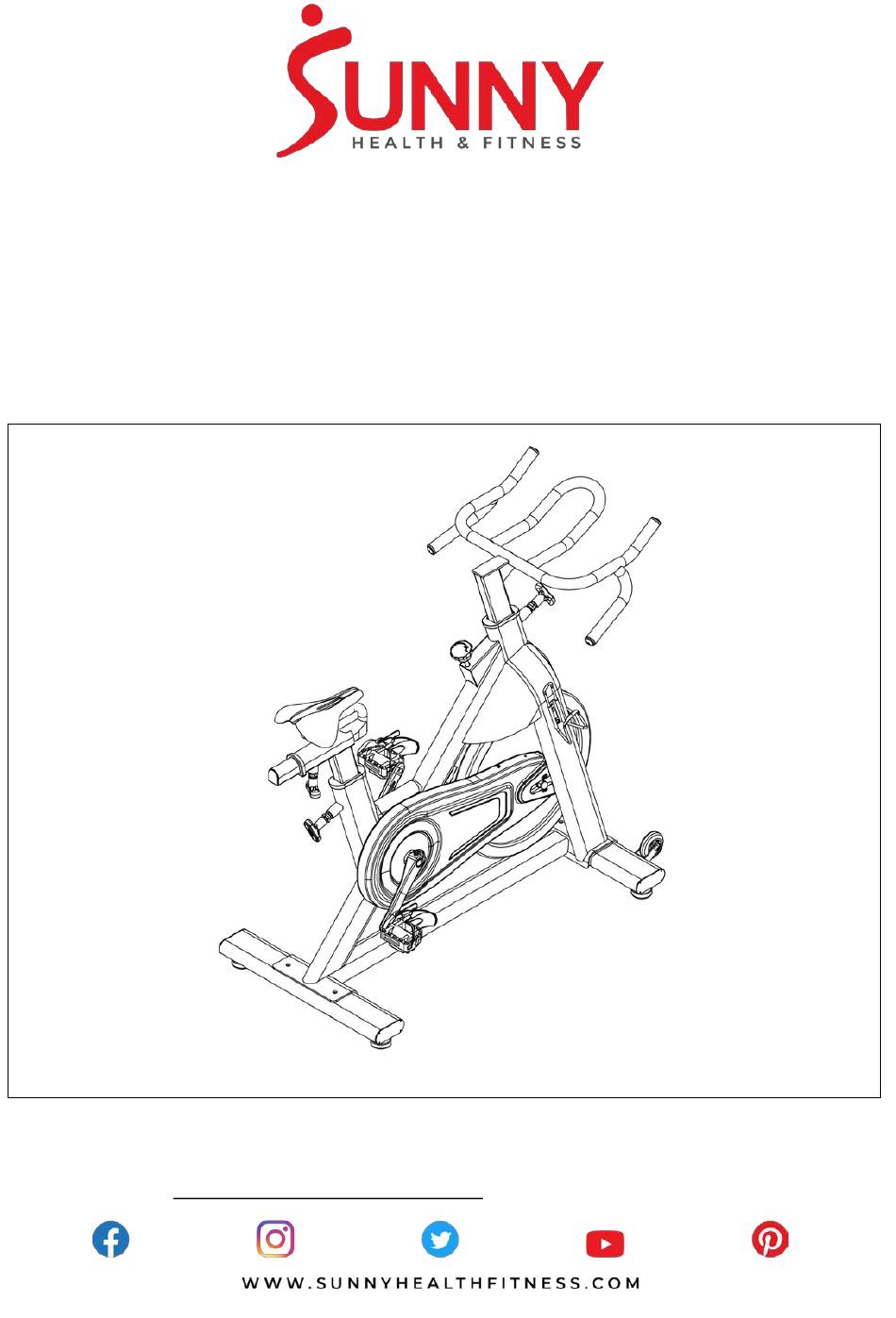

- Page 1 COMMERCIAL INDOOR CYCLING BIKE SF-B1516 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. -
Page 3: Exploded Diagram
EXPLODED DIAGRAM 1... -
Page 4: Hardware Package
EXPLODED DIAGRAM 2 HARDWARE PACKAGE... -
Page 5: Parts List
PARTS LIST Description Spec. QTY. Description Spec. QTY. Main Frame End Cap Front Stabilizer Cover for Middle Axle Rear Stabilizer Transportation Wheel Seat Post Foot Pad Seat Slider Tube Tension Control Knob Handlebar Cow Leather Pad T5*25*138 Adjusting Screw EVA Pad 22*75 Shipping Front Tube Bushing... - Page 6 Description Spec. QTY. Description Spec. QTY. M8*H7.5*S13 D28L/R Nylon Nut 9/16"-20*H8*S19 M8*H5.5*S14 Bolt M8*16 *S6 Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: The model number (found on cover of manual) ...
- Page 7 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 1: Unscrew the 4 Bolts (No. D04) with Allen Wrench (No. B17) and remove the 4 Flat Washers (No.
- Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 3: WARNING! Read instructions carefully improper assembly cause permanent damage to your bike. Remove the preassembled 2 Bolts (No. D01) and 2 Flat Washers (No.
- Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 4: Loosen and pull out the [seat] T Shape Knob 2 (No. C15). Insert the Seat Post (No. A04) into the tube located on the back of the Main Frame (No.
- Page 10 ADJUSTMENTS GUIDE ADJUSTING THE HEIGHT AND BALANCE In order to achieve a smooth and comfortable ride, you must ensure that the stability of the bike is secured. If you notice that the bike is unbalanced during use, you should adjust the Foot Pad (No.
- Page 11 PEDAL STRAP ADJUSTMENT Your feet should be secured in the toe clips during exercise. Place your feet as far forward into the toe clips as you can. With your feet in place, turn the crank to bring one foot to within arm’s reach, grasp the pedal strap and pull it upward to tighten the toe clip cage.
- Page 12 REMOVING THE CRANK ARM TO REMOVE THE CRANK ARM Unscrew 2 Bolts (No. D29) counter-clockwise with the Allen Wrench (No. B17). Remove the 2 Bolts (No. D29) and pull out the Left and Right Crank Arms (No. B03L/R). NOTE: The hexagonal hole on the middle axle and the crank arm should be aligned when assembling.
- Page 13 SPD TECHNICAL SERVICE INSTRUCTIONS Caution! Before use, read these instructions carefully. Practice engaging and disengaging from the pedals several times in a stationary position before riding. Before using, lubricate the concave area of the clip. Keep the cleat and pedal clean to ensure proper usage. ...
-
Page 14: Maintenance Instructions
MAINTENANCE INSTRUCTIONS This is general information for daily, weekly and monthly maintenance to be performed on your bike. DAILY MAINTENANCE MONTHLY MAINTENANCE After each exercise session, wipe down all the 1. Check if all hardware is secure, such as: water equipment: seat, frame, and handlebars.
