  • Page 1 SF 2-A / SFD 2-A Operating instructions Mode d’emploi Manual de instrucciones Manual de instruções Printed: 24.03.2014 | Doc-Nr: PUB / 5174908 / 000 / 00...
  • Page 2 This Product is Certified Ce produit est homologué Producto homologado por Este produto está registrado C      US Printed: 24.03.2014 | Doc-Nr: PUB / 5174908 / 000 / 00...
  • Page 3 Printed: 24.03.2014 | Doc-Nr: PUB / 5174908 / 000 / 00...

  • Page 4: Table Of Contents

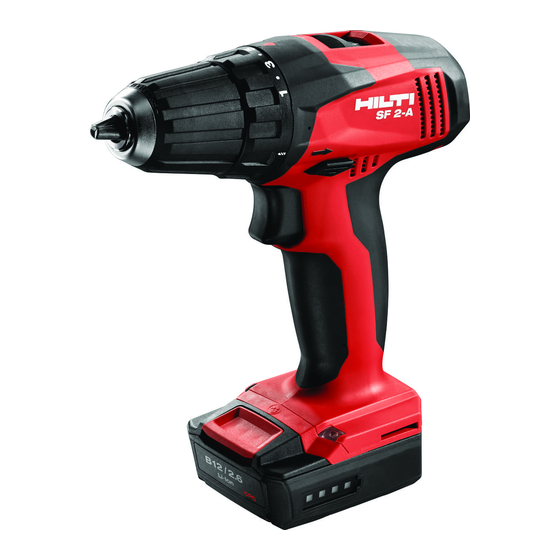

    Keep these pages open while studying the operating instructions. In these operating instructions, the designation “power tool” always refers to the SF 2-A or SFD 2-A cordless drill / driver, with battery fitted. Parts, operating controls and indicators Keyless chuck (SF 2-A)

  • Page 5: General Information

    Grip Lamp Belt hook (optional) Charging status indicator § Release button Control switch (with electronic speed control) 1 General information 1.1 Safety notices and their meaning DANGER Draws attention to imminent danger that will lead to serious bodily injury or fatality.
  • Page 6 Make a note of this data in your operating instructions and always refer to it when making an enquiry to your Hilti representative or service department. Type: Generation: 01 Serial no.:...

  • Page 7: Description

    The working environment may be as follows: construction site, workshop, renovation, conversion or new construction. 2.2 Chuck The SF 2-A has a keyless chuck and the SFD 2-A features a hex. socket drive. 2.3 Switches Control switch with electronic speed control...

  • Page 8: Insert Tools, Accessories

    2.6 The items supplied include (cardboard box versions): 1 Power tool 1 Operating instructions 2.7 Additional items required for operating the tool: B 12/2.6 Li-Ion battery and C4⁄12­50 charger. 2.8 Li­ion battery charge status display LEDs light constantly LEDs blink Charge status C LED 1, 2, 3, 4 C ≧...

  • Page 9: Technical Data

    ∅ 0.8…6 mm (0.03…0.24") Wood screws (max. length 80 mm ∅ 3…6 mm (0.12…0.24") (3.1")) 4 Technical data Right of technical changes reserved. Power tool SF 2-A SFD 2-A Rated voltage (DC 10.8 V 10.8 V voltage) Weight 1.1 kg (2.43 lb) 1.0 kg (2.2 lb)

  • Page 10: Safety Instructions

    5 Safety instructions NOTE The safety rules in section 5.1 contain all general safety rules for electric tools which, in accordance with the applicable standards, must be listed in the operating instructions. Accordingly, some of the rules listed may not be relevant to this tool.
  • Page 11 e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
  • Page 12 c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
  • Page 13 5.2 Drill safety warnings a) Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss. b) Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury. c) Hold power tools by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring.
  • Page 14 Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or to remain on your skin may promote absorption of harmful chemicals. 5.3.2 Power tool use and care a) Secure the workpiece. Use clamps or a vice to secure the work- piece.
  • Page 15 Contact Hilti Service after the battery has been allowed to cool. 5.3.4 Electrical safety Before beginning work, check the working area (e.g. using a metal detector) to ensure that no concealed electric cables or gas and water pipes are present.

  • Page 16: Before Use

    6.2 Charging the battery DANGER Use only the Hilti batteries and Hilti chargers listed under “Accessories”. 6.2.1 Charging a new battery for the first time Charge the battery fully before using it for the first time.
  • Page 17 Use only the Hilti batteries approved for use with this power tool. CAUTION Before inserting the battery in the tool, check to ensure that the battery terminals and the contacts in the tool are free from foreign objects. 1. Push the battery into the power tool from the front, as far as it will go, and until it is heard to engage with a click.

  • Page 18: Operation

    NOTE The gear selector switch can be used to select the speed range. Speed range for the SF 2-A/SFD 2-A with a fully charged battery: 1st gear: 0­400/min, 2nd gear: 0­1500/min. NOTE The gear selector switch can be operated only when the motor is at a standstill.
  • Page 19 Check that the connection end of the insert tool is clean. Clean the connection end if necessary. 7.4.1 Changing bits with the SF 2-A NOTE The power tool is equipped with a keyless chuck that accepts various accessories such as drill bits, screwdriving bits and bit holders.

  • Page 20: Care And Maintenance

    2. Push the locking sleeve on the hex. socket forward and hold it securely in this position. 3. Push the bit into the hex. socket as far as it will go and then release the locking sleeve. 4. Check that the drill bit is held securely. 7.4.2.2 Removing the tool 1.
  • Page 21 NOTE If use continues, further battery discharge will be stopped automatically before the battery cells suffer damage. Charge the battery using an approved charger from Hilti designed for use with Li-ion batteries. NOTE –...

  • Page 22: Troubleshooting

    Do not operate the power tool if parts are damaged or when the controls do not function faultlessly. If necessary, the power tool should be repaired by Hilti Service. 8.5 Checking the power tool after care and maintenance After carrying out care and maintenance work on the power tool, check that all protective and safety devices are fitted and that they function faultlessly.

  • Page 23: Disposal

    Dispose of the batteries in accordance with national regulations or return them to Hilti. Most of the materials from which Hilti power tools or appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, Hilti has already made arrangements for taking back your old power tools or appliances for recycling.

  • Page 24: Manufacturer's Warranty - Tools

    11 Manufacturer’s warranty - tools Please contact your local Hilti representative if you have questions about the warranty conditions. Printed: 24.03.2014 | Doc-Nr: PUB / 5174908 / 000 / 00...
  • Page 25 Tel.: +423 / 234 21 11 Fax: +423 / 234 29 65 www.hilti.com Hilti = registered trademark of Hilti Corp., Schaan W 4334 | 0314 | 00-Pos. 3 | 1 Printed in China © 2014 Right of technical and programme changes reserved S. E. & O.
