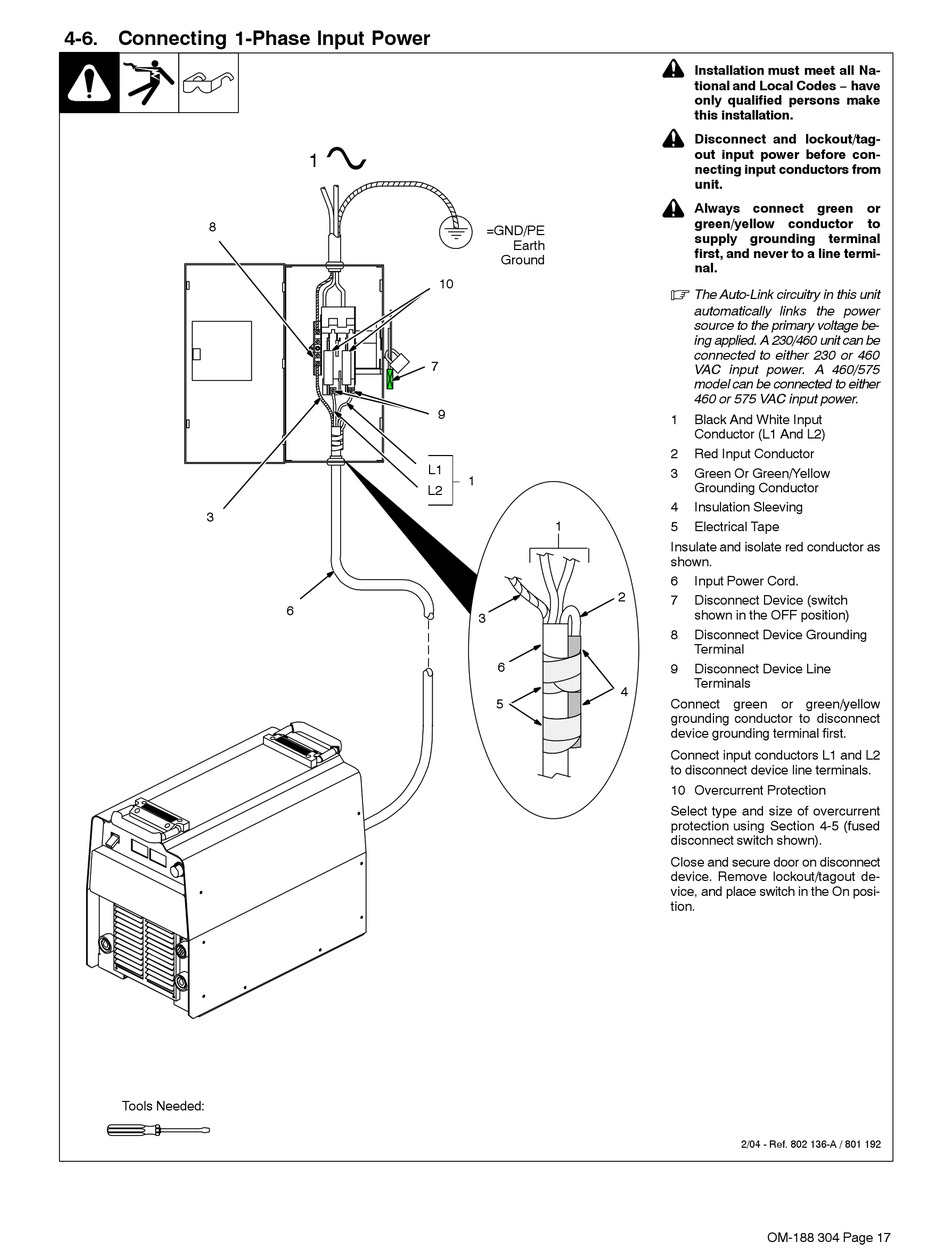

4-6. Connecting 1-Phase Input Power

8
3
Tools Needed:
1
10
7
9
L1
L2
6
=GND/PE
Earth
Ground
1
1
2
3
6
4
5
!
Installation must meet all Na-
tional and Local Codes − have
only qualified persons make
this installation.
!
Disconnect and lockout/tag-
out input power before con-
necting input conductors from
unit.
!
Always connect green or
green/yellow conductor
supply grounding terminal
first, and never to a line termi-
nal.
.
The Auto-Link circuitry in this unit
automatically links the power
source to the primary voltage be-
ing applied. A 230/460 unit can be
connected to either 230 or 460
VAC input power. A 460/575
model can be connected to either
460 or 575 VAC input power.
1 Black And White Input
Conductor (L1 And L2)
2 Red Input Conductor
3 Green Or Green/Yellow
Grounding Conductor
4 Insulation Sleeving
5 Electrical Tape
Insulate and isolate red conductor as
shown.
6 Input Power Cord.
7 Disconnect Device (switch
shown in the OFF position)
8 Disconnect Device Grounding
Terminal
9 Disconnect Device Line
Terminals
Connect green or green/yellow
grounding conductor to disconnect
device grounding terminal first.
Connect input conductors L1 and L2
to disconnect device line terminals.
10 Overcurrent Protection
Select type and size of overcurrent
protection using Section 4-5 (fused
disconnect switch shown).
Close and secure door on disconnect
device. Remove lockout/tagout de-
vice, and place switch in the On posi-
tion.
2/04 - Ref. 802 136-A / 801 192
OM-188 304 Page 17
